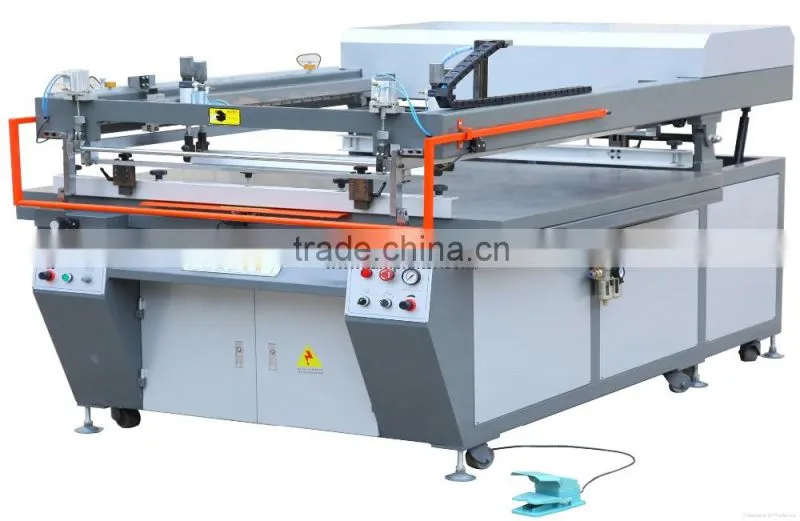

TM-120140 Oblique Arm banner Screen Printer
Video link:
http://youtu.be/d0zJxbDc-Js
Technical parameter:
|
Type |
TM-120140 |
|
Worktable area (mm) |
1400X1600 |
|
Max printing area (mm) |
1200X1400 |
|
Max screen fame size (mm) |
1550X1700 |
|
Thickness of materials (mm) |
20 |
|
Printing speed |
400~900pcs/h |
|
Air pressure (Mpa) |
0.4~0.8 |
|
Air consumption (L/pcs) |
13 |
|
Power |
5.5KW |
|
Max worktable height (mm) |
880 |
|
Dimension (LXWXH) |
1.4*2.54*1.78m |
|
Weight |
660kg |
|
Rated voltage |
220V/50Hz |
Application:
Flat Screen Printer of this series is widely used in the packaging industry (cigarette packaging, wine packaging, gift packaging and other card paper printing) trademark, calendar, oil painting, computer keyboards, paintings, iron-on transfers, credit cards, stickers, printing; Also suitable for the printing of the electronics industry.
Features:
(1). Printing machine is driven by motor drive, which is belt drive, sensitive, balanced speed, speed adjustable.
(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.
(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.
(4). Vacuum adsorption fixed printing pieces.
(5). The printing plate has up and down, left and right, before and after tuning device, which makes it works accurate and convenient on board.
(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.
(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.
Adventage:
It is the oblique arm type screen printing press. Pneumatic control of the front and back scrapers;
Induced draft printing platform; The second printing needn't to raise the arm. The printing
Process is stable and with exact contraposition. There are shields above the operation panel to
Protect the operator from the injuries effectively. The maximum dimension is 700mm× 1000mm
And the plate size is 800mm× 1100mm. The thickness of the printing is 0.1-20mm.
The speed is 400-1000 times per hour. It is satisfied with the needs of the most products.
The printing materials are the dissolvent oil or ink and can use with different oils which can be
Dried by ultraviolet light, infrared or natural. The machine's adaptability is very strong.
There are many tiny aspiration holes in the bedplate. The printing materials can adsorb well in
The bedplate that can reach high precision.
The adjustment of it is very convenient, rapid. It takes just a few minutes to complete fixing
Block, orientation, adjusting of the front and back scraper.
Additional Info.
Payment terms: T/T L/C Western Union
Packing: Plywood case/ wooden case as required
Lead time: 7 days after confirmed payment
Sku: 10sets
Standard certification: CE
Minimum Order: 1 set
Price term: CIF/FOB/CFR/FCA/EXW
