Help CenterTM-6090C 600X900 Vacuum PCB Printing Machine Vertical Silk Screen Printer
Related Products
-
TM-1200E 310mm Pneumatic Flat Cylinder Bucket Screen Printing MachineUS$ 6,000 - 7,000MOQ: 1 Set -
TM-700E Pneumatic Flat/ Curved Surface Printing Cylinder Screen PrinterUS$ 4,539 - 5,000MOQ: 1 Set
-
TM-120140 Oblique Arm Banner Screen PrinterUS$ 11,230 - 11,530MOQ: 1 Set
-
TM-400E Dia 125MM Can Screen Printing MachineUS$ 2,825 - 3,325MOQ: 1 Set
-
TMP-90120 Oblique Arm Type Flat Screen Printer for Large Formats PrintingUS$ 1 - 4,370MOQ: 1 Set

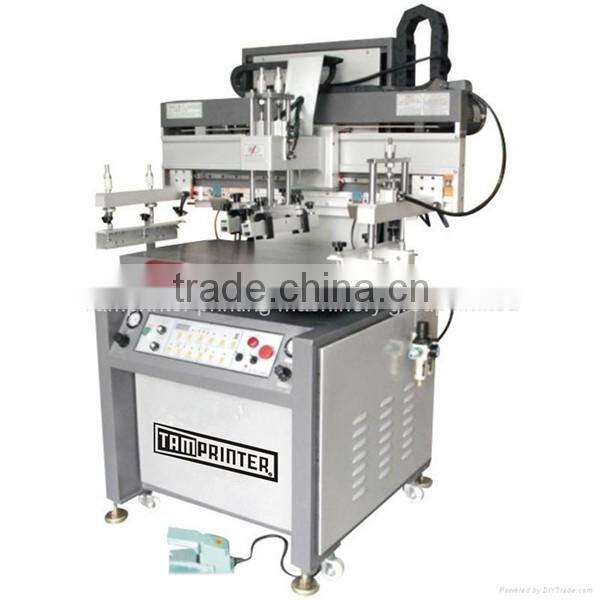

TM-6090C Vertical Precision Flat Screen Printing Machine
Technical parameters:
Model No. |
TM-6090C |
Printing Area |
600X900 |
Platform size |
700X1000 |
Max screen size |
800X1200 |
Substrate thickness |
Less than 50 |
Platform precision |
0.05 more or less |
Overlay accuracy |
0.01 more or less |
Printing speed mm/pcs |
80-160 |
Printing pressure |
4.0-8.0 kgf/cm2 |
Highest impressions |
400-600pcs/h |
Power supply |
380v /2.3kw |
Dimension |
1500X1070X1750mm |
Application:
For the Nameplate, Display Glass, light guide, lens window, membrane key switches.
Features:
(1).Printing transmission is driven by the electric motor, synchronous belt drive, action sensitive, even speed and can be adjusted.
(2).Machine up and down is driven by the electric motor, frequency control, smooth operation, scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
(3).Vacsorbing to fix printing stocks.
(4). The worktable has a vernier regulation system (can move left and right, forward and backward) that makes registration more correctly and simply.
(5). With security devices to make the head printing stop on the upper part position that is more reliable and safer.
(6).The electronic control unit (ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain.

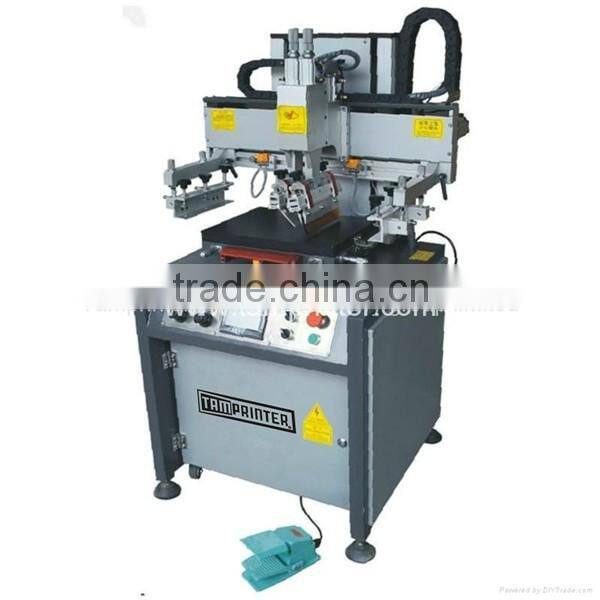

TM-3045Z Ultra Precision Vertical Screen Printer
video: /v_show/id_XMTI2ODc5NTkwMA==.html?from=y1.7-1.2
| Model No. | TM-3045Z |
| Printing area | 300X450mm |
| Table size | 400X550mm |
| Max frame | 550X720mm |
| Printing thickness | Less than 40 |
| Platform precision | 0.05 more or less |
| Printing pressure | 4.0-6.0 |
| Printing speed | 900 |
| Power | 380V/1.5KW |
| Dimensions (LXWXH)mm | 980X820X1580mm |
| Weight | 280kg |
Application:
Mobile phone cover, mobile phone back, Tablet PC cover.
Features:
1. The screen printing machine is powered by imported servo motor, printing more stable.
2. A variety of accessories by the customer freedom of choice, choose more flexible.
3. Hard alumina Taiwan version and more effective to prevent the glass scratches.
4. Touch screen controls, a variety of fine-tuning the details can be precisely controlled.
Payment terms: T/T L/C Western Union
Packing: Plywood case/ wooden case as required
Lead time: 5 days after confirmed payment
Sku: 10sets
Standard certification: CE
Minimum Order: 1 set
Price term: CIF/FOB/CFR/FCA/EXW
Tamprinter Printing Machinery Group Limited
As one of the most professional special printer supplier of Plastic Field in China,we have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products : Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Applications
It mainly applies to the printing process and pre-postpress of plastic and hardware products .Our equipment is also applicable to other material as glass, ceramic, wood, leather, cloth, etc.
Involved in the industry
Electronics, toys, gifts, clothing, stationery, cosmetics, washing products, chemicals, food, health product, pharmaceutical and packaging etc.
Advantages
1. All the electrical components and control system are from Germany and Japan, guarantee the stable quality of the print.
2. Multi-purpose microcomputer operating panel and touch screen operation can easily achieve man-machine dialogue.
3. As high quality steel frame structure and High temperature of the lacquer that bake, so that our printer is light and solid, beautiful and practical.
Our first-class products and considerate services have won more than 80 countries, acceptance in Europe and the United States, Canada, Southeast Asia, the Middle East and other customer, and we enjoyed a high reputation in the market. We cooperate with Omron, Emerson and Ruigao light, which are the world famous enterprises.
