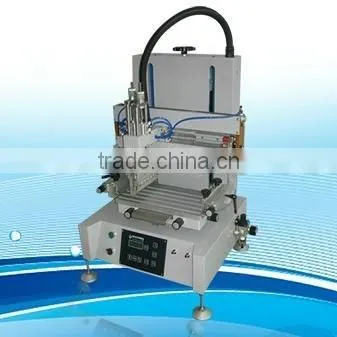

TM-300PJ Vacuum Suction Thin Object Printing Flat Screen Printing Machine
video: /v_show/id_XOTMzNDY2MDcy.html
Technical parameter:
Model |
TM-300P/ TM-300PT/ TM-300PJ |
TM-350P |
| Max Frame | 200X400mm | 250X550mm |
Plate area |
220X400mm |
|
Max printing area |
150X250mm |
200X300mm |
Max printing speed |
1000pcs/hr |
|
TM-300P |
With suction system |
|
TM-300PT |
With T-slot |
|
TM-300PJ |
With precision Rail; FESTO cylinder; SMC solenoid valve |
|
Air consumption |
104litre/min(6bar) |
|
Power |
110/220V 60/50Hz 50W |
|
Outside dimensions |
550X450X700mm(LXWXH) |
650X600X1100mm(LXWXH) |
Weight |
63Kg |
Cylinder :Two scraper cylinders, controls squeegee and back to the ink, and a L / R-stroke cylinder, a cylinder up and down
Features:
1. A microcomputer control high degree of automation, simple operation.
2. Using names such as Germany ORIGA plant steam moving components, performance and reliability.
3. The dual-mode back to the oil scraper choice; adapt to a variety of printing requirements.
4. The printing stroke and speed are adjustable to meet different printing requirements.
5. Self-balancing scraper to ensure equalized printing pressure.
6. The imports of the axis of the sleeve so that the screen scraper to smooth glide for printing.
7. The sliding parts can operate at speeds independent tone than the use of more convenient, fast.
8. The printing of high precision, the tone is more convenient, and fast.
Random accessories:
One Tool box one piece of Chinese specifications one set of tongs one set of Allen key. One set of Philip's head screw,one of the located air cylinder.
TM-500PT Type
Worktable largest size |
400X600mm |
Max. printing area |
350X450mm |
Max printing speed |
1200pcs/hr |
Air consumption |
104litre/min(6bar) |
Power |
110/220V 60/50Hz 750W |
Dimensions |
800X1000X1500mm(LXWXH) |
Weight |
178Kg |
Type |
TM-600PT |
TM-700PT |
Worktable largest size |
400X650mm |
500X700mm |
Max. printing area |
350X550mm |
450X600mm |
Max printing speed |
1000pcs/hr |
850pcs/hr |
Air consumption |
104litre/min(6bar) |
104litre/min(6bar) |
Power |
110/220V 60/50Hz 750W |
110/220V 60/50Hz 750W |
Dimensions |
800X1100X1500mm(LXWXH) |
970X1160X1760mm(LXWXH) |
Weight |
195Kg |
245Kg |
Tamprinter Printing Machinery Group Limited
As one of the most professional special printer supplier of Plastic Field in China,we have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products : Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Advantages:
1. All the electrical components and control system are from Germany and Japan, guarantee the stable quality of the print.
2. Multi-purpose microcomputer operating panel and touch screen operation can easily achieve man-machine dialogue.
3. As high quality steel frame structure and High temperature of the lacquer that bake, so that our printer is light and solid, beautiful and practical.
Market Area:
More than 80 countries. Encluding Europe, the United States, Canada, Southeast Asia, the Middle East, etc. We cooperate with Omron, Emerson and Ruigao light, which are the world famous enterprises.
