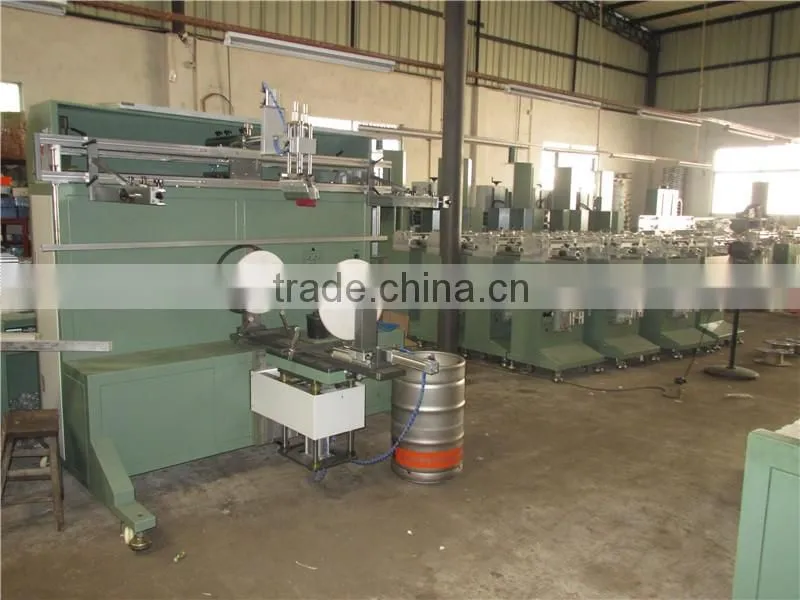

TM-1500E 400mm Large Pneumatic Flat Cylinder Bucket Screen Printing Machine
youku Video:
/v_show/id_XMTMzMjQ2MTE5Ng==.html?from=y1.7-2
Technical Parameters:
Starting Mode |
Panel /foot switches |
Up and down drive |
Pneumatic |
Left and right drive |
Electric |
Workpiece up and down stroke |
100mm (Pneumatic) |
Left and right stroke |
1500mm(electric) |
Max printing area |
1250*300mm |
| Printing plate size | 1200~1250*600mm |
Max printing diameter |
Φ400mm |
Max printing length |
1200mm or Customized |
Printing speed |
200PCS/Hr |
Power |
220V 50HZ 200W |
Atmospheric pressure |
5-7BAR (110litre/min) |
Weight |
550kg |
Dimension |
2200*1800*1680mm |
screen printer plywood:1.98*2.23*2.08m 200w220v
uv machine 2 plywood:2.73*1.14*1.55m 9.2kw 220v uv tube L500mm, 3KW, ballast output
2.28*1.08*1.35
Product Description:

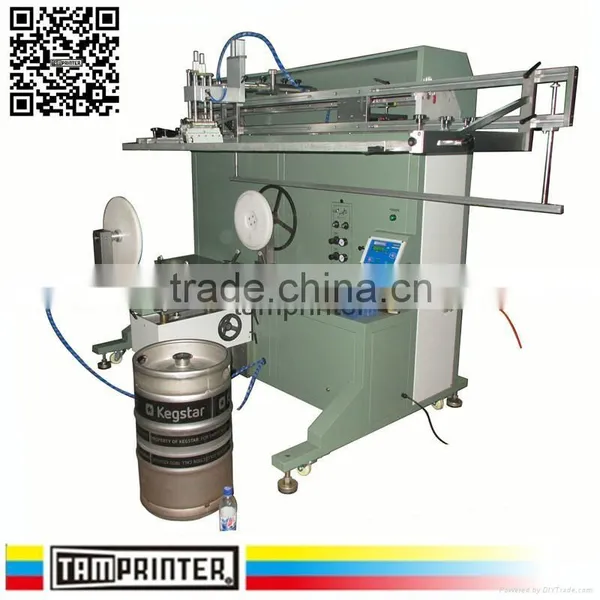

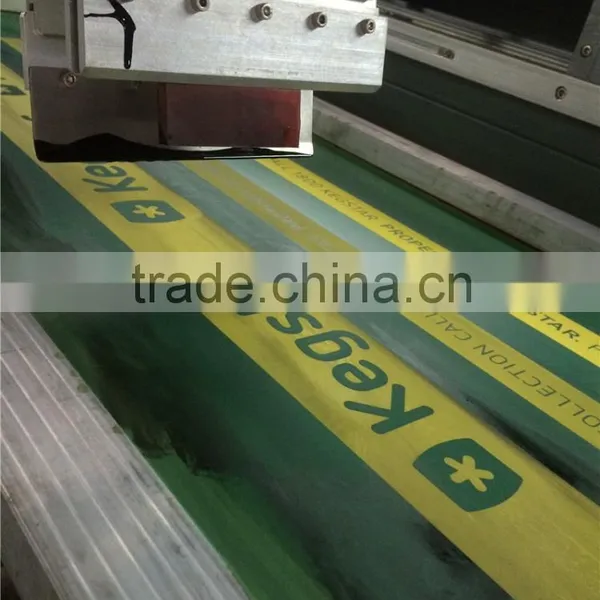

Non-standard large drum screen printer is a customized large screen printing machine based on customer’s specific demand and specifications. This machine is suitable for printing logos on mainframe drums, mineral water barrels, chemical barrels, paint barrels etc. Machines use inverter motor control with rail slide printing, in that way the machine is more stable, higher precision, and lower noise.
Characteristics:

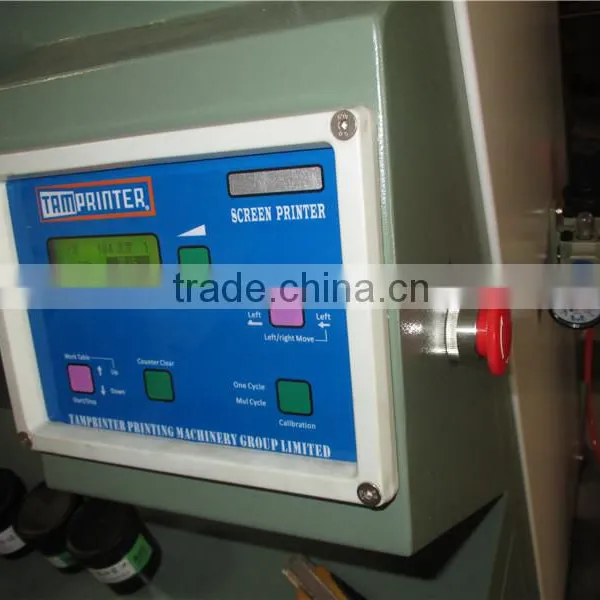

1 microcomputer control high degree of automation, simple operation; glance!
2, using the brand pneumatic components, stable and reliable performance;
3, back to the oil scraper dual mode selection; accommodate various printing requirements;
4, the printing stroke and speed are adjustable to meet the 360-degree and multi-color overprint different printing requirements;
5, self-balancing blade, to ensure equalized printing pressure;
6, using imported axis, so that the screen scraper smooth glide sleeve printing;

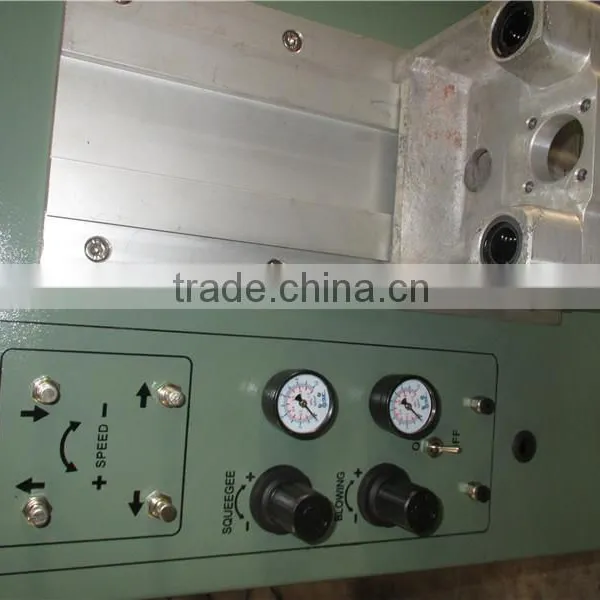

7, slide speed can be adjusted independently, easier to use, fast;

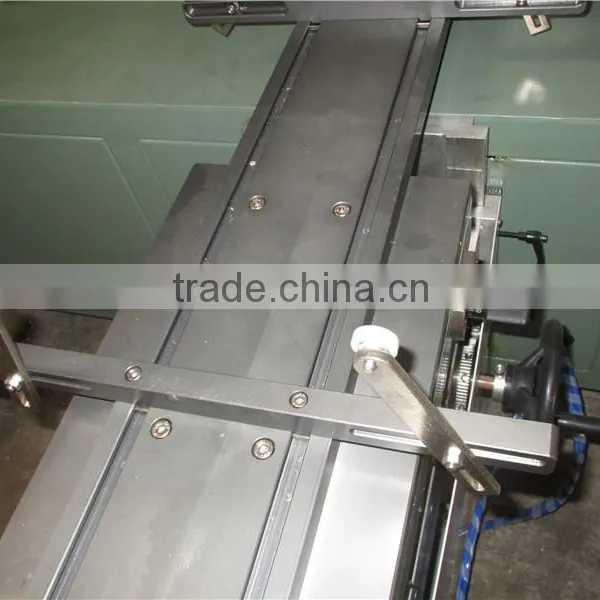

8, about the use of high-precision linear slide rail slide, with Taiwan Wanxin brand motor,
9, using the stepless speed and with Danfoss frequency converter drive, running precise, stable 10 long life
11, lift up and down using the cylinder type,
12, widening thick heavy base,

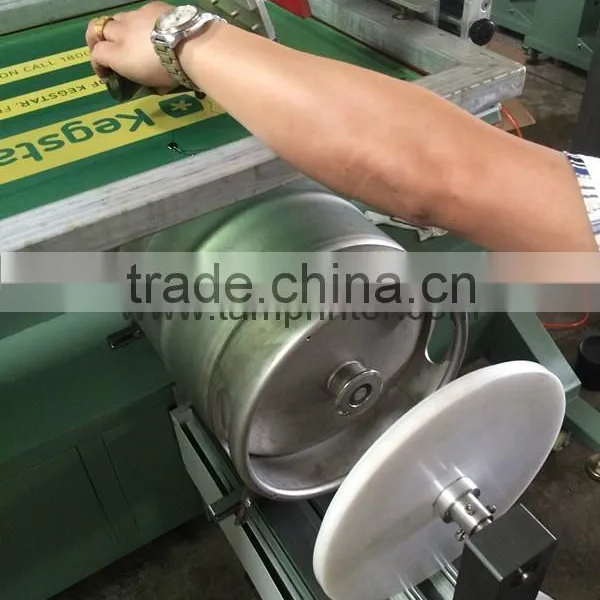

13, so set manually fine-tuning, convenient and accurate alignment.
TM-1200E Φ100mm~Φ310mm Bucket Screen Printing Machine
TM-700E 215mm Pneumatic Flat Cylindrer Screen Printer
TM-500E 135MM Pneumatic Cylindrer Pail Screen Printer
Payment terms: T/T, L/C, Western Union, Paypal
Packing: Plywood case/ wooden case as required
Lead time: 5 days after confirmed payment
Sku: 50sets
Standard certification: CE
Trademark: Tamprinter
Origin: China(Mainland)
Minimum Order: 1 set
Production Capacity: 10sets/Month
Packing: Plywood Case/Wooden Case/as Required
Price term: CIF/FOB/CFR/FCA/EXW
Tamprinter Printing Machinery Group Limited
As one of the most professional special printer supplier of Plastic Field in China,we have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products : Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Advantages:
1. All the electrical components and control system are from Germany and Japan, guarantee the stable quality of the print.
2. Multi-purpose microcomputer operating panel and touch screen operation can easily achieve man-machine dialogue.
3. As high quality steel frame structure and High temperature of the lacquer that bake, so that our printer is light and solid, beautiful and practical.
Market Area:
More than 80 countries. Encluding Europe, the United States, Canada, Southeast Asia, the Middle East, etc. We cooperate with Omron, Emerson and Ruigao light, which are the world famous enterprises.
