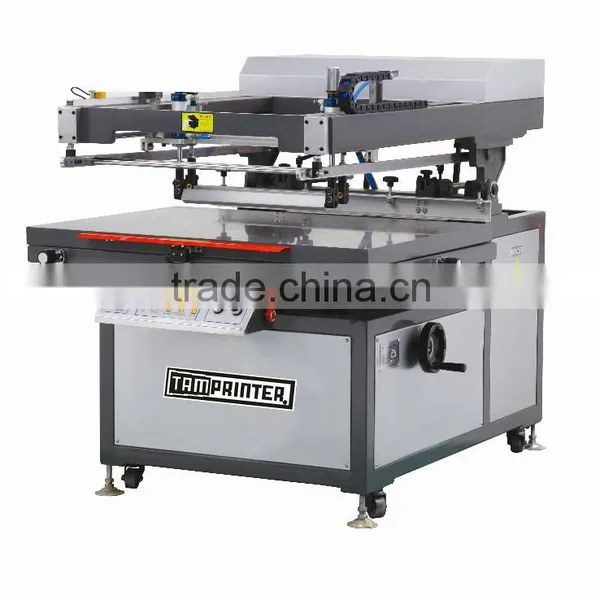

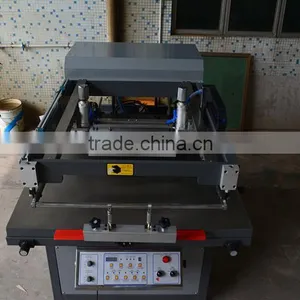

TMP-6090 CE cetificated Oblique Arm Type Flat Electronics Screen Printer
video link:
http://youtu.be/6td6Oee9q-Q
youku video
/v_show/id_XNTY0ODU4MDg0.html
1. Technical Parameter:
Model No. |
TMP-6090 |
TMP-70100 |
TMP-90120 |
Size of printing table (mm) |
720X1000 |
800X1100 |
1000X1300 |
Max printing area (mm) |
600X900 |
700X1000 |
900X1200 |
Max network installation (mm) |
900X1200 |
1000X1300 |
1200X1500 |
Min network installation (mm) |
450X550 |
550X650 |
650X700 |
Substrate thickness (mm) |
0-20 0-50 |
0-20 0-50 |
0-20 0-50 |
Printing speed (pcs/h) |
500-1200 |
500-1200 |
400-1000 |

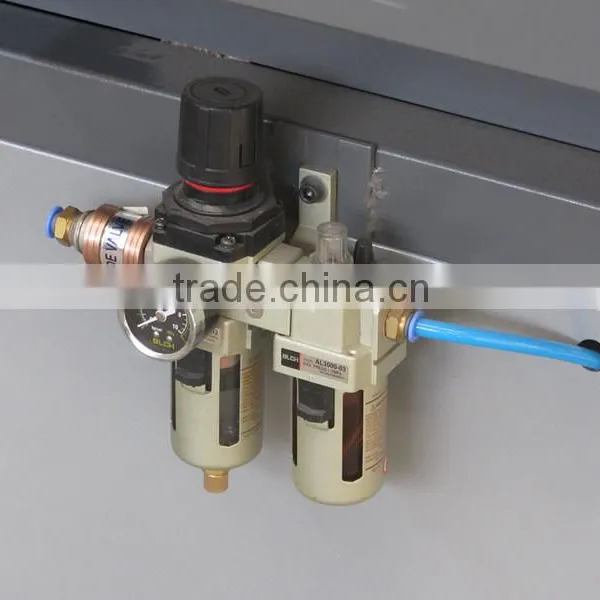

Working pressure(Mpa) |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
Air consumption(0.6Mpa)(L/pc) |
13/pcs |
13/pcs |
13/pcs |
The minimum height of the table(Relative to the ground)mm |
820 |
820 |
820 |
Dimensions(LXWXH)mm |
1520X1250X1280 |
1600X1350X1280 |
1800X1400X1300 |
weight |
410 |
480 |
550 |
voltage |
220V 50Hz |
220V 50Hz |
380V 50Hz |
power |
2.3 |
2.3 |
3.7 |
2. Application
Electronics Screen Printer of this series is widely used in the packaging industry (cigarette packaging, wine packaging, gift packaging and other card paper printing) trademark, calendar, oil painting, computer keyboards, paintings, iron-on transfers, credit cards, stickers, printing; also suitable for the printing of the electronics industry.
3. Performance characteristics
(1). Printing machine is driven by motor drive, which is belt drive, sensitive, balanced speed, speed adjustable.
(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.
(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.
(4). Vacuum adsorption fixed printing pieces.

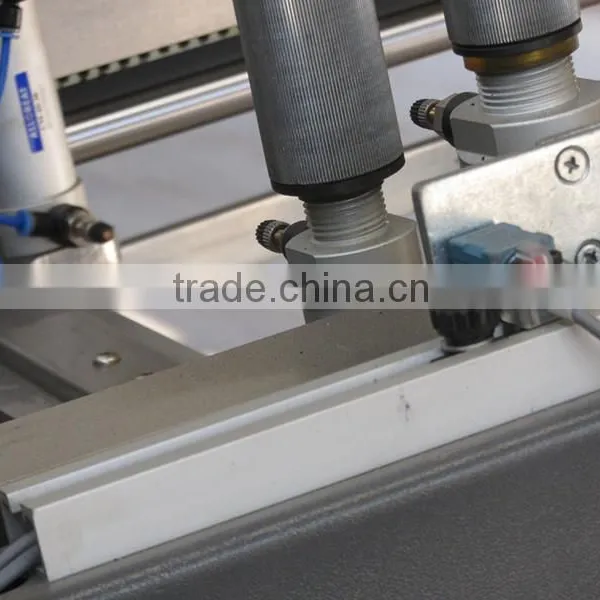

(5). The printing plate has up and down, left and right, before and after tuning device, which makes it works accurate and convenient on board.
(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.
(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.
