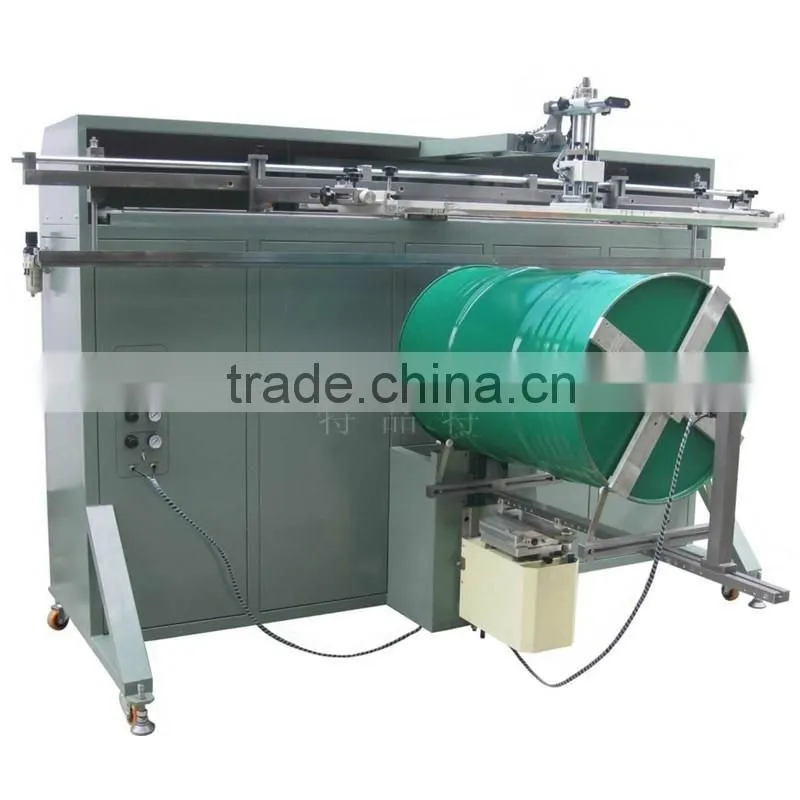

TM-MK 600mm 210L Big Keg Pneumatic Cylinder Silk Screen Printing Machine
TM-MK large cylinder screen printer or name: barrel printer, bucket print, tub printing , keg screen printer, pail cylinder screen printer.
youku Video:
/v_show/id_XMTI4NTkwMDE0NA==.html?from=y1.7-1.2
Technical Parameters:
Starting Mode |
Panel /foot switches |
Up and down drive |
Pneumatic |
Left and right drive |
Electric |
Workpiece up and down stroke |
100MM (Pneumatic) |
Left and right stroke |
2000mm(electric) |
Max printing area |
1800*300mm |
| Printing plate size | 1200~1800*600mm |
Max printing diameter |
Φ600mm 210L |
Max printing length |
1200mm or Customized |
Printing speed |
500PCS/Hr |
Power |
220V 50/60HZ 500W |
Atmospheric pressure |
5-7BAR (110litre/min) |
Weight |
650kg |
Dimension |
2700*1800*1680mm |
Product Description:

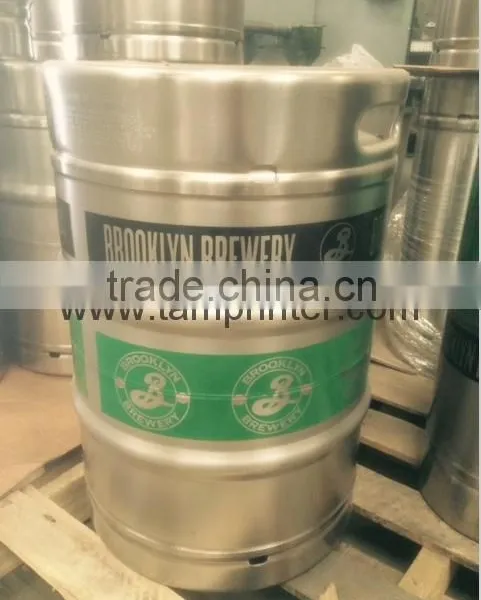

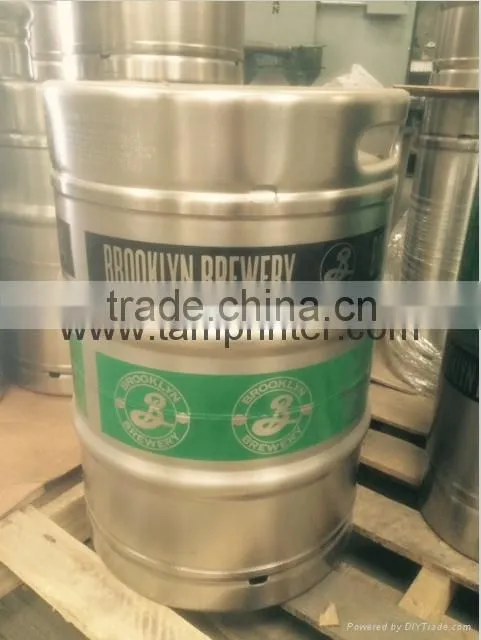

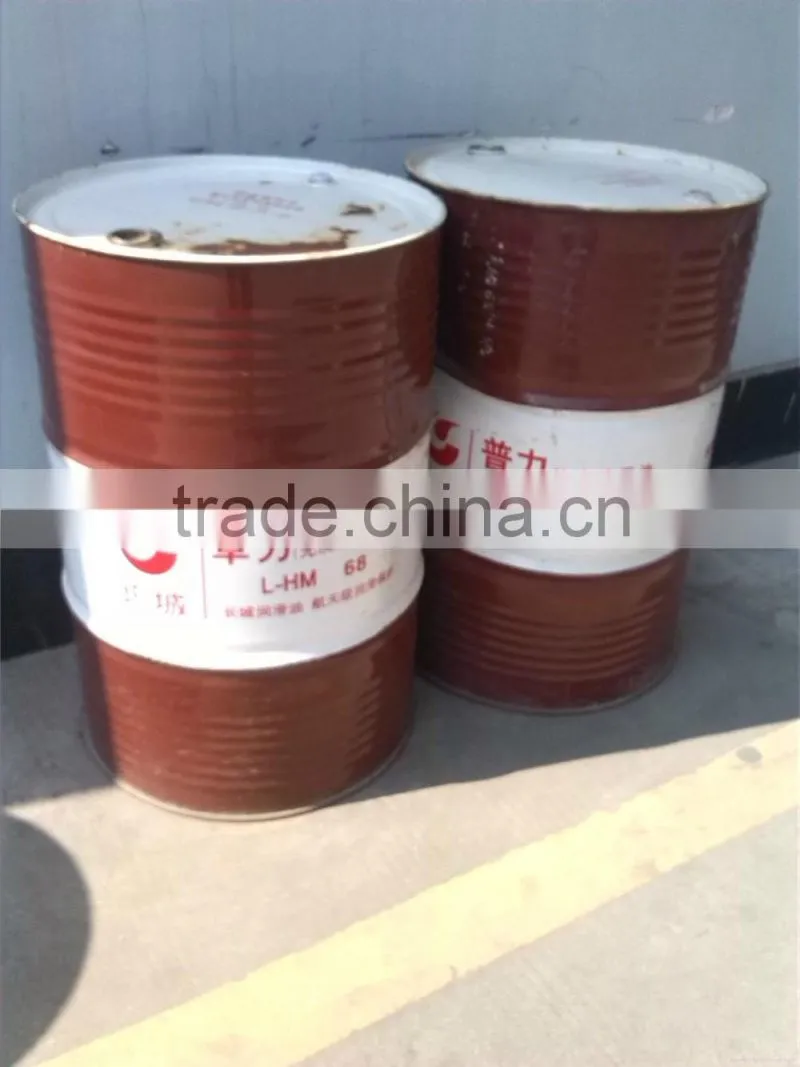

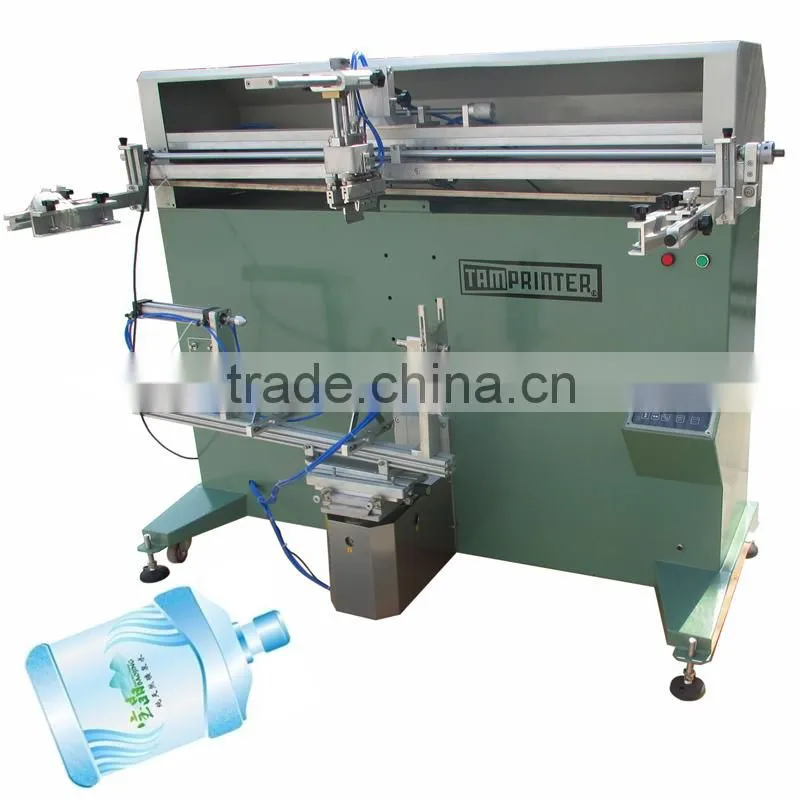

Non-standard large drum screen printer is a customized large screen printing machine based on customer’s specific demand and specifications. This machine is suitable for printing logos on mainframe drums, mineral water barrels, chemical barrels, paint barrels etc. Machines use inverter motor control with rail slide printing, in that way the machine is more stable, higher precision, and lower noise.
Characteristics:
1 microcomputer control high degree of automation, simple operation; glance!
2, using the brand pneumatic components, stable and reliable performance;
3, back to the oil scraper dual mode selection; accommodate various printing requirements;
4, the printing stroke and speed are adjustable to meet the 360-degree and multi-color overprint different printing requirements;
5, self-balancing blade, to ensure equalized printing pressure;
6, using imported axis, so that the screen scraper smooth glide sleeve printing;
7, slide speed can be adjusted independently, easier to use, fast;
8, about the use of high-precision linear slide rail slide, with Taiwan Wanxin brand motor,
9, using the stepless speed and with Danfoss frequency converter drive, running precise, stable 10 long life
11, lift up and down using the cylinder type,
12, widening thick heavy base,
13, so set manually fine-tuning, convenient and accurate alignment.
Payment terms: T/T, L/C, Western Union, Paypal
Packing: Plywood case/ wooden case as required
Lead time: 5 days after confirmed payment
Sku: 50sets
Standard certification: CE
Trademark: Tamprinter
Origin: China(Mainland)
Minimum Order: 1 set
Production Capacity: 10sets/Month
Packing: Plywood Case/Wooden Case/as Required
Price term: CIF/FOB/CFR/FCA/EXW
