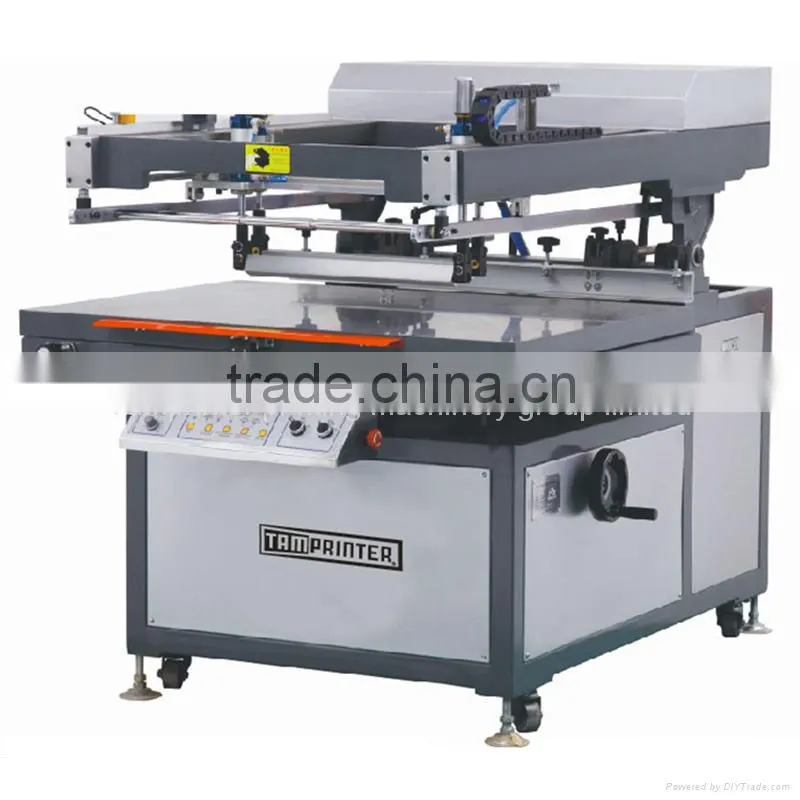

TMP-90120-B Oblique arm CE flat screen printer
Technical parameters:
| Workbench area | 1000X1300mm |
| Max printing area | 900X1200mm |
| Min screen size | 650X700mm |
| Thickness of print | 0-50mm |
| Source power (kw) | 3.7 |
| Rated voltage (v/hz) | 220/50HZ |
| Printing speed (pcs/h) | 400-1000 |
| Machine size(mm) | 1800X1400X1300mm |
| Max table height | 820 |
| weight | 550kg |
1 set 1200mm length squeegee holder with 1220mm length scraper.
1 set 900mm length squeegee holder with 920mm length scraper;
total 2 set
Application:
Flat Screen Printer of this series is widely used in the packaging industry (cigarette packaging, wine packaging, gift packaging and other card paper printing) trademark, calendar, oil painting, computer keyboards, paintings, iron-on transfers, credit cards, stickers, printing; also suitable for the printing of the electronics industry.
Features:
(1). This flat screen printing machine is driven by motor drive, which is belt drive, sensitive, balanced speed, speed adjustable.
(2). Oblique flat arm lifting motor, frequency control, the machine runs smoothly.
(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.
(4). Vacuum adsorption fixed printing pieces.
(5). The printing plate has up and down, left and right, before and after tuning device, which makes it works accurate and convenient on board.
(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.
(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.
