Home > Packaging & Printing > Printing Machinery > Screen Printer > TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer

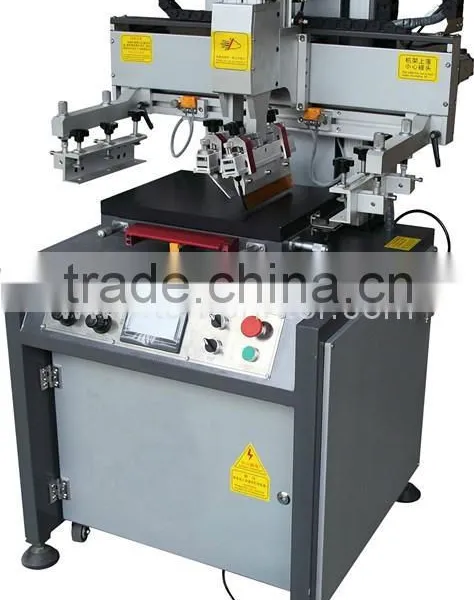

TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer

Name: TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer
Brand: Tamprinter
SKU: 120859937

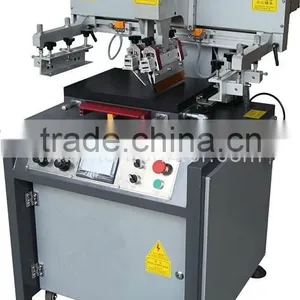

TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer thumbnail-1

TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer thumbnail-2

TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer thumbnail-3

TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer thumbnail-4

TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer thumbnail-5

TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer photo-1

TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer photo-2

TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer photo-3

TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer photo-4

TM-2030B PLC+single Servo Motor Super Precision Vertical Screen Printer photo-5

US$ 6375.00 - 6375.00 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

Tamprinter

Contact Supplier Request Quote Chat Now

Shenzhen Tamprinter Printing Machin

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Guangdong, China

Brand Name Tamprinter

Model Number TM-2030B

Usage Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer

Automatic Grade Automatic

Voltage 380V/1.5KW

Gross Power 1.5KW

Dimensions(L*W*H) 830X720X1580mm

Weight 200Kg

Certification CE Certification

Warranty 1 Year

After-sales Service Provided Overseas third-party support available

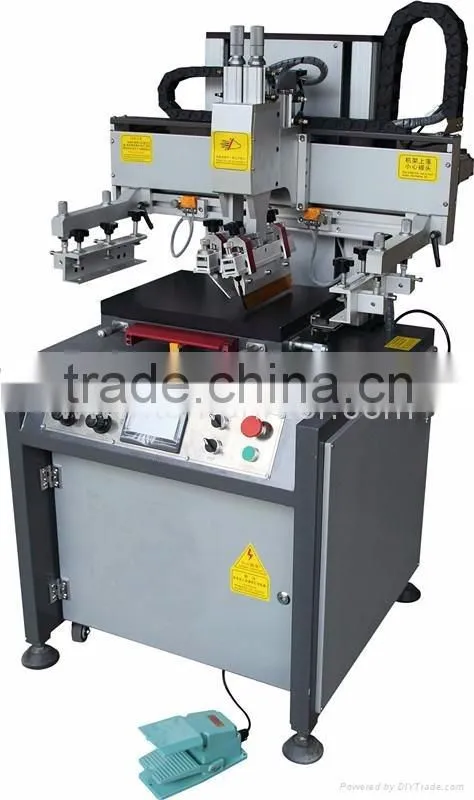

PLC+single servo motor Super precision Vertical screen printer (TM-2030B)

video link:

/v_show/id_XMTI2ODc5NTkwMA==.html

Widly used in membrane switches, hot transfer printing, water transfer printing, PCB, LED, SMT, Solder paste printing, Plastic, glass, ceramics, metal, leather, keyboard, textile printing

Technical parameter:

Model No.	TM-2030A	TM-2030B	TM-3045A	TM-3045B	TM-5070A	TM-5070B	TM-6090A	TM-6090B
Servo+PLC	Double servo	single servo	Double servo	single servo	Double servo	single servo	Double servo	single servo
Price	$7250	$6375	$7500	$6625	$10000	$9125	$10250	$9375
Printing area	200X300mm		300X450mm		500X700mm		600X900mm
Table size	300X400mm		400X550mm		600X900mm		700X1000mm
Max frame	450X620mm		550X720mm		750X920mm		800X1200mm
Printing thickness	0~40mm		0~40mm		0~ 50mm		0~ 50mm
Overlay accuracy	0.008mm		0.01mm		0.015mm		0.02mm
Platform precision	About +/-0.02mm		About +/-0.04mm		About +/-0.06mm		About +/-0.075mm
Printing pressure	4.0-8.0 kgf/cm2		4.0-8.0 kgf/cm2		4.0-8.0 kgf/cm2		4.0-8.0 kgf/cm2
Air pressure (mpa)	0.5~0.6(Mpa)		0.5~0.6(Mpa)		0.5~0.6(Mpa)		0.5~0.6(Mpa)
Air consumption	35L/min		35L/min		35L/min		35L/min
Printing speed	1000pcs/h		960pcs/h		800pcs/h		600pcs/h
Power	380V/1.5KW		380V/1.5KW		380V/1.5KW		380v /2.3kw
Dimensions (LXWXH)mm	830X720X1580mm		980X820X1580mm		1330mmX1000mmX1750mm		1500X1070X1750mm
Weight	200kg		280kg		420kg		480kg

if add robot arm add $3000

Application:

Mobile phone cover, mobile phone back, Tablet PC cover.

Features:
1. The screen printing powered by imported servo motor, printing more stable.
2. A variety of accessories by the customer freedom of choice, choose more flexible.
3. Hard alumina Taiwan version and more effective to prevent the glass scratches.
4. Touch screen controls, a variety of fine-tuning the details can be precisely controlled.

About Us:

Tamprinter printing machinery group limited is one of the most professional special printer supplier of Plastic Field in China. We have supplied OEM service for the domestic counterparts since 2005. OEM products have been achieved CE certification.
Due to business expansion, Shenzhen Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products: Pad printer, Screen printer, UV curing machine, Heat transfer machine.

Business scopes:
1. Research, develop, produce and sell: Pad printer, Screen printer, Heat transfer machine, Hot stamping machine, Pre-post printer(UV curing machine, Flame treatment machine, UV exposure clich machine, Coating emulsion machine, Silk mesh tighten machine, Screen stencil drying oven, Silk screen frame exposure machine, Steel pad plate oven, IR oven, IR drying tunnel conveyer );

2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting;

3. Valet Manufacture: flame treatment gun, screen frame, Screen Stencil, pad, steel plates, film, Drying Racks Trolley and the relative moulds, jigs and parts;

4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter, Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil, High temperature tape, Stamp plate, Silicon rubber roller, Heat transfer paper, High temperature glue, UV lamp, UV lamps Trigger etc;

5. Our engineer can communicate with clients at anytime in English, design development use UG, Proe, Autocad, Mastercam;

6. Import and export business of the above items.

Applications :

It mainly applies to the printing process and pre-postpress of plastic and hardware products .Our equipment is also applicable to other material as glass, ceramic, wood, leather, cloth, etc.

Involved in the industry:
Electronics, toys, gifts, clothing, stationery, cosmetics, washing products, chemicals, food, health product, pharmaceutical and packaging etc.

Advantages :

1. All the electrical components and control system are from Germany and Japan, guarantee the stable quality of the print.

2. Multi-purpose microcomputer operating panel and touch screen operation can easily achieve man-machine dialogue.

3. As high quality steel frame structure and High temperature of the lacquer that bake, so that our printer is light and solid, beautiful and practical.

Our first-class products and considerate services have won more than 80 countries, acceptance in Europe and the United States, Canada, Southeast Asia, the Middle East and other customer, and we enjoyed a high reputation in the market. We cooperate with Omron, Emerson and Ruigao light, which are the world famous enterprises.
