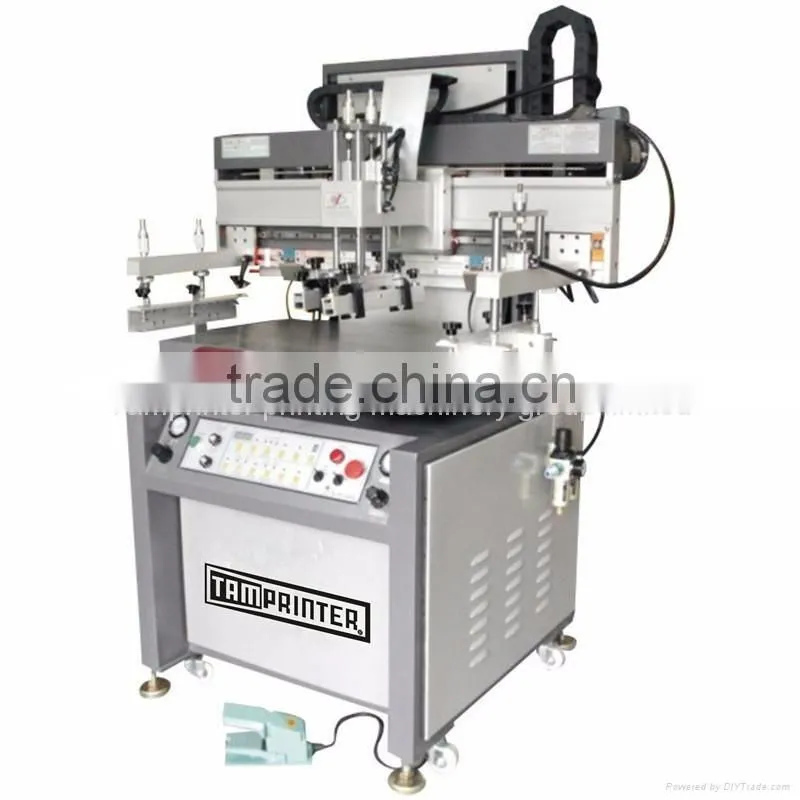

TM-6090C Vertical precision flat screen printing machine
Technical parameters
| Model No. | TM-6090C |
| Printing Area | 600X900 |
| Platform size | 700X1000 |
| Max screen size | 800X1200 |
| Substrate thickness | Less than 50 |
| Platform precision | 0.05 more or less |
| Overlay accuracy | 0.01 more or less |
| Printing speed mm/pcs | 80-160 |
| Printing pressure | 4.0-8.0 kgf/cm2 |
| Highest impressions | 400-600pcs/h |
| Power supply | 380v /2.3kw |
| Dimension | 1500X1070X1750mm |
Application
For the Nameplate, Display Glass, light guide, lens window, membrane key switches.
Features
(1).Printing transmission is driven by the electric motor, synchronous belt drive, action sensitive, even speed and can be adjusted.
(2).Machine up and down is driven by the electric motor, frequency control, smooth operation, scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
(3).Vacsorbing to fix printing stocks.
(4). The worktable has a vernier regulation system (can move left and right, forward and backward) that makes registration more correctly and simply.
(5). With security devices to make the head printing stop on the upper part position that is more reliable and safer.
(6).The electronic control unit (ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain.
