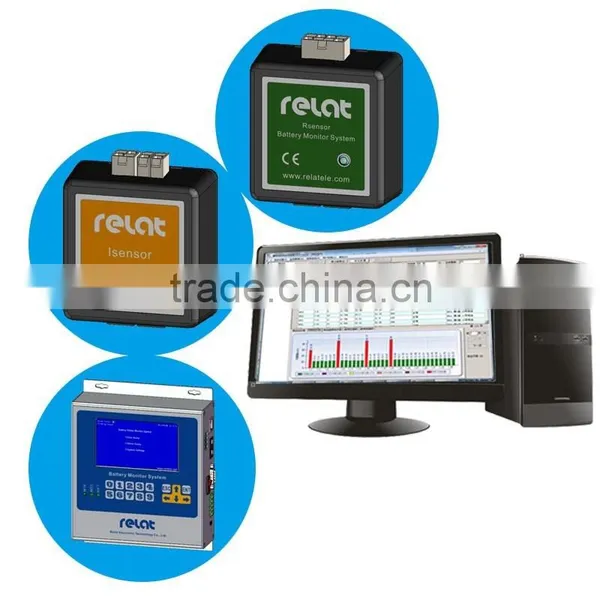

BM3000 Battery Monitor Systems
BM3000 Battery Monitoring System is our 3rd Generation product, which is for individual module level real time battery monitoring specially designed for UPS/EPS System. It will accurate and automatic measuring voltage, internal resistance and temperature of every single battery. This will provide documentary evidence on the life of each battery. Moreover, it can effective reduce the critical power failure incident and save maintenance cost.
For Lead/Acid, NiCd, NiMH and Li-Ion batteries
Avoid unnoticed or unexpected battery failures, extend the battery lifespan up to 30% and preserve the reliability of your batteries
Applications
Data Center
Railway Transport
Electricity Power
Radio and TV System
Telecom Base Station
Insurance Data Center
MedicalAviation

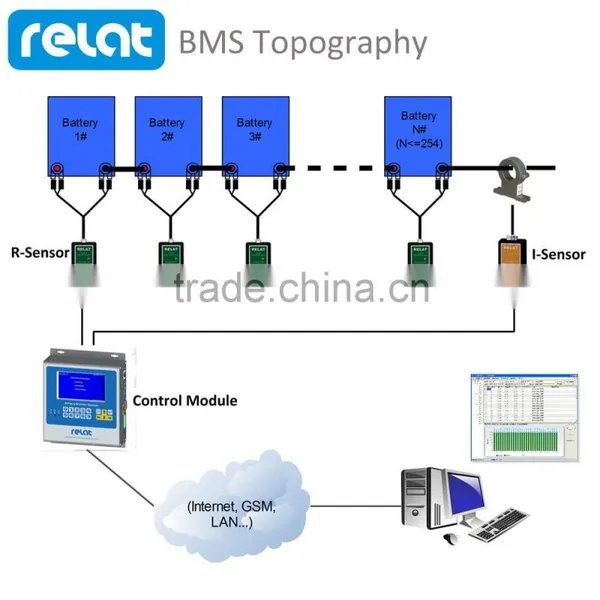

BM3000 SOFTWARE allows for remote viewing and data management of all connected battery monitoring systems.Report generation, trending analysis, & detailed alarming can all be viewed on a single or multiple PC’s on the same network. Alternatively, the BMS can be configured to communicate via Modbus to a building management system, SCADA, or other custom fit management system. All control module include one relay for additional external alarming.

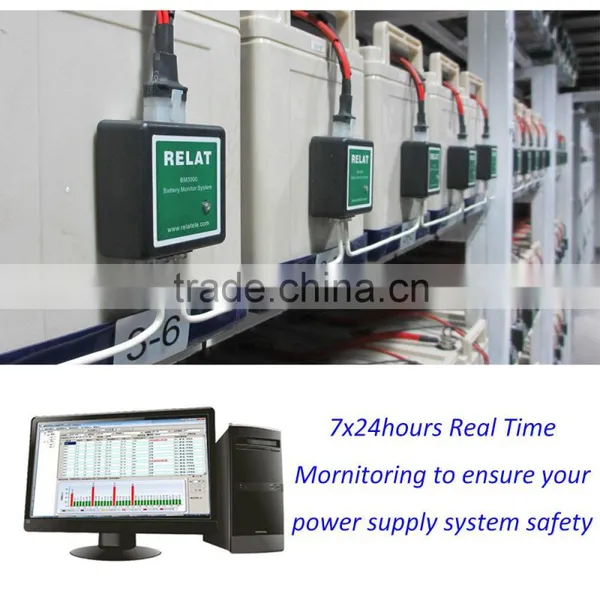

Real Time Data Viewing
a. Real time monitoring cell voltage, negative temperature and internal resistance,string Voltage and current.
b. Easily to find the unnormal battery
c. Support up to 10,000 blocks batteries
d. Collect, Manage and Record the data.
Analysis Graphs Display and Exports
a. A battery voltage, internal resistance, nagetive temperature bar chatts showing
b. String volatge & current trending curves for analysis and export.
Alarm Record
a. Classification the alarm record
b. SMS Notifications & Email Notifications for Alarms
Charge & Discharge Record
a. Following a battery discharge, A visual color display showing best and worst performing cell / block in a battery
b. History data record and details
c. Custom export the data & graph
ONE COMMERCIAL BANK IN CHINA
In 2011, RELAT won the bidding on the BMS project from one commercial Bank with all 36 branches in China. Now, there are more than 10,000 blocks batteries of the bank in good conditional running. In the domestic market, RELAT had become the first supplier of Battery Monitor System in large commercial bank project with implementation experiences..
One Data Center of China Securities and Futures
Total 13,253 blocks,cogfig as below
22 sets x 3 strings x 44 blocks
21 sets x 3 strings x 47 blocks
8 sets x 2 strings x 44 blocks
4 sets x 1 string x 33 blocks
23 sets x 3 strings x 44 blocks
24 sets x 3 strings x 47 blocks
4 sets x 1 string x 33 blocks
ONE SITE OF AIRLINE IN CHINA
Model:BMS BM3000
Quantity:Total 1,168 blocks
Config:4 sets x 1 string x 40 blocks
24 sets x 1 strings x 42 blocks
Q1. Can I have a complete demo set order for RELAT BMS?
A: Yes, we welcome a complete demo set order of RELAT BMS for verification test.
Q2. What about the lead time?
A:Sample needs 3-7 days, mass production or custom product need 2-4 weeks.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-8 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order for RELAT BMS?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the Sensor and Control Module?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to our products.
