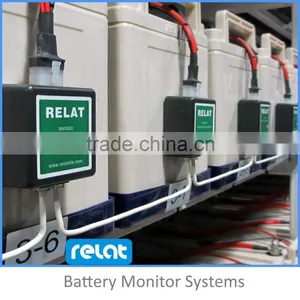

BM3000 Battery Monitor Systems
BM3000 BMS is an individual online battery monitoring module specially designed for UPS/EPS , telecom and Electric Operation Power Supply System. It is with high performance-price ratio and could monitoring cell parameters like voltage,Temperature and internal resistance of every single battery. BM3000 BMS could accurately and quickly monitoring the parameters of the battery.
For Lead/Acid, NiCd, NiMH and Li-Ion batteries
Avoid unnoticed or unexpected battery failures, extend the battery lifespan up to 30% and preserve the reliability of your batteries
Applications
Data Center
Railway Transport
Electricity Power
Radio and TV System
Telecom Base Station
Insurance Data Center
MedicalAviation

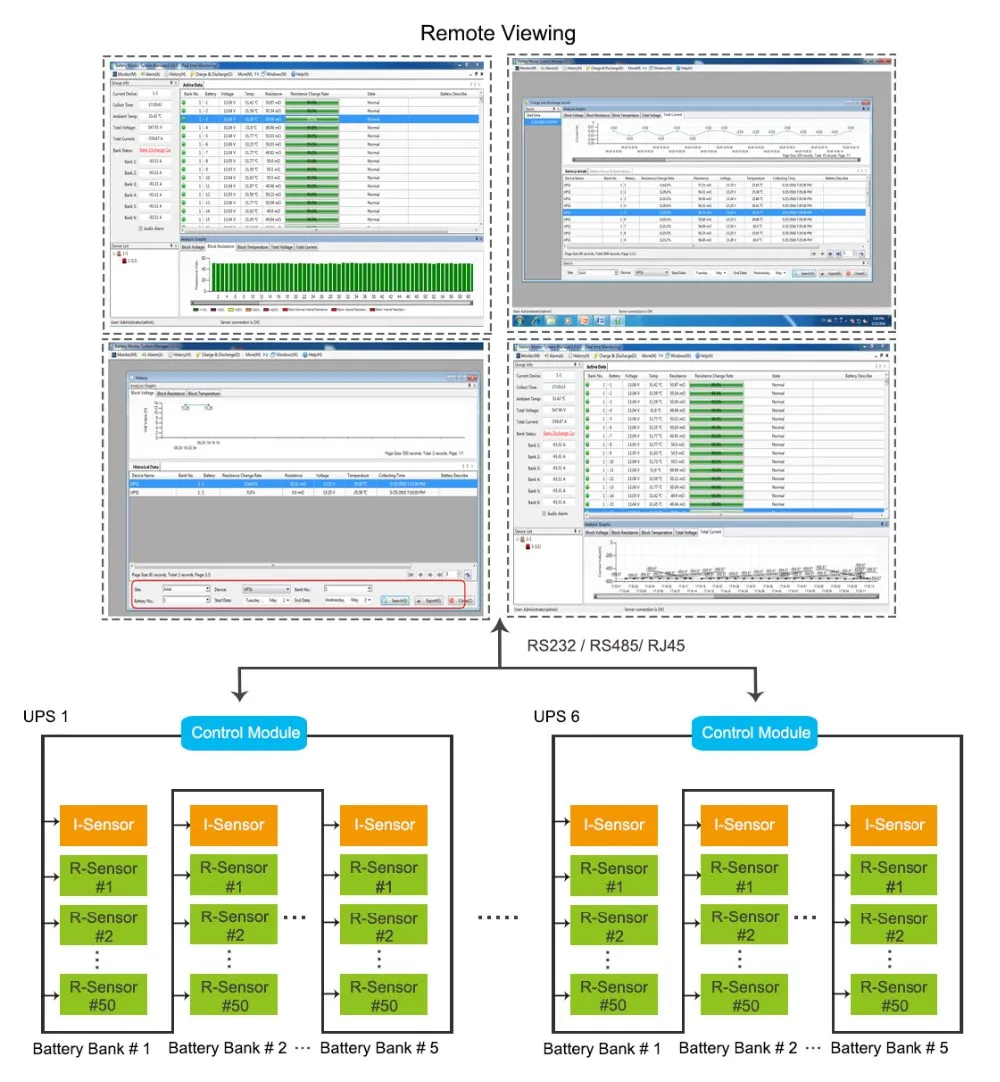

BM3000 SOFTWARE allows for remote viewing and data management of all connected battery monitoring systems. .

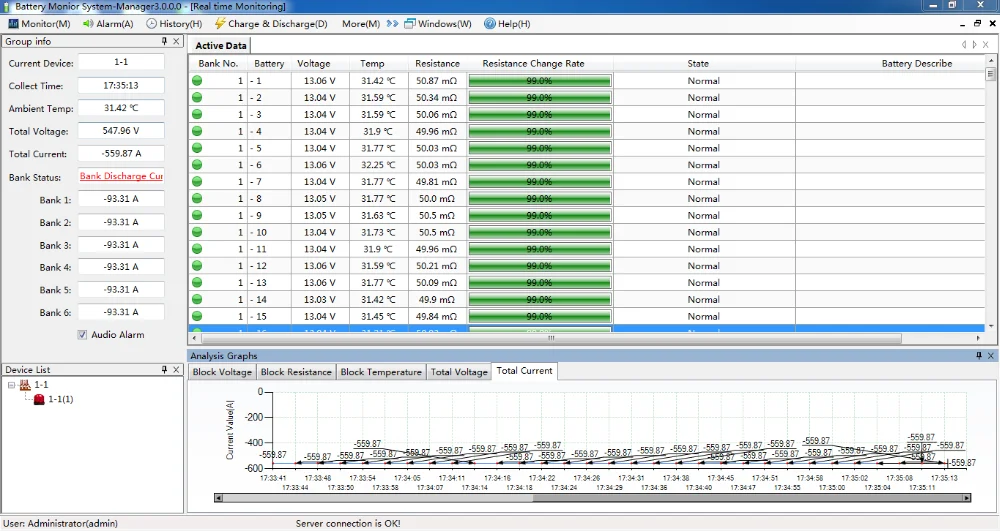

Real Time Data Viewing
a. Real time monitoring cell voltage, negative temperature and internal resistance,string Voltage and current.
b. Easily to find the unnormal battery
c. Support up to 10,000 blocks batteries
d. Collect, Manage and Record the data.

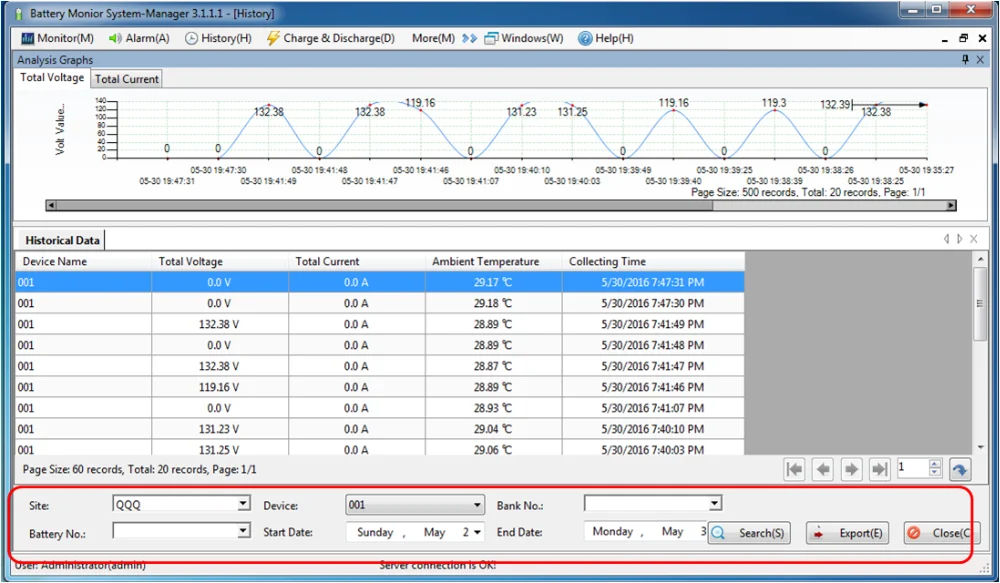

Analysis Graphs Display and Exports
a. A battery voltage, internal resistance, nagetive temperature bar chatts showing
b. String volatge & current trending curves for analysis and export.
.

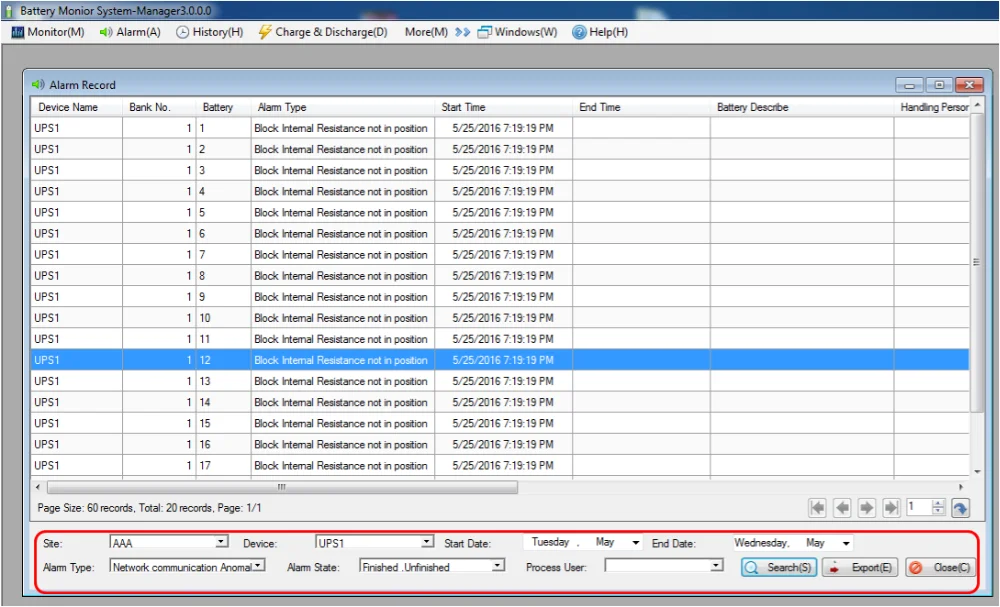

Alarm Record
a. Classification the alarm record
b. SMS Notifications & Email Notifications for Alarms
Charge & Discharge Record
a. Following a battery discharge, A visual color display showing best and worst performing cell / block in a battery
b. History data record and details
c. Custom export the data & graph
.
ONE COMMERCIAL BANK IN CHINA
In 2011, RELAT won the bidding on the BMS project from one commercial Bank with all 36 branches in China. Now, there are more than 10,000 blocks batteries of the bank in good conditional running. In the domestic market, RELAT had become the first supplier of Battery Monitor System in large commercial bank project with implementation experiences..
One Data Center of China Securities and Futures
Total 13,253 blocks,cogfig as below
22 sets x 3 strings x 44 blocks
21 sets x 3 strings x 47 blocks
8 sets x 2 strings x 44 blocks
4 sets x 1 string x 33 blocks
23 sets x 3 strings x 44 blocks
24 sets x 3 strings x 47 blocks
4 sets x 1 string x 33 blocks
ONE SITE OF AIRLINE IN CHINA
Model:BMS BM3000
Quantity:Total 1,168 blocks
Config:4 sets x 1 string x 40 blocks
24 sets x 1 strings x 42 blocks
