Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > ACSR Conductors ( Aluminum Conductor Steel Reinforced)

ACSR Conductors ( Aluminum Conductor Steel Reinforced)

Name: ACSR Conductors ( Aluminum Conductor Steel Reinforced)
Brand: Jiapu
SKU: 120520205

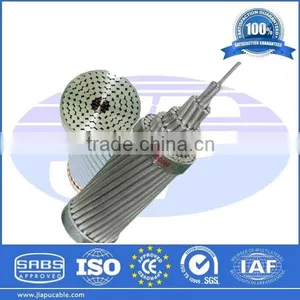

ACSR Conductors ( Aluminum Conductor Steel Reinforced) thumbnail-1

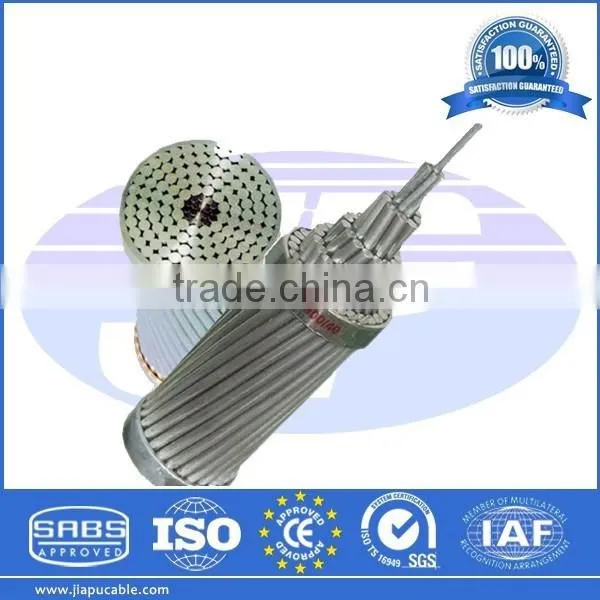

ACSR Conductors ( Aluminum Conductor Steel Reinforced) photo-1

US$ 0.1 - 1 MOQ: 1000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

Jiapu

Model Number:

LJ/LGJ

Contact Supplier Request Quote Chat Now

Henan Jiapu Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qing Dao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name Jiapu

Model Number LJ/LGJ

Insulation Material Other, none

Type Low Voltage

Application Overhead

Conductor Material Aluminum

Jacket Other, none

ACSR conductors ( Aluminum Conductor Steel Reinforced)

ACSR consists of a galvanized steel core surrounded by concentric layers of aluminum wire,if required, ACSR conductor

ACSR(Aluminum Conductor Steel Reinforced) is widely used in the overhead power distribution system of our country.

We can supply this conductor according to different recognized standards,such as IEC61089,BS215,ASTM B232,CSA C49,DIN48204,JIS C3110, customer special specification also can be satisfied.

The data sheets below show the most common standards,British standard.

British Sizes BS215

Code name	Nominal Area	Stranding&Wire Diameter		Approx Overall Diameter	Sectional Area			Approx Weight	Breaking Load	DC Resistance
	Nominal Area	Al	Steel	Approx Overall Diameter	Al	Steel	Total	Approx Weight	Breaking Load	DC Resistance
	mm²	mm	mm	mm	mm²	mm²	mm²	Kg/km	KN	Ohm/km
Squirrel	20	6/2.11	1/2.11	6.33	21.0	3.50	24.5	84.7	7.87	1.3659
Gopher	25	6/2.36	1/2.36	7.08	26.24	4.38	30.62	106	9.61	1.0930
Ferret	40	6/3.00	1/3.00	9.00	42.41	7.07	49.48	172	15.20	0.6766
Rabbit	50	6/3.35	1/3.35	10.05	52.88	8.82	61.70	214	18.35	0.5426
Mink	60	6/3.66	1/3.66	11.00	63.1	10.50	73.6	254.9	21.67	0.4540
Horse	70	12/2.79	7/2.79	13.95	73.37	42.83	116.20	538	61.20	0.3936
Dog	100	6/4.72	7/1.57	14.15	105.00	13.50	118.50	394	32.70	0.2733
Wolf	150	30/2.59	7/2.59	18.13	158.10	36.80	194.90	726	69.20	0.1828
Goat	300	7/3.71	7/3.71	26.00	324.3	75.70	400.0	1488.2	135.13	0.0891
Bison	350	7/3.00	7/3.00	27.00	381.7	49.50	431.2	1442.5	121.30	0.0758
Zebra	400	54/3.18	7/3.18	28.62	428.90	55.60	484.50	1621	131.90	0.0674
