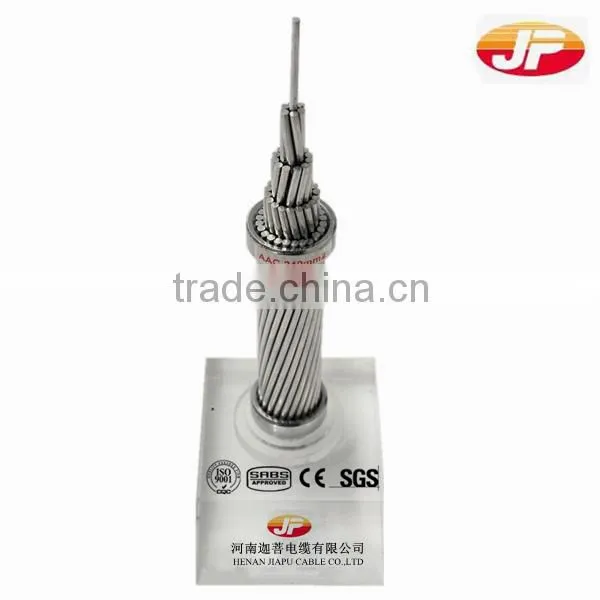

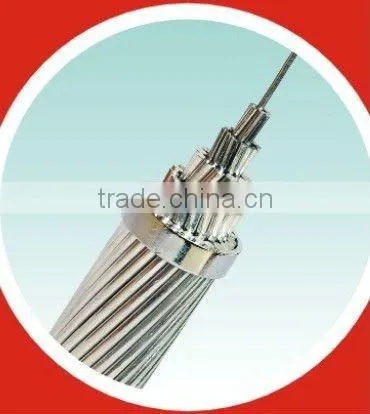

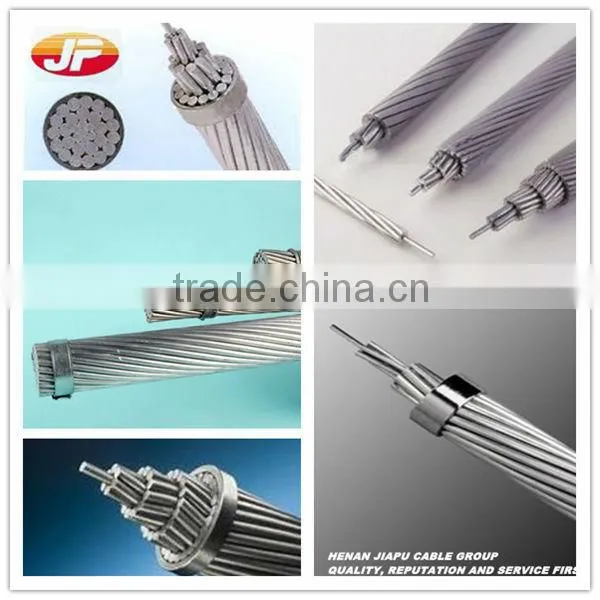

Professional AAC Manufacturer All Aluminum Conductor
AAC, AAAC, ACSR, AACSR&ACAR conductor widely used in power transmission lines with various voltage levels.Since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
Specification:
(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6) rear earth aluminimum conductor steel reinforced(ACSR/RE)
(7) aluminimum conductor aluminimum alloy reinforced(ACAR)
Elative manufacturing standards:
IEC83, IEC1089, 31, B232, BS215, DIN48204.
1) Standard: IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182.

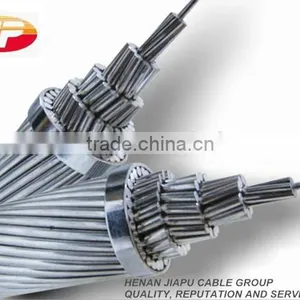

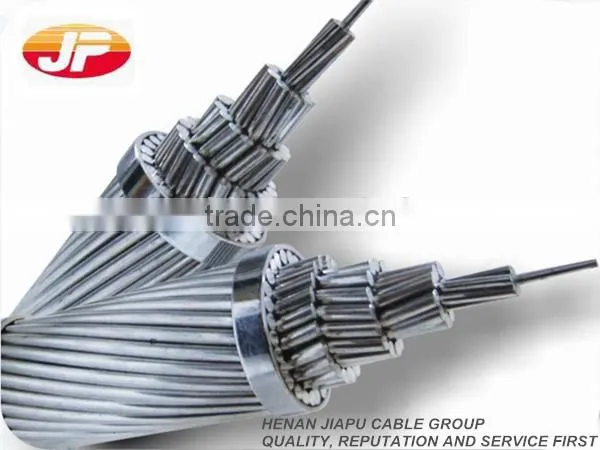

2) Specification: ACSR is composed by bare concentric-lay-stranded galvanized steel wire(s) with aluminum wires surrounded by one or more layers of helically. Greased ACSR can also be supplied.
3) Application: ACSR is widely used in overhead electric power transmission and distribution lines with various voltage levels.
All Aluminum Conductor(AAC)& Aluminum Conductor Steel Reinforced(ACSR))for ASTM
(AAC, ACCR, AAAC, ACSR) Generally Confirming to IS 398 (Part-I, II, IV), IEC-228
(AAAC) Conductor as per ASTM-B-399-1992
(AAAC) Conductor as per BS-3242-1970
(AAAC) Conductor IS: 398-IV-1994
(ACSR) as per ASTM-B-233-1992
(AAC) as per BS-215-1-1970
(AAC) as per IS-398-1: 1976
(AAC) as per ASTM-B-231-1990
(ACSR) as per IS: 398-II: 1976 & IS: 398-V: 1992
(ACSR) BS-215-II-1970
(AACSR) as per IEC-1089-1191
AAC(All aluminum conductor) are suited for overhead power line.
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, ASTM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.
ACSR or ACSR cable or ACSR conductor used for Overhead electrical distribution and transmission lines for distributing power.
Applications:
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Construction:
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corrosion or infusion of the complete cable with grease.
Specifications:
ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-clad Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AW)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
Notes:
Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.
Current ratings are based on 75oC conductor temperature, 25oC ambient, 2ft/s wind, 96/watts/sq. Ft sun, 0.5 coefficients of emissivity and absorption.
Standard:
Our caring service, manufacturing careful Heart price, customers at ease.
"Customer-oriented", provides a full range of quality services for our customers;
"Service core" most valuable customers tailored products;
"Focus on quality, full-service customers!
Henan Jiapu Cable Group is engaged in manufacturing and supply of wires and cables. Since it began operation in 1998, it has expanded its market base and grown in stature. Our company has implemented ISO 9001:2008 Quality Management System to demonstrate its ability to consistently provide product that meets customer's requirements and enhance it by a way of continual improvement.
The main products
Bare Conductor (AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Our mission is to provide all services related to the wire and cable industry, so you can have the most convenient wire buying experience possible. We go out of our way to ensure that our customers receive the service and personal attention they deserve. As always, we are committed to being the best supplier in the industry.Our sales people are knowledgeable, experienced individuals that can talk directly to the end-user to obtain technical information or trouble-shoot existing issues. All of these factors make your business at Jiapu easy, cost-effective, and reliable. When your need is immediate for the wire and cable, contact us.
Factory and certificates
1. How many years has Henan Jiapu Cable Group been in production?
Founded in October 1998 by Mr. Gu, our facipty has three separate manufacturing workshops within
its 100,000-sq.-ft. building. In 2012, we operates in a new 666,000 sq. foot state-of-the-art
facipty in Xiaodian Industry Park.,Xinxiang, Henan ,China.
2. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS.
3.Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South
America,Central America,North America, Europe ,Austrapa, etc.
4. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF,
AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples
and technical specification the customer supply.
5. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires,
100 meters can be accepted .But for the power cables with medium or high voltage, that should
comply with the property of installed equipments. Anyhow,we will try our best to solve the
problem and meet with the requirement If you have special request.
6. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends
on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated
aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.
7. Do you supply the customers with installation service in foreign country ?
We don’t have professional installation teams in foreign country.But if that is necessary, we
will recommend our partners to cooperate with you.
8. Can't find what we're looking for in your catalogue?
Call one of our experienced sales reps at 0086 371 68665329. They can quote you on any type of
products you need, or you can send your inquiry and question to our email.
