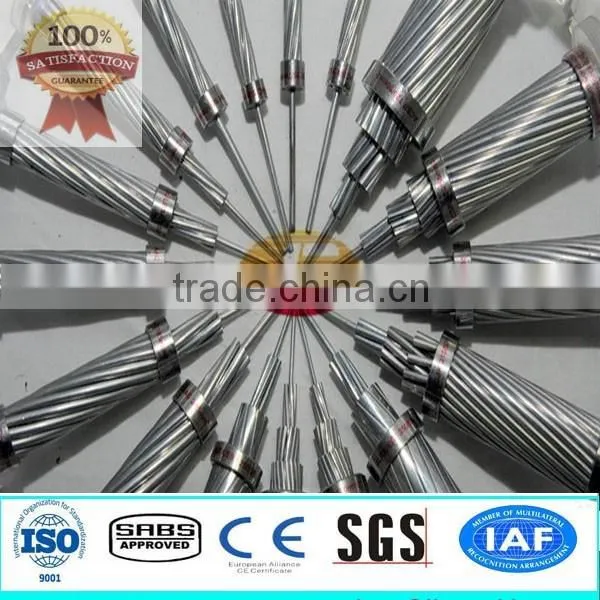

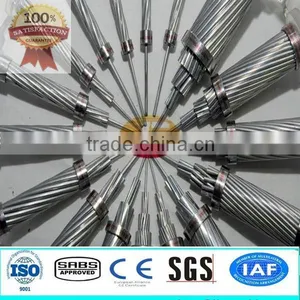

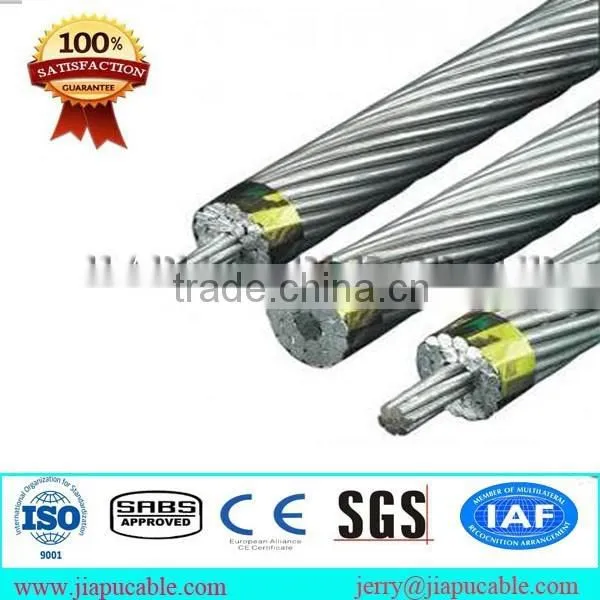

AAAC Conductor(all aluminum alloy conductor)
|
AAAC Technical Characters Based on Standard BS EN50182 |
|||||||
BS EN50182 | ||||||||
Code |
Old Code |
Cross section |
No. of wires |
Diameter |
Mass per unit length |
Rated strength |
DC resistance at 20℃ |
|
Wire |
Conductor |
|||||||
mm2 |
|
mm |
mm |
kg/km |
KN |
Ω/km |
||
19-Al3 |
BOX |
18.8 |
7 |
1.85 |
5.55 |
51.4 |
5.55 |
1.7480 |
24-Al3 |
ACACIA |
23.8 |
7 |
2.08 |
6.24 |
64.9 |
7.02 |
1.3828 |
30-Al3 |
ALMOND |
30.1 |
7 |
2.34 |
7.02 |
82.2 |
8.88 |
1.0926 |
35-Al3 |
CEDAR |
35.5 |
7 |
2.54 |
7.62 |
96.8 |
10.46 |
0.9273 |
42-Al3 |
DEODAR |
42.2 |
7 |
2.77 |
8.31 |
115.2 |
12.44 |
0.7797 |
48-Al3 |
FIR |
47.8 |
7 |
2.95 |
8.85 |
130.6 |
14.11 |
0.6875 |
60-Al3 |
HAZEL |
59.9 |
7 |
3.30 |
9.90 |
163.4 |
17.66 |
0.5494 |
72-Al3 |
PINE |
71.6 |
7 |
3.61 |
10.80 |
195.6 |
21.14 |
0.4591 |
84-Al3 |
HOLLY |
84.1 |
7 |
3.91 |
11.70 |
229.5 |
24.79 |
0.3913 |
90-Al3 |
WILLOW |
89.7 |
7 |
4.04 |
12.10 |
245.0 |
26.47 |
0.3665 |
119-Al3 |
OAK |
118.9 |
7 |
4.65 |
14.00 |
324.5 |
35.07 |
0.2767 |
151-Al3 |
MULBERRY |
150.9 |
19 |
3.18 |
15.90 |
414.3 |
44.52 |
0.2192 |
181-Al3 |
ASH |
180.7 |
19 |
3.48 |
17.40 |
496.1 |
53.31 |
0.1830 |
211-Al3 |
ELM |
211.0 |
19 |
3.76 |
18.80 |
579.2 |
62.24 |
0.1568 |
239-Al3 |
POPLAR |
239.4 |
37 |
2.87 |
20.10 |
659.4 |
70.61 |
0.1387 |
303-Al3 |
SYCAMORE |
303.2 |
37 |
3.23 |
22.60 |
835.2 |
89.40 |
0.1095 |
362-Al3 |
UPAS |
362.1 |
37 |
3.53 |
24.70 |
997.5 |
106.82 |
0.0917 |
479-Al3 |
YEW |
479.0 |
37 |
4.06 |
28.40 |
1319.6 |
141.31 |
0.0693 |
498-Al3 |
TOTARA |
498.1 |
37 |
4.14 |
29.00 |
1372.1 |
146.93 |
0.0666 |
587-Al3 |
RUBUS |
586.9 |
61 |
3.50 |
31.50 |
1622.0 |
173.13 |
0.0567 |
659-Al3 |
SORBUS |
659.4 |
61 |
3.71 |
33.40 |
1822.5 |
194.53 |
0.0505 |
821-Al3 |
ARAUCARIA |
821.1 |
61 |
4.14 |
37.30 |
2269.4 |
242.24 |
0.0406 |
996-Al3 |
REDWOOD |
996.2 |
61 |
4.56 |
41.00 |
2753.2 |
293.88 |
0.0334 |
Note:
Due to the limited space, all kinds of spec. can't be shown here. For more spec. request, please contact me freely.

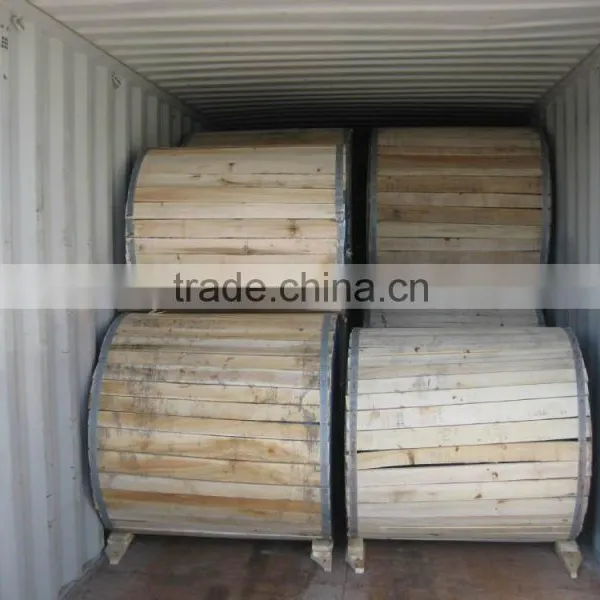

Packaging we used for wire or cable:
1) All wooden drum
2) Iron - wooden drum
3) All iron drum
Shipping by container.
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia and so on. Welcome your OEM and ODM orders.
Our main products are as follows:
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;

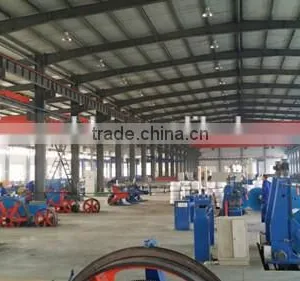

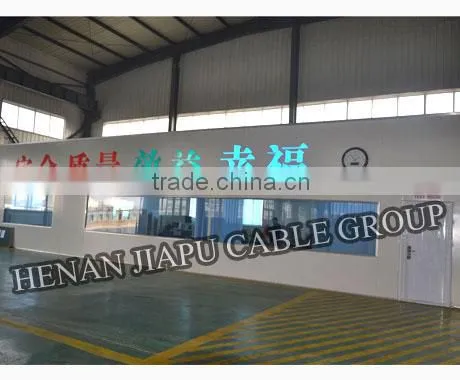

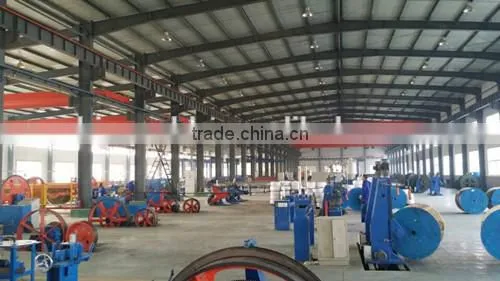

Workshop and Inspection

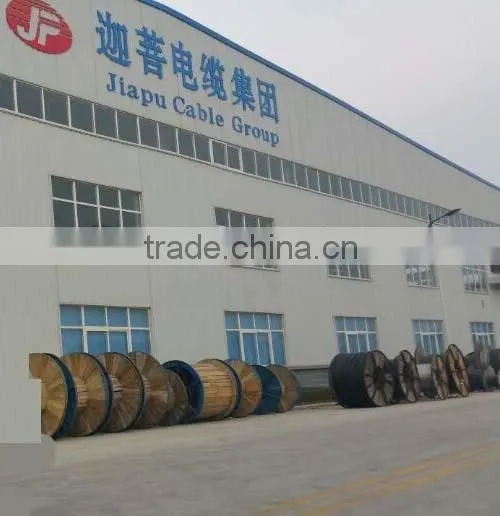

1. How many years has Henan Jiapu Cable Group been in production?

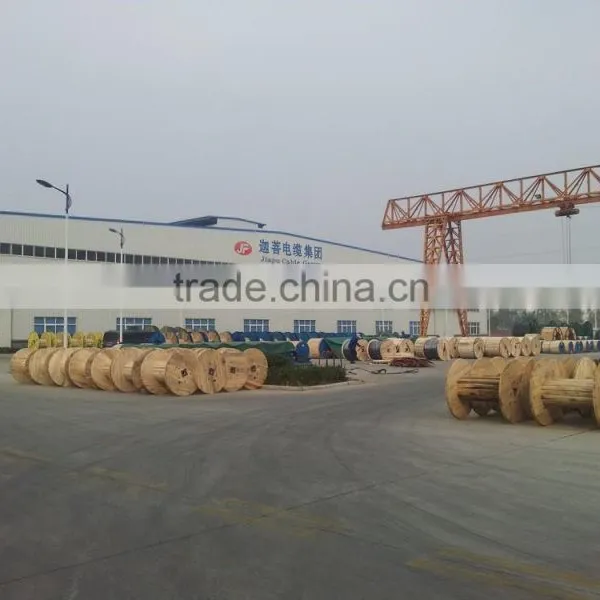

Founded in October 1998 by Mr. Gu, our facility has three separate manufacturing workshops within its 100,000-sq.-ft. building. In 2012, we operates in a new 666,000 sq. foot state-of-the-art facility in Xiaodian Industry Park.,Xinxiang, Henan ,China
2. What kinds of products does Jiapu Cable manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;

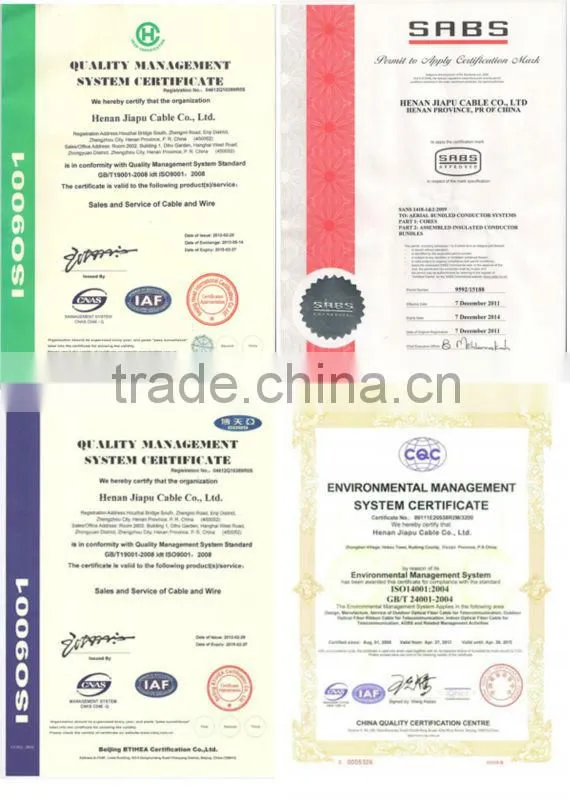

3. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS
4.Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc.
5. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
6. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.
7. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.
8. Do you supply the customers with installation service in foreign country ?
We don’t have professional installation teams in foreign country.But if that is necessary, we will recommend our partners to cooperate with you.
