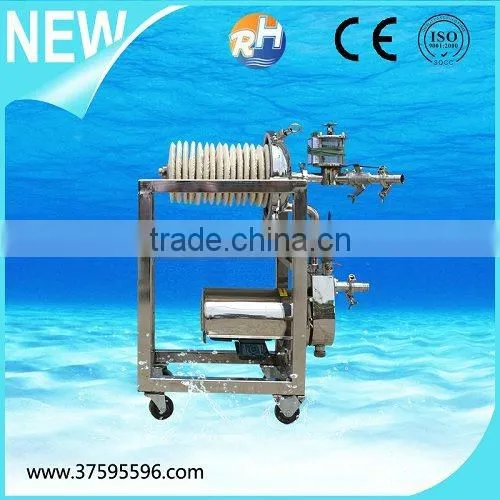

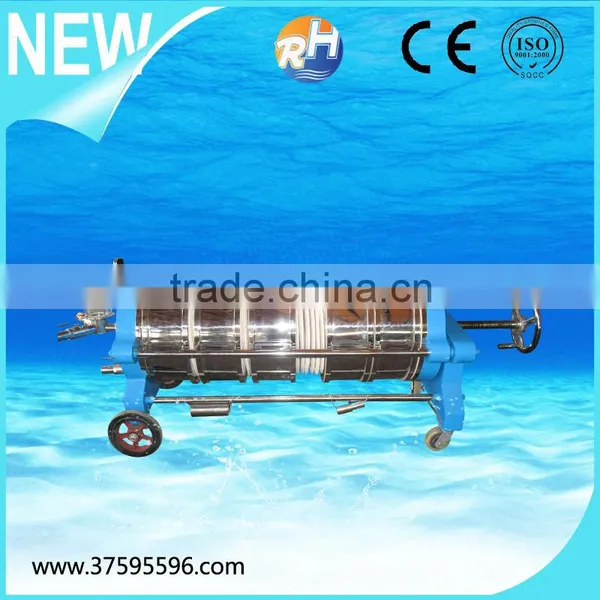

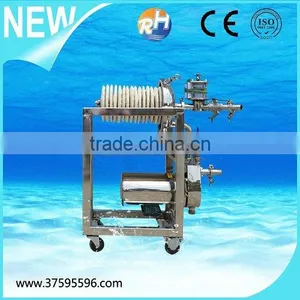

Stainless Steel Diatomite Filter for Beverage
US$ 900.00 - 900.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Filter
Medium Material:
Other, filter membrane
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
White Liquor Beer Fruit Juice Industry Diatomite FilterUS$ 22,000 - 50,000MOQ: 1 Set -
Beer Fruit Juice Industry White Liquor Kieselguhr FilterUS$ 700 - 30,000MOQ: 1 Set
-
Semi Automatic Disc Type Juice Kieselguhr FilterUS$ 4,200 - 50,000MOQ: 1 Set
-
Industrial Kieselguhr Water Filter for FactoryUS$ 10 - 10,000MOQ: 1 Unit
-
Diatomaceous Earth Filter Water Filter CandleUS$ 1,000 - 100,000MOQ: 1 Set
Condition
New
Type
Other, Filter
Medium Material
Other, filter membrane
Place of Origin
Shanghai, China
Brand Name
RUNLAN
Model Number
RL400A
Voltage
220V
Power(W)
220/380V 50/60HZ
Dimension(L*W*H)
900mmx540mmx1550mm
Weight
200kg
Certification
ISO 9001:2008
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Basic Info.
Additional Info.
Product Description
Why chose RL Filtration
------Professional manufacture of filter and filter element since 2008!
------Superior quality products with reasonable price!
------Best pre-sale and after-sale service!
Description
Diatomite filter
Diatomite filter is suitable for white wine, fruit wine, wine,
health wine, beverage, syrup, soy sauce, vinegar, and medicine,
biological, chemical and other clear filtration of liquid products.
Advantage
1. Completed enclosed filtering, no leaking and no environmental pollution.

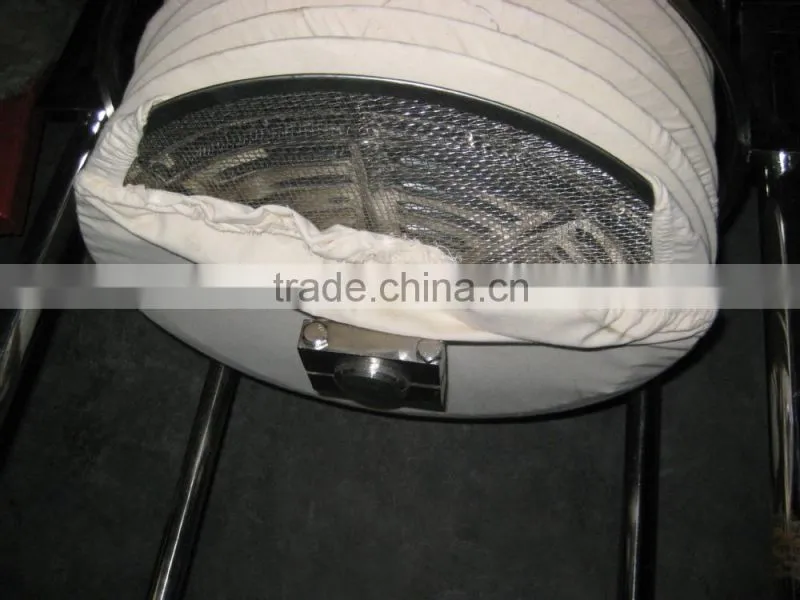

2. Filter element is made of food grade stainless steel wedge wire wrapped screen with high roundness and concentricity.
3. Clean and dry filter cake to obtain maximum economic benefit.
Application
1.Beverage industry: fruit and vegetable juices, tea drinks, such as beer and all kinds of wine.
2.Sugar industry: sucrose, glucose syrup, honey.
3.Pharmaceutical industry: synthesis of plasma, antibiotics, vitamins, herbal extract
4.Condiment: soy sauce, vinegar, wine, etc
5.Chemical products: resins, mineral acids, organic acids, alcohols, benzene, aldehydes and ethers.
6.Other: gelatin, bone glue, sodium alginate, vegetable oil and starch.
Technical parameter
------Professional manufacture of filter and filter element since 2008!
------Superior quality products with reasonable price!
------Best pre-sale and after-sale service!
Description
Diatomite filter
Diatomite filter is suitable for white wine, fruit wine, wine,
health wine, beverage, syrup, soy sauce, vinegar, and medicine,
biological, chemical and other clear filtration of liquid products.
Advantage
1. Completed enclosed filtering, no leaking and no environmental pollution.
2. Filter element is made of food grade stainless steel wedge wire wrapped screen with high roundness and concentricity.
3. Clean and dry filter cake to obtain maximum economic benefit.
Application
1.Beverage industry: fruit and vegetable juices, tea drinks, such as beer and all kinds of wine.
2.Sugar industry: sucrose, glucose syrup, honey.
3.Pharmaceutical industry: synthesis of plasma, antibiotics, vitamins, herbal extract
4.Condiment: soy sauce, vinegar, wine, etc
5.Chemical products: resins, mineral acids, organic acids, alcohols, benzene, aldehydes and ethers.
6.Other: gelatin, bone glue, sodium alginate, vegetable oil and starch.
Technical parameter
| Model | Dimension | Filtering area() |
Filter Plate Number(pcs) |
DN(mm) | Flow capacity T/h |
Working Pressure(mpa) |
| RL400A | 900x540x1550 | 5 | 40 | 50 | 3-5T/H | 0.3 |
| RL400B | 850x540x1250 | 2.5 | 20 | 32 | 8-9T/H | 0.3 |
| RL500A | 2400x750x850 | 15.9 | 38 | 32 | 13-15T/H | ≥0.3 |
| RL500B | 1850x750x850 | 8.9 | 20 | 32 | 8-10T/H | ≥0.3 |
| RL400A | 2350x680x800 | 9.8 | 38 | 32 | 9-12T/H | ≥0.3 |
| RL400B | 1800x680x800 | 5.1 | 19 | 32 | 6-8T/H | ≥0.3 |
| RL330A | 1700x600x750 | 3.4 | 20 | 32 | 3-5T/H | ≥0.3 |
| RL330B | 1600x600x750 | 2.5 | 15 | 32 | 2-4T/H | ≥0.3 |
| RL250 | 1100x350x450 | 2.0 | 20 | 32 | 1-3T/H | ≥0.3 |
| RL220 | 900x300x400 | 1.0 | 15 | 32 | 0.5-1.5T/H | ≥0.3 |
Packaging & Shipping
Packaging
1. All the products are packed in seaworthy wooden cases.
2. Any special requirement for package, please feel free to tell us.
Shipping
JX Filtration offer any delivery method for different quantity.
Packaging
1. All the products are packed in seaworthy wooden cases.
2. Any special requirement for package, please feel free to tell us.
Shipping
JX Filtration offer any delivery method for different quantity.
