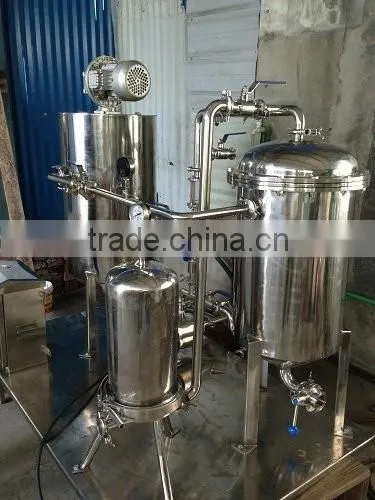

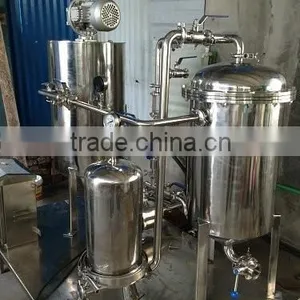

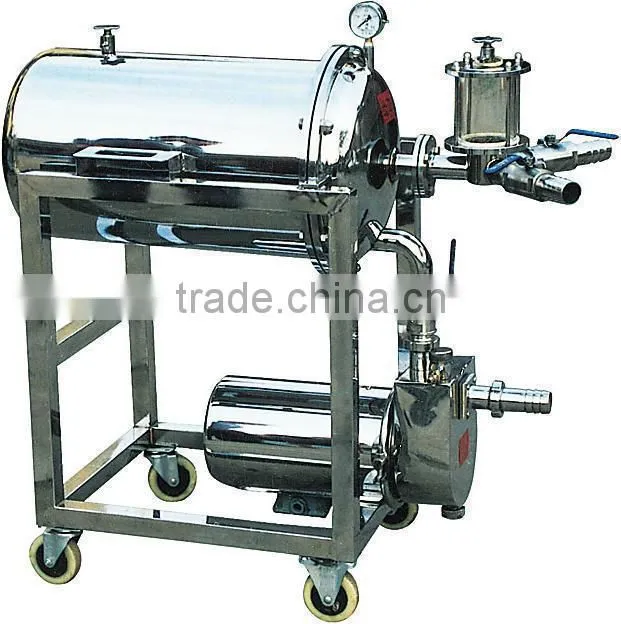

semi automatic disc type juice kieselguhr filter specification:
Diatomite round module vertical filter is an exclusive filtration machine that our company researched and developed. It has low demand on the temperature of the filtered liquid and uses diatomite as the filter aids. It has very good filtration effect for beer, wine, fruit wine, health care wine, vinegar, beverage and chemical product. Due to the last layer of the filter sheet adopts the export technology of Switzerland, it can enhance the intensity ability during the process of discharging and prolong the using life of the filter media. Furthermore, this filter sheet has replaced the filter bag of the original filtration method. The density of the sheet has been enhanced in a large degree and the using expense has been reduced. The machine is very convenient in use and it has automatic cleaning and centrifugal diatomite unloading device. The filter sheets circumvolve automatically when cleaning, so disassembling is unnecessary which leads to Low labor intensity and high production efficiency.
semi automatic disc type juice kieselguhr filter advantages:
- Precoat is homogeneous and stable. The filter media will not break off or penetrate through the filter sheet even if the pressure changed. This has enhanced the filter precision and ensured the filter quality.
- It does not need continuous working. You may stop the machine on the midway at any time and carry through re-filtration. The pre-coat will not be destroyed even with sudden power cutting.
- Filter aids’ adding and machine cleaning are using transducer with speed adjustable to control.
- covenient to use and maintain,high efficiency, low loss,SUS 304, high quality,closed filtering chamber
Main Technological Parameters:
Model |
RLKF-1.4 |
RLKF-3.8 |
RLKF-5.6 |
RLKF-9 |
RLKF-13 |
Filtration area(m2) |
1.4 |
3.8 |
5.6 |
9 |
13 |
Tank diameter(mm) |
300 |
400 |
500 |
600 |
700 |
Filtration sheet diameter(mm) |
250 |
330 |
380 |
480 |
580 |
Filtration sheet quantity |
30 |
45 |
50 |
50 |
50 |
Working pressure(Mpa) |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
Total power(kw) |
1.1 |
2.75 |
4.75 |
6.25 |
8.25 |
Inlet pipe diameter(mm) |
38 |
45 |
45 |
57 |
64 |
Outlet pipe diameter(mm) |
38 |
38 |
45 |
50 |
50 |
Our Service/ company:
Shanghai Runlan filtration equipment Co., Ltd. is a professional engaged in research, design , manufacture and sales of filtration equipment for the integration of Science & Technology entities of private joint-stock enterprise which founded in 2008. Registered capital of 3 million , 120 employees , annual turnover ( RMB ) 50 million. 2010 successfully registered "Run –Lan " trademark has become well-known brand in the industry.
Our Company:
Products Display:
Our Certificate:
Locale Experimentation:
Exhibition:
Support OEM
We are professional manufacturer of filtration equipment in China mainland with the standard and the non-standard products for any field.Such as Electronic components & Supplies Pharmaceuticals industry and so on.Everything will be refer to the customers' needs .
Factory Tour
Our factory are professional for the filter for several years , we have 120 staff now .and many of them have above 5years experience , with 3production lines and our continuous effort ,innovation ,we have got many good reputation From our customers . We are of confidence to create a great future !
Team Show
Packing and Shipping
Service Display
Customer Photo
FAQ
| 1 | Are you manufacturer? |
| Yes, we are manufacturer , our factory is located in Shanghai,China. Welcome your coming to visit us! | |
| 2 | What's your MOQ? |
| One piece sample is ok and more quantities, more favorable price | |
| 3 | Do you accept OEM? |
| Yes, we can manufacture according to your requirement | |
| 4 | What is the process to place an order ? |
| At first, you tell me which styles of products ( From our website or Send us your product's photos or the artwork ) you will need ? Second, If you need , we will provide you the details too ,as the technical parameters or the artwork for your approval . Third, After ensure the more details about the products ,we will quote you about it ,and if you accept ,PI will would like goes for you . Fourth, You need to make full payment or take 30% payment before production and 70% before shipping . | |
| 5 | Are customized products accepted? |
| We are support any of your innovative idea and also will provide you the filtering scheme for your reference . Runlan is your factory ! | |
| 6 | Any discount possible if I place an order? |
| Yes. we have different price ranges (discounts) based on different order quantities. Please contact our sales for detailed price information. | |
| 7 | How long is the delivery time ? |
| Different products and quantities have different procedures and different timing .We may promise that we can try our best to finish all of your orders within the shortest time. For more information, please contact us directly | |
| 8 | More information about the payment terms ? |
| We accept the TT , West Union and Cash . | |
| 9 | How to realize continuous filter for the bag filters? When to exchange the filter bag ? |
| A. The bag filter can be fixed in parallel and exchange the filter bag , so guarantee it can filter continuously . B. (a) refer to the experiences to make rough estimation for it . (B) Fix the pressure gage , once the differential pressure reach the section as 0.5-1kg/cm2,we will need to exchange the filter bag . |
|
| 10 | How is the quality of the filters? |
| At Sinft we insist on providing our customers with the highest quality of filtration products. As a result, all of our replacement elements are manufactured right here in China, under the most rigorous quality standards. Additionally, all of our filter elements carry six ISO Standards and we fully guarantee all of our products. |
