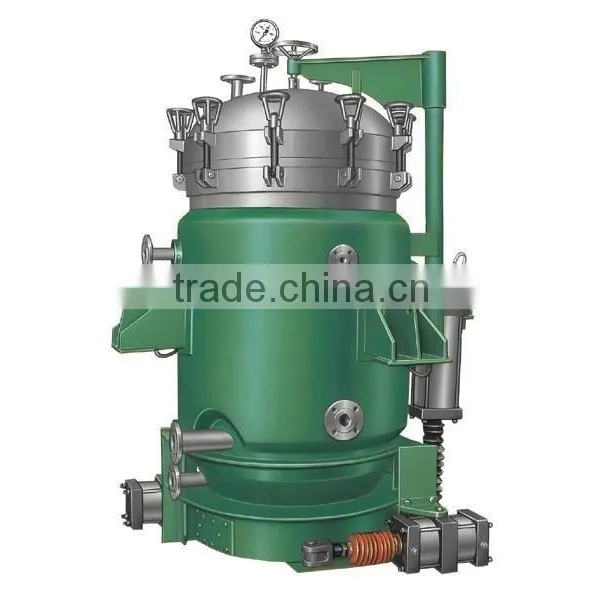

Help CenterHigh Efficiency Pressure Leaf Filter for Oil Industry Quality Choice Most Popular
Related Products
-
Oil and Fuel Filter HousingUS$ 10 - 10,000MOQ: 1 Unit -
Oil and Water Filter HousingUS$ 10 - 10,000MOQ: 1 Unit
-
NBY High Efficiency Plate Type Hermetic Filter With Mixing TankUS$ 100 - 100,000MOQ: 1 Set
-
NBY High Efficiency Plate Type Hermetic FilterUS$ 5,000 - 15,000MOQ: 1 Set
-
High Pressure Water Filter HousingUS$ 10 - 10,000MOQ: 1 Unit

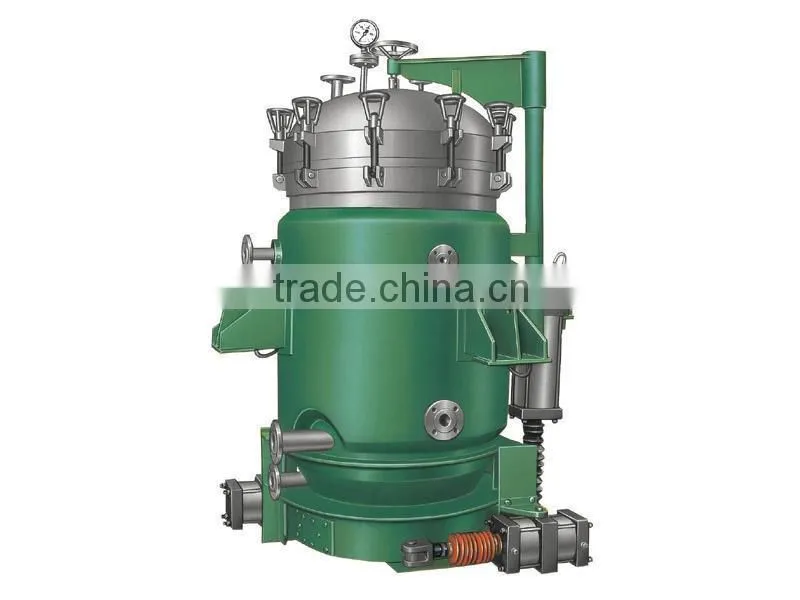

High Efficiency pressure leaf filter for oil industry specification:
Filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

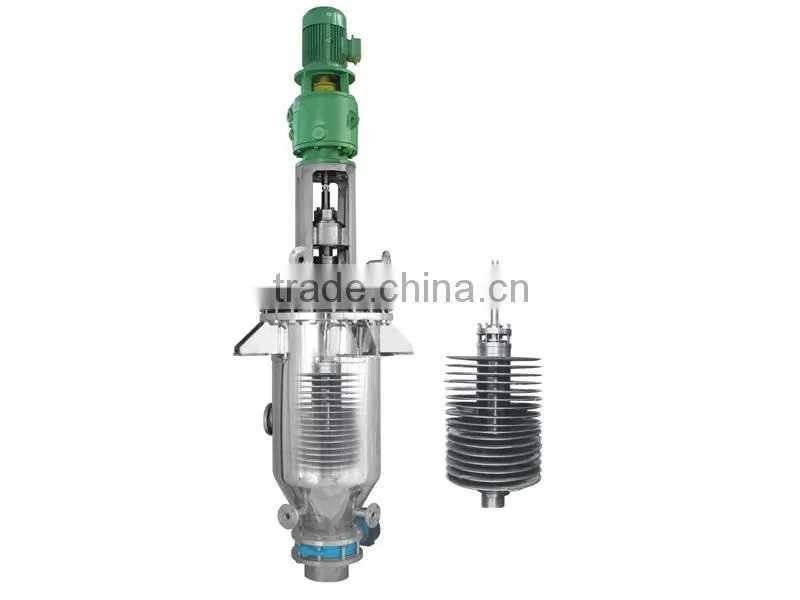

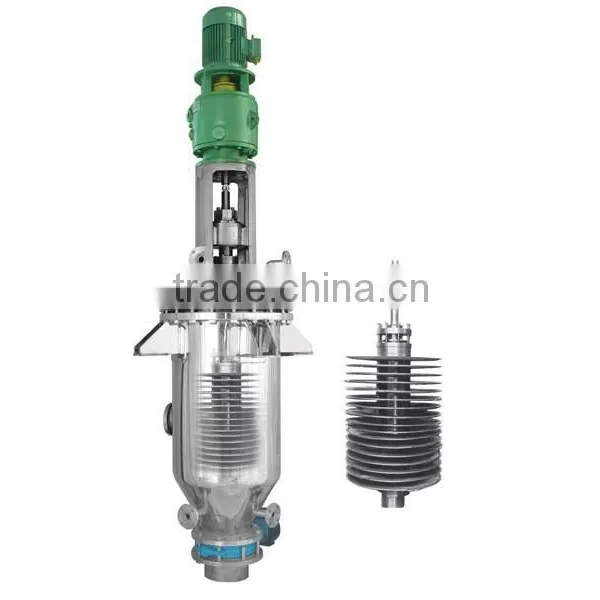

The main body of the filter is made up of vessel, filter gauzes lifting structure and automatic discharging device. Filter gauzes are made by material of multilayer stainless steel which installed at center liquid pipe and cleaned up conveniently.
Pressure leaf filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.
Since this equipment has many advantages such unique structure, compact volume, high filter efficiency, fineness of filtered liquor, no material wastage, quantity of filter aid. It can be conveniently maintained, cleaned and operated at very low cost.
Note: filtering capacity: when oil is treated, it means the filtered volume of oils containing 2-5% of whitish soil. When resin is treated, it means the average filtered volume of alkyd resins fineness of 5-15μm. Filtering capability is in relation to the impurity content of the medium to be filtered.
High Efficiency pressure leaf filter for oil industry advantages:
pact structure, small occupying area.
2.high fineness filtrate, low consumption and losses, high economic efficiency.
3.high fineness filtrate, low consumption and losses, high economic efficiency.
4.since hermetic and continuous production can be realized by connecting two filters in parallel and operating them alternately, it is high efficiency.
High Efficiency pressure leaf filter for oil industry Features:
1. Fully closed filtration, no leakage, no environmental pollution.
2. Filtration pad automatically pull the structure, easy to work in the observation and cleaning.
3. Duplex filters, large filter area, large slag amount of capacity
4. Vibration slag, reduce labor intensity
5. Hydraulic control, operational automation
6. The machine can be made into large capacity, large filtration system
Main Technological Parameters:
Model |
Filter Area (m2) |
Cylinder Diameter (mm) |
Working Pressure (Mpa) |
Working Temperature (℃) |
Working Ability (T/h.m2) |
||
|
|
|
|
|
Grease |
Resin |
Beverage |
XY-W-5 |
5 |
Ø900 Ø1200 Ø1400 Ø1500 Ø1600 Ø1700 Ø1800 Ø2000 |
0.4 |
150 |
0.2 |
0.7 |
0.8 |
XY-W-10 |
10 |
|
0.4 |
150 |
0.2 |
0.7 |
0.8 |
XY-W-15 |
15 |
|
0.4 |
150 |
0.2 |
0.7 |
0.8 |
XY-W-20 |
20 |
|
0.4 |
150 |
0.2 |
0.7 |
0.8 |
XY-W-25 |
25 |
|
0.4 |
150 |
0.2 |
0.7 |
0.8 |
XY-W-30 |
30 |
|
0.4 |
150 |
0.2 |
0.7 |
0.8 |
XY-W-35 |
35 |
|
0.4 |
150 |
0.2 |
0.7 |
0.8 |
Our Service/ company:
Shanghai Runlan filtration equipment Co., Ltd. is a professional engaged in research, design , manufacture and sales of filtration equipment for the integration of Science & Technology entities of private joint-stock enterprise which founded in 2008. Registered capital of 3 million , 120 employees , annual turnover ( RMB ) 50 million. 2010 successfully registered "Run –Lan " trademark has become well-known brand in the industry.
