supporting filling bagging machine rice bag sewing machine bag
- 300 Set / Sets per Month
- Qingdao Tianjin Shanghai Ningbo
- T/T Credit Card
- rationed weighing sweet yellow corn seed packaging machine price
- second hand used bean bag filling machine
- ration pack granulated sugar salt filling packing machine
- jute bag wheat grain automatic vertical packing machine
- portable bean bag filling packaging machine , 50kg bags packing machine
- automatic 50kg bag green mungbean bagging machine
Product Details
Condition: | New | Machine Type: | Sewing Machine | Bag Type: | Other, woven bag, jute bag |
Material: | Other, Plastic, carbon steel, stainless steel | Computerized: | No | Place of Origin: | Henan, China |
Brand Name: | Hongyuan, OEM,ODM | Model Number: | DCS-50 | Voltage: | AC220V/50HZ, AC380V/50HZ |
Power(W): | 2.2+0.25+0.37kw | Dimension(L*W*H): | 3000*1300*3300 | Weight: | 650kg |
Certification: | CE,ISO,3C | Warranty: | 13 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
In standard fumigation wooden box and loading to the contaienr
Product Description
supporting filling bagging machine rice bag sewing machine bag
The DCS series supporting filling bagging machine rice bag sewing machine bag is one kind of automatic weighing, filling, bagging, sewing machine suitable for rice bag sewing and any other granules bag sewing. It is the third generation rice filling bagging and sewing machine which invented and developed by our own technical team.
Adopts the steel frame with wheel it is easily to be moved from one point to another site in rice bagging and sewing plant. It is ideal equipment for rice sewing, bagging and filling. The bagging and filling weight can be rated from 10-80kg as per your demand.
Main other application
Applied for supporting filling bagging machine rice bag sewing machine bag , It has the following features: | |||||||

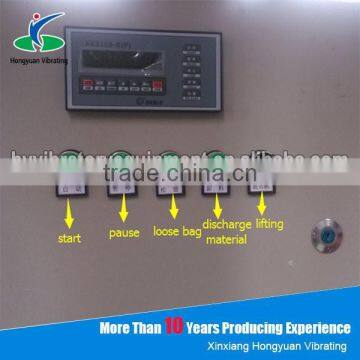

1. It is easily to see with digital screen display. | |||||||
2. Exactly to weight and high precision. | |||||||
3. Easily to set, memory, modify the weighing scales as per demand . | |||||||
4. Auto function of count the total filling tons and bag numbers | |||||||
5. Auto weighing, discharging, clamping the bags. | |||||||
6. Auto or semi-auto reduce the bags weight exclude the granules |
The big volume size can meet the needs of high filling bagging capacity.
With auto bag sewing machine, you just need to place the full bag below the bag sewing machine side, than it will automatically working, it can improve the working efficiency.

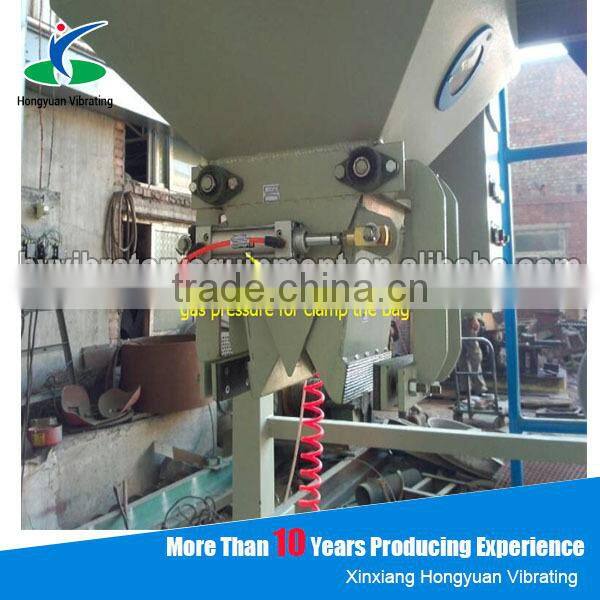

Automatically clamp the bag by the gas pressure and touch sensor
Technical Data
Model | DCS-10 | DCS-25 | DCS-50 |
Rated Packing Weight(kg) | 1-10 | 10-25 | 10-50 |
Division Value(g) | 2 | 5 | 10 |
Packing Accuracy | X(0.2) | X(0.1) | X(0.1) |
Packing Speed(bag/h) | 300-420 | 300-600 | 300-420 |
Power | AC220 150W | ||
Air | Compressed Air0.4-0.8MPa 1m³/h |
OEM, ODM Service is supported by our professional technical team.

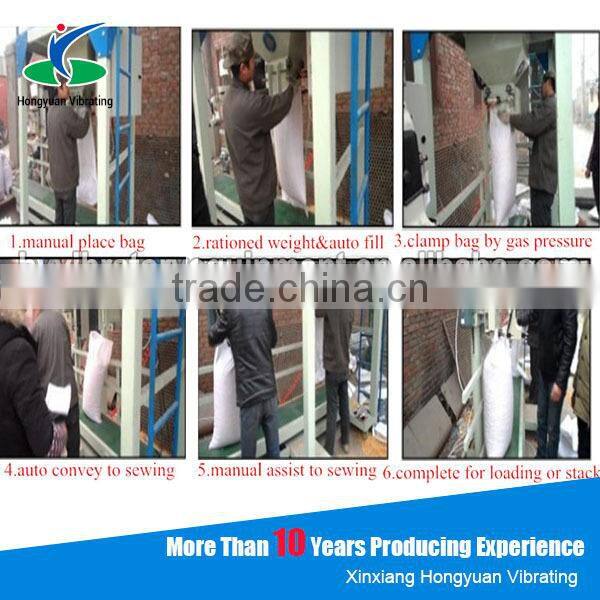

Manual Bag placing→Automatic filling→Automatic weighing→Automatic bag conveying→Automatic bag sewing/ sealing by manual assist.
1.Stretch Film inside for water corrosion and fumigation wooden box for outside packing.

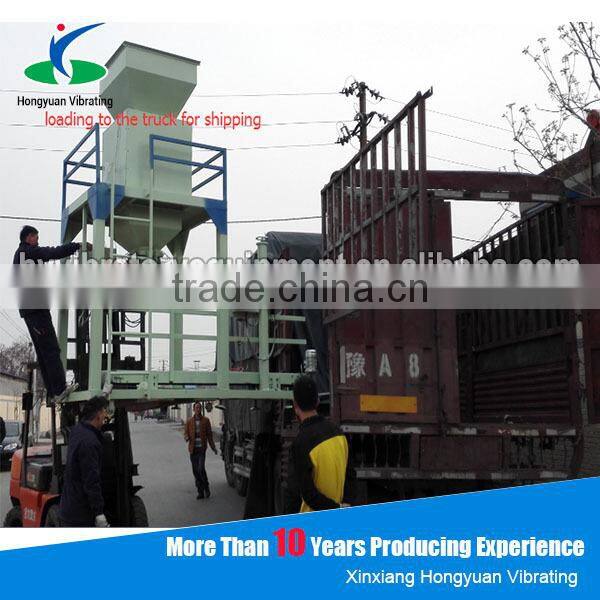

2.Loading to the container.
Please tell us your need on supporting filling bagging machine rice bag sewing machine bag demand so that we can provide you the ideal machine model.
rice paddy husk sieving and cleaning machine

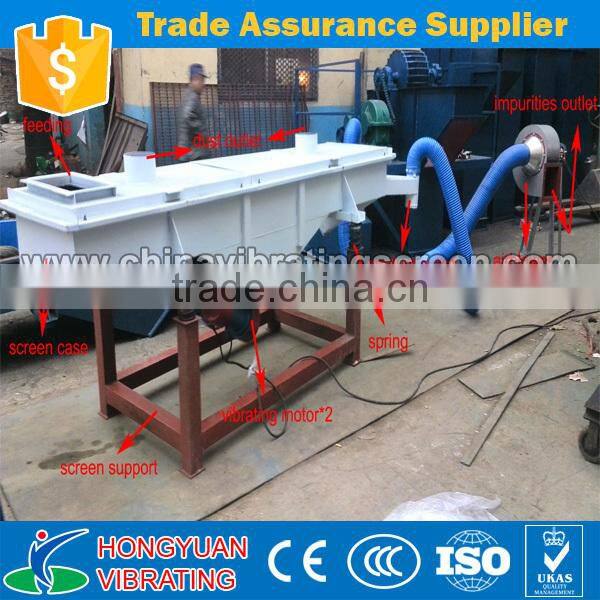

Linear Vibrating Screen for rice sorting and grading

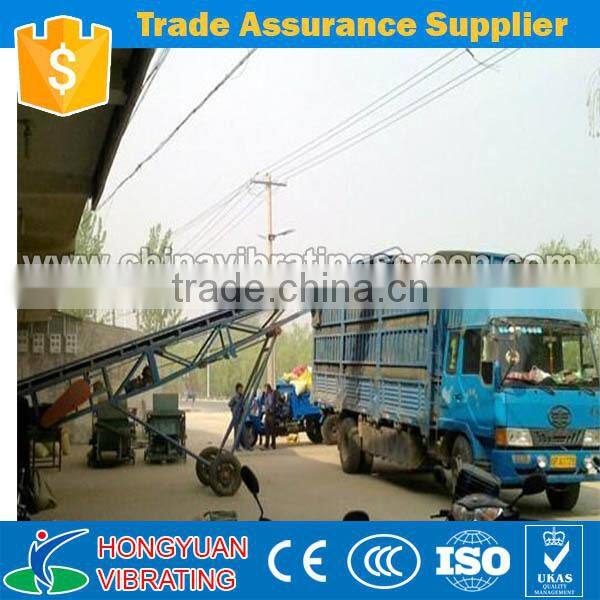

Belt conveyor for rice loading or conveying to bagging sewing machine

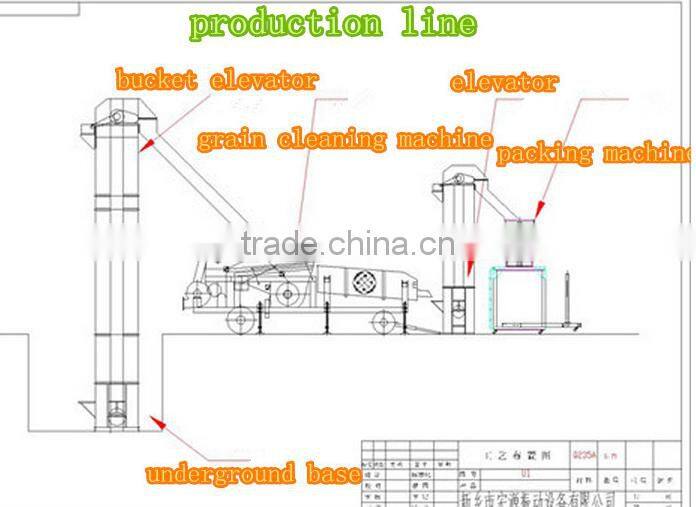

We can produce as per the customers' special needs for supporting filling bagging machine rice bag sewing machine bag. As per your demand, from rice paddy husk sieving, hoisting, conveying to packing, We can professional designe the whole production line for you.
Welcome select our supporting filling bagging machine rice bag sewing machine bag , and visit our factory. Our professinal engineers and technicians will serve you with all technical support.
skype: zhu.sunshine
Mob:+86-373-2677969
For more vibrating screen information please visit:
Company Profile
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is located in the Hi-tech Development Zone of Henan Xinxiang, which is the largest manufacturing base of vibrating screen in China. The city of Xinxiang also has the advantage of convenient transportation, as the Yellow River is in the north of it, the Beijing-Hong Kong-Macau Expressway is in the east of it, and the Beijing-Guangdong Railway is in the west of it.
The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, high-pressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and high-pressure elevator). Presently there are over 200 employees, among them, 65 have professional titles of middle and senior. In the year of 2000, the CAD work station was established by the company, which is an earlier one in the same field. Moreover, our products have scientific design, high performance and reasonable price. Depending on the first-rate products, as well as the advanced technology and equipment, highly competent personnel, strict management, and complete inspecting measures, the company has fostered a good image.
Aiming at high quality and satisfying service, and based on the principles of honesty, pragmatism, innovation and diligent, the company does welcome the old and new customers to communicate and corporate with us.
For over ten years, the company has devoted itself into the manufacture and development of vibratory equipment, which includes vibrating screen and non-vibrating screen, conveyor, feeder, vibrating motor, elevator, etc. In addition, the company not only has the excellent equipment, but also has a comprehensive marketing and after-sale service network all over Asia. Before sales, this network can provide technology support; for sales, it can provide help for business negotiation; and after sales, it can provide guide for installation and application. All in all, this network can assure you satisfying service in the whole process.
At last, the company does want to express the heartfelt thanks to the trust and support of the old and new customers. It is hoped that we can make progress and create a bright future together! Hongyuan does welcome you!
