Specifications
1.27years experience2.ISO9001,ISO14001
3.Mini order:10boxes
4.FOB price:0.15-0.3USD/M
5.Copper:24AWG
Specifications:
1)d.c resistance (max): 9.50Ω/100m at 20°C
2) D.C. resistance unbalanced (max): 2.5%
3) Mutual capacitance (max): 5.6 nF/100m
4) Capacitance unbalanced (max): 330pF/100m
5)Dielectric strength between conductors(min):2.5kV/2s;
6)Impedence:1-100MHz 100±15Ω;
7)Operating temperature:-20~+60°c.
Pairs colors:
a) White/blue b) White/orange c) White/green d)White/brown e)white/grey
f)red /blue g)red/orange h)red/green
Materials:
a) Conductor: 24AWG copper
b) Insulation: solid HDPE
c) Sheath: PVC/PE/LSNHP
Packing:
1,000 feet (305m) per box 500m - 1000m per wooden reel Custom order lengths are available upon request
Transmission performance:
| frequency (MHz) |
attenuation (Max) (dB/100m) |
NEXT (Min.) (dB/100m) |
PSNEXT (Min.) (dB/100m) |
ELFEXT (Min.) (dB/100m) |
RL (Min) (dB) |
PHASE VELOCITY (Min)(m/s) |
PHASE DELAY (Max) (ns/100m) |
| 1 | 2 | 65 | 62 | 64 | 20 | 0.585c | 570 |
| 4 | 4.1 | 56 | 53 | 52 | 23 | --- | 552 |
| 10 | 6.5 | 50 | 47 | 44 | 25 | 0.611c | 545 |
| 16 | 8.2 | 47 | 44 | 40 | 25 | --- | 543 |
| 20 | 9.3 | 46 | 43 | 38 | 25 | --- | 542 |
| 31.25 | 11.7 | 43 | 40 | 34 | 24 | --- | 540 |
| 62.5 | 17 | 38 | 35 | 28 | 22 | --- | 539 |
| 100 | 22 | 35 | 32 | 24 | 20 | 0.620c | 538 |

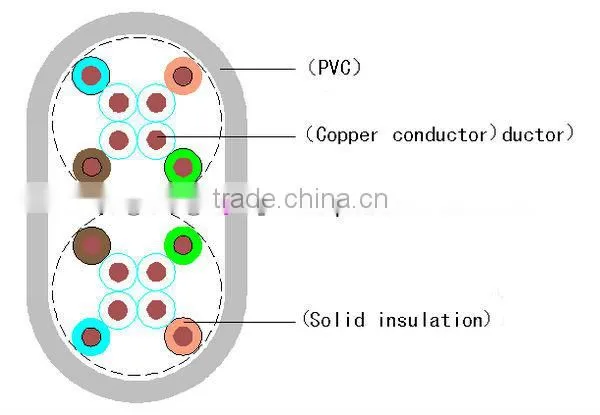

cable structure:

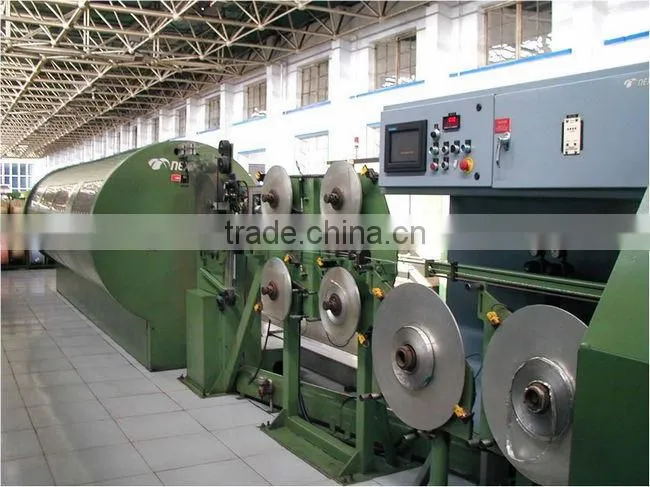

product lines:
test equipments:
