Help CenterMultipair Cat5e UTP Lan Cable Manufacturer
Related Products
-
27years Experience 24awg Tiwisted 1000m Utp Cat5e Lan CableUS$ 0.1 - 9MOQ: 10 Boxes -
Professional Manufacture Best Price Utp Cat5e Lan CableUS$ 0.1 - 9MOQ: 10 Boxes
-
Mutltipair Top Quality 24awg Twisted Custom Color Lan Network CableUS$ 0.1 - 9MOQ: 10 Boxes
-
FTP/UTP 25pairs 24awg Best Price Cat5e Lan CableUS$ 20 - 200MOQ: 100 Boxes
-
Top Quality Cheaper Price FTP Cat5e Lan Cable 25pr 24awgUS$ 20 - 200MOQ: 100 Boxes
Specifications
1.27 years experience2.24AWG copper
3. ISO 9001,ISO14001
4.Mino order:10boxes,customer's demands
5.FOB price:$0.1-$9/meter
Specifications:
1) Resistance (max): 9.50ohm/100m at 20°C
2) D.C. resistance unbalanced (max): 2.5%
3) Mutual capacitance (max): 5.6 nF/100m
4) Capacitance unbalanced (max): 330pF/100m
5) Impedance:1-100MHz 100±15ohm
6) Differential phase delay(max):30ns/100m;
7) Operating temperature:-20~+60°C
8) Permitted bend radius:10times diameter of the cable.
9) Pairs colors: 1) White/blue 2) White/orange 3) White/green 4) White/brown 5) white/grey
6)red/blue 7) red/orange 8) red/green 9) red /brown 10 red /grey
11) black/blue 12) black/orange 13)black/green 14)black/brown 15)black/grey
16)yellow/blue 17)yellow/orange 18)yellow/green 19)yellow/brown 20)yellow/grey
21)violet/blue 22)violet/orange 23)violet/green 24)violet/brown 25)violet/grey
10) Materials: a) Conductor: 24 AWG copper
b) Insulation: solid HDPE
c) Sheath: PVC/PE/LSNHP
Packing:
1,000 feet (305m) per box 500m - 1000m per wooden reel Custom order lengths are available upon request
Application:
10 Base-T
100Base-T4
100Base-TX
100Base-VG-ANYLAN
155Mbps ATM
622 Mbps ATM
1000Base-T
Standards:
ISO/IEC11801
ANSI/TIA/EIA-568-B.2
Features of product:
1.more bandwith excess than 100MHz standard required;
ply with ROHS standard;
3.the products of special outer sheath or purpose can be designed according to customer's demands.

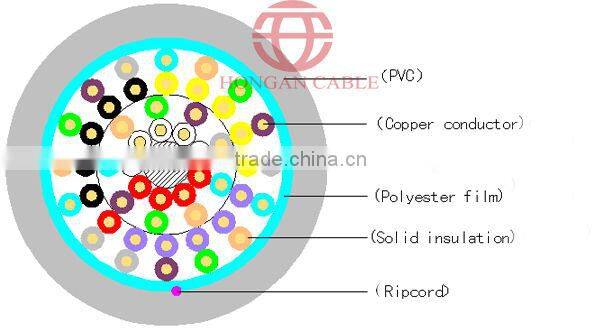

Cable structure:
Transmission performance:
| frequency (MHz) |
attenuation (Max) (dB/100m) |
NEXT (Min.) (dB/100m) |
PSNEXT (Min.) (dB/100m) |
ELFEXT (Min.) (dB/100m) |
RL (Min) (dB) |
PHASE VELOCITY (Min)(m/s) |
PHASE DELAY (Max) (ns/100m) |
| 1 | 2 | 65 | 62 | 64 | 20 | 0.585c | 570 |
| 4 | 4.1 | 56 | 53 | 52 | 23 | --- | 552 |
| 10 | 6.5 | 50 | 47 | 44 | 25 | 0.611c | 545 |
| 16 | 8.2 | 47 | 44 | 40 | 25 | --- | 543 |
| 20 | 9.3 | 46 | 43 | 38 | 25 | --- | 542 |
| 31.25 | 11.7 | 43 | 40 | 34 | 24 | --- | 540 |
| 62.5 | 17 | 38 | 35 | 28 | 22 | --- | 539 |
| 100 | 22 | 35 | 32 | 24 | 20 | 0.620c | 538 |

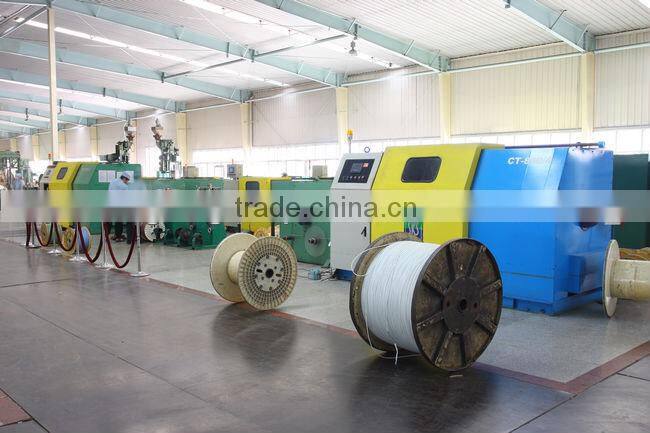

product lines:
Test equipments:
