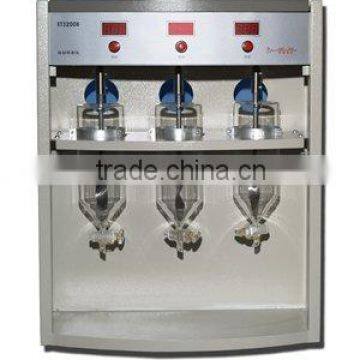

ET3200B Extraction System

Churning method has been used to mix the extract well in order to achieve the best liquid which is the liquid extraction results. It gets the extract thru the piston valve after stratification.

It can replace the artificial liquid mixing to achieve semi-automatic of liquid (liquid extraction).

It can be widely used in environmental protection, pharmacertical, and other fields.

It can be used with our ET1200 Infrared Photometric Oil Analyzer (Oil in water analyzer) for sample preparation.

Specifications

Extraction capacity: 500ml X 3

Work method: Mixing Method

Power Supply: 220V/50Hs

Instrument Power: 30W

Dimensions: 562 X 240 X 460mm

Net weight: 15.7 kg

Extraction efficiency: >= 95%

Timer: Use the time delay to control the total extraction time

Instrument Working conditions

It should be placed in clean and tidy, well ventilated room. The table should be sturdy and stable. It also needs good grounding equipment. When using toxic organic solvents the extraction instrument should be placed in a fume hood in order to reduce the harm on the human body.
