AC/DC Power Energy meter

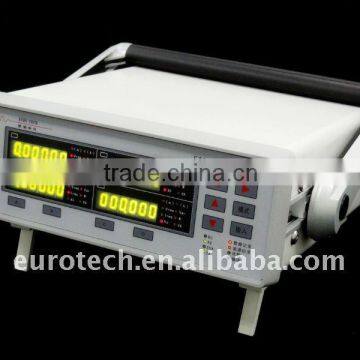

ET9300 is a new generation and user friendly power meter, not only be able to measure consumption power (kW), but also the consumption of energy (kWh) and the corresponding CO2 emissions. The additional CO2 emission readings help people calculate their carbon footprint and motivate them to save energy.

Remark: Certified for FCC and EMC; and CE approved

Features

* Specifically designed and optimized for power energy measurement.
* Electric energy converted to CO2 emissions (5 combination of emission coefficient is possible).
* Display of True Power Factor, Active Power. Reactive Power, Apparent Power and +ve/-ve Integration Power.
* True RMS for Voltage and Current.
* DC Power Measurement.
* Small Current measurement down to 10mA (resolution: 0.1mA).
* 10 set programmable limits for general data comparison test.
* 500 set general data recording (minimum 1sec interval).
* 150 set energy data recording (minimum 1sec interval).
* Data memory can be extended (optional).
* 16 bits A/D converter.
* RS232 Computer interface w/ software for data transfer to PC.
* Data acquisition software for Windows (optional)

* Frequency range 45Hz to 65 Hz

* Option: Able to use external CT for high current inspection

Voltage: 10V to 600V AC +/-0.3%, 10V to 750V DC +/-0.5%
Current: 10-200mA AC/DC +/-0.5%, 0.2-20A AC/DC +/-0.5%
Active Power: 10mW to 15kW +/-0.5%
Power factor: 0 to +/-1 +/-0.5%
Energy (kWh): 999999kWh +/-0.5%
Frequency: DC/ AC 45-65 Hz +/-0.3%

* Dimensions: 320(D) x 310(W) x 150(H) mm
* Weight: 4.1Kg

* Power Supply: 110V/220VAC, 50/60Hz
* Operating Temperature: 0 ~ 45°C
