Descriptions

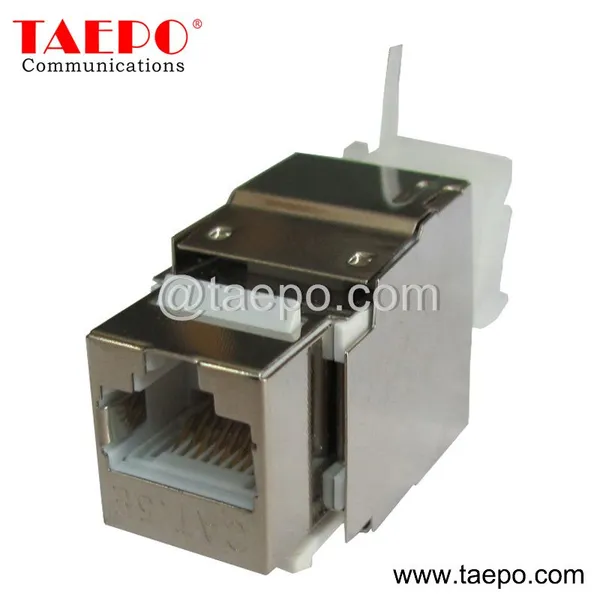

A "180-degree CAT5E RJ45 8P8C AP style STP shielded Keystone jack" is a type of network connector used to terminate and connect CAT5E shielded twisted pair (STP) cables in structured cabling systems.
Here's a breakdown of its components:
180-degree Design: This indicates the termination points on the jack. In a 180-degree jack, the cable is terminated at the back, directly opposite the insertion point of the RJ45 plug. This design is common for installations where space behind the jack is limited.
CAT5E: This refers to the category of the cable the jack is designed to work with. CAT5E (Category 5 Enhanced) cables support Ethernet networks with speeds up to 1 Gbps and a frequency of up to 100 MHz.
RJ45 8P8C: RJ45 is the standard type of connector used for Ethernet networking. The "8P8C" stands for "8 Position 8 Contact," meaning there are eight positions for wires and eight corresponding contacts, which is standard for Ethernet connectors.
AP Style: "AP" likely refers to a specific style or format that is compatible with a particular type of wall plate or patch panel system, often used in structured cabling.
STP (Shielded Twisted Pair): Indicates that the jack is designed for use with shielded twisted pair cables. Shielding helps protect the cable from electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring better performance in environments with high interference.
Shielded Keystone Jack: The shielding in the Keystone jack ensures that the shielding of the STP cable is maintained through the connection, providing continuous protection against interference. This is crucial for maintaining the integrity of high-speed data transmissions.
This type of Keystone jack ensures high-quality network performance and protection against interference, making it a reliable choice for many networking environments.
Main Features
180-Degree Termination:
Design: The jack's termination points are located directly opposite the insertion point of the RJ45 plug, facilitating cable management and installation in tight spaces.
CAT5E Compatibility:
Cable Type: Supports CAT5E (Category 5 Enhanced) cables, which are designed for Ethernet networks and support speeds up to 1 Gbps and a frequency of up to 100 MHz.
RJ45 8P8C Connector:
Standard Interface: Utilizes the RJ45 interface with 8 positions and 8 contacts, which is the standard for Ethernet network connections, ensuring wide compatibility with networking equipment.
AP Style:
Compatibility: The AP style refers to a specific format or mounting style that fits particular wall plates or patch panel systems, often used in structured cabling systems.
Shielded Twisted Pair (STP) Support:
EMI/RFI Protection: Designed for use with shielded twisted pair cables, providing protection against electromagnetic interference (EMI) and radio frequency interference (RFI), which helps maintain signal integrity in noisy environments.
Shielded Keystone Jack:
Continuous Shielding: Features a shielded housing to maintain the cable's shielding through the connection point, ensuring continuous protection against interference.
Durability: The shielded design adds robustness and durability to the connection, protecting it from physical damage and signal degradation.
Ease of Installation:
Modular Design: Fits into standard Keystone wall plates and patch panels, allowing for flexible and organized installations.
Tool-less or Tool-based Termination: Depending on the model, it may offer tool-less snap-in installation or require a punch-down tool for cable termination.
High Performance:
Bandwidth and Speed: Supports high-speed data transmission, making it suitable for gigabit Ethernet networks and applications requiring high data integrity.
Reduced Crosstalk: The shielding and proper cable termination help reduce crosstalk and interference between cables, improving network performance.

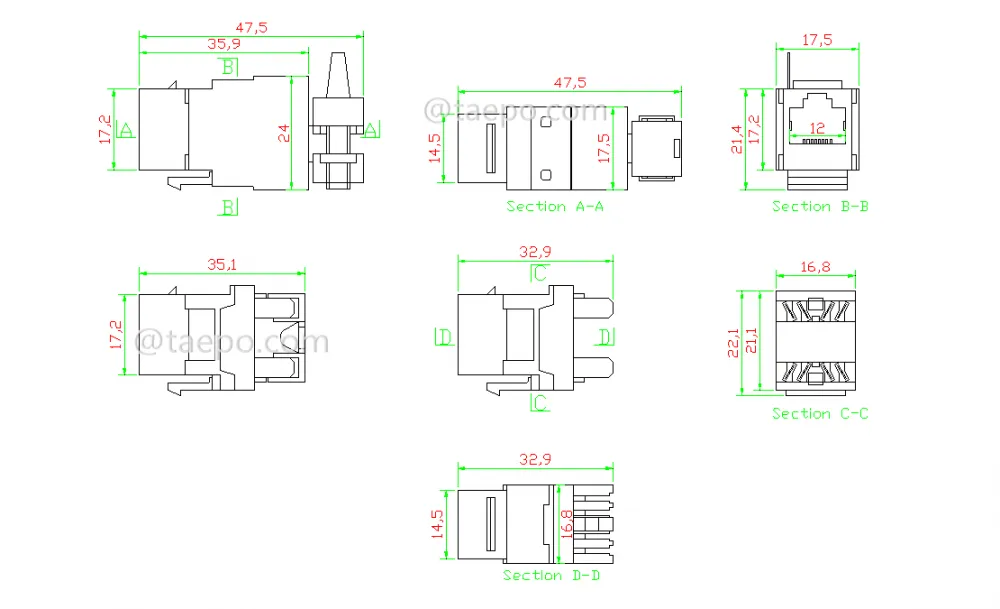

Schematic Diagrams
Packing Pictures
Order Data
| Item No | Descriptions |
| TP-5209-C5ES8 | Keystone jack, CAT5E, STP, 8P8C, 180 degree, AP style |
| TP-5209-C65ES8 | Keystone jack, CAT6, STP, 8P8C, 180 degree, AP style |
