Help CenterSample Free AP Style CAT3 6P4C RJ11 90 Degree Network Telephone Keystone Jack From China Factory TAEPO
Related Products
-
Sample Free UTP 8P8C 90 Degree Network CAT5E CAT6 RJ45 Keystone Jack From China Factory TAEPOUS$ 0.25 - 0.5MOQ: 1000 Pieces -
Sample Free CAT5E CAT6 UTP Unshielded 8P8C AP Style 180 Degree Keystone Jack From China Factory TAEPOUS$ 0.25 - 0.5MOQ: 2000 Pieces
-
Sample Free 180 Degree CAT5E CAT6 RJ45 8P8C AP Style STP Shielded Keystone Jack From China Factory TAEPOUS$ 0.7 - 1.5MOQ: 2000 Pieces
-
Good Price 180 Degree RJ45 to RJ45 UTP 8P8C CAT5E Inline Coupler From China Factory TAEPOUS$ 0.05 - 0.1MOQ: 1000 Pieces
-
180 Degree CAT6A 8P8C RJ45 STP Shielded Keystone Modular Jack From China Factory TAEPOUS$ 0.9 - 1.5MOQ: 1000 Pieces
Service & Certificate
Descriptions
A CAT3 6P4C Keystone jack (TP-5202-C3U4) is a type of modular connector that is designed to be installed in a wall plate or patch panel. The jack has six positions and four contacts, also known as 6P4C.
CAT3 refers to the category of the cable that is compatible with this keystone jack. CAT3 cables are typically used for voice and low-speed data applications, with a maximum data rate of 10 Mbps.
The keystone jack is usually made of plastic and has a rectangular shape with a small opening at the front where the cable is inserted. The contacts inside the jack are designed to make a reliable connection with the wires in the cable, ensuring clear and consistent signal transmission.
CAT3 6P4C Keystone jacks are commonly used in telephone and network installations, as they provide a simple and efficient way to connect cables to wall plates or patch panels. They are also compatible with a wide range of other modular connectors, allowing for flexible and customizable installations.
Main Features
Durability: The jack is made of high-impact, flame-retardant plastic to ensure long-lasting durability and safety.
Ease of installation: The keystone jack is designed for quick and easy installation using a punch-down tool. The jack typically features color-coded wiring labels to make it easy to install the wires correctly.
IDC termination: The jack uses Insulation Displacement Connector (IDC) technology to terminate the cable. This means that the wires are inserted into the jack and then clamped down, without the need for any special tools or soldering.
Color-coded wiring: The jack typically has color-coded wiring labels, which make it easy to match up the wires from the cable to the correct pins on the jack.
Compatibility: The CAT3 6P4C Keystone jack is designed to be compatible with a wide range of CAT3 cables, which typically have a maximum data rate of 10 Mbps

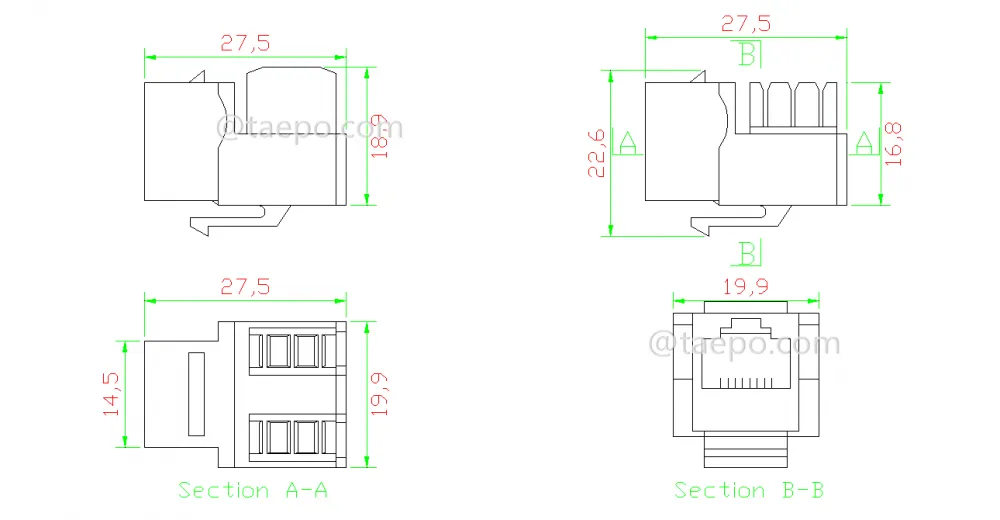

Schematic Diagrams

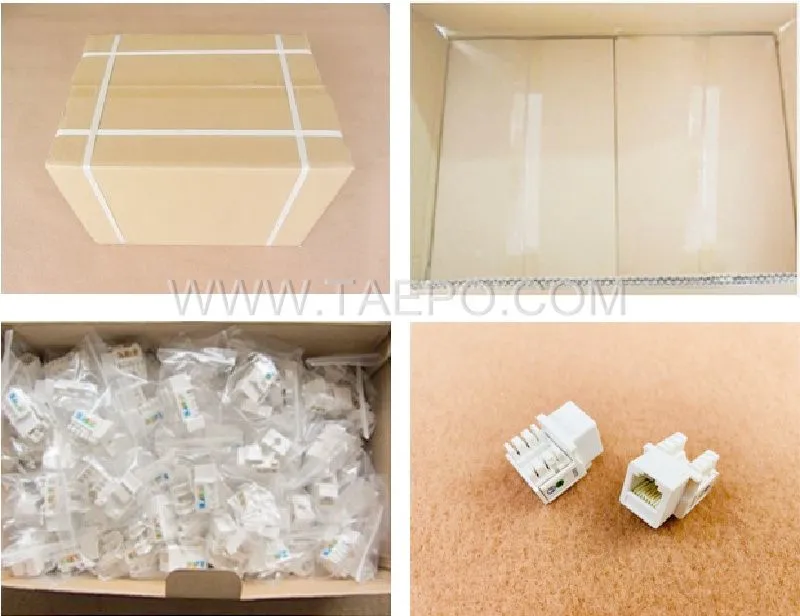

Packing Pictures
Order Data
| Item No | Descriptions |
| TP-5202-C3U4 | Keystone jack, CAT3, 6P4C, 90 degree, AP style |
