Descriptions
A CAT5E or CAT6 UTP keystone jack (TP-5202-C5EU8, TP-5202-C6U8) is a type of connector used to terminate twisted-pair network cables in structured cabling systems. The keystone jack typically has an RJ45 connector, which is the most common type of connector used in Ethernet networks.
CAT5E CAT6 UTP keystone jacks are designed for use with CAT5E CAT6 Ethernet cables, which support data rates up to 1 Gbps (Gigabit per second) and frequencies up to 100 MHz. The keystone jack follows the T568A or T568B wiring scheme, which determines the pinout of the connector and affects how the cable is terminated.
The keystone jack is designed to work with unshielded twisted pair (UTP) cables, which are the most common type of Ethernet cables used in structured cabling systems. UTP cables consist of four pairs of twisted wires, with no shielding or grounding.
To install the keystone jack, it is inserted into a keystone wall plate, which is mounted in a standard wall box. The keystone jack snaps into the wall plate and is secured using a retaining clip. The cable is then terminated onto the keystone jack using a punch-down tool, which cuts and terminates the wires into the appropriate slots in the connector.
Main Features
Compatibility: It is designed to be used with Cat5e Ethernet cables, which are commonly used for 10/100/1000BASE-T networks.
Performance: The keystone jack is rated for 100 MHz bandwidth and can support data transfer rates of up to 1 Gbps.
Durability: The jack is made of high-impact, flame-retardant plastic to ensure long-lasting durability and safety.
Ease of installation: The keystone jack is designed for quick and easy installation using a punch-down tool. The jack typically features color-coded wiring labels to make it easy to install the wires correctly.
Standardization: The Cat5e UTP keystone jack is designed to conform to industry standards such as TIA/EIA-568-C.2 and ISO/IEC 11801, ensuring compatibility with other networking equipment and cabling systems.
Versatility: The keystone jack is designed to fit into standard keystone wall plates and patch panels, allowing for easy customization and configuration of network connections.

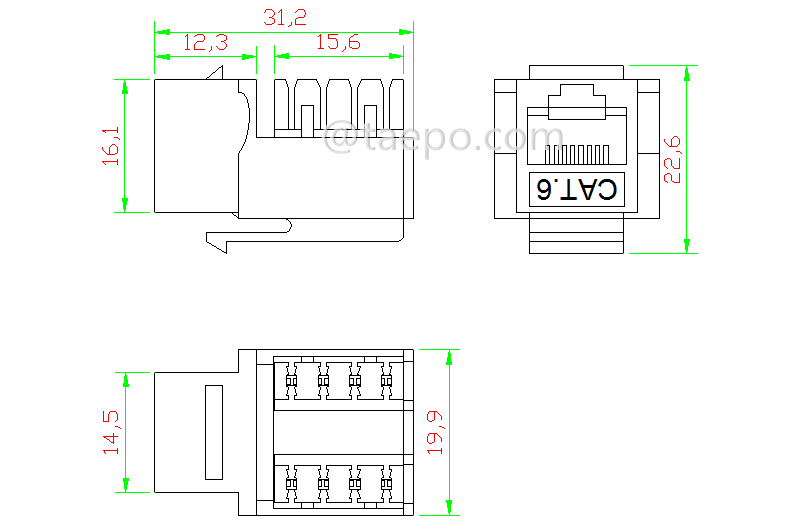

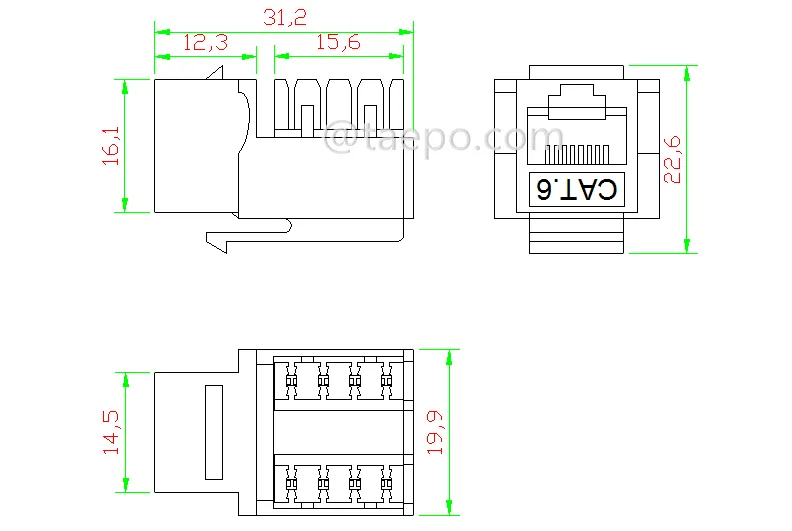

Schematic Diagrams

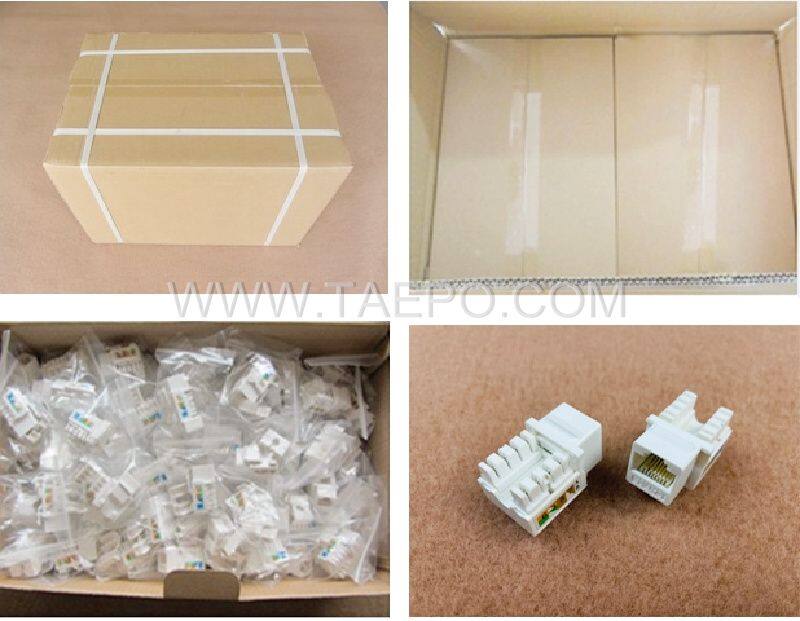

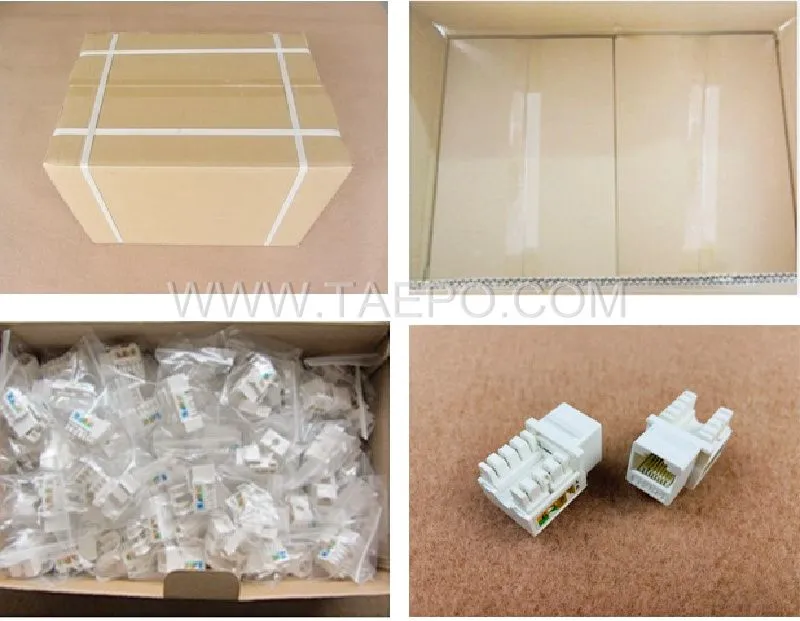

Packing Pictures
Order Data
| Item No | Descriptions |
| TP-5202-C5EU8 | Keystone jack, CAT5E, UTP, 8P8C, 90 degree, AP style |
| TP-5202-C6U8 | Keystone jack, CAT6, UTP, 8P8C, 90 degree, AP style |
