Descriptions
A "CAT6 UTP unshielded 8P8C AP style 180 degree Keystone jack" refers to a type of network connector that is used primarily in structured cabling environments, such as in Ethernet networks.
Here's a breakdown of what each term typically means:
CAT6: This refers to Category 6 Ethernet cable, which is a standardized twisted pair cable for Ethernet and other network physical layers that is backward compatible with the Category 5/5e and Category 3 cable standards.
UTP: Stands for Unshielded Twisted Pair. UTP cables do not have any additional shielding to protect against electromagnetic interference (EMI) and crosstalk. They are the most common type of Ethernet cables used in networking applications.
8P8C: Stands for Eight Position, Eight Contact. This is the technical name for the modular connector used for Ethernet connections, commonly known as RJ45 (Registered Jack 45).
AP style: This likely refers to the termination style or the physical design of the keystone jack. "AP" could stand for "Angled Pin" or another specific design feature related to how the contacts are aligned within the keystone jack.
180 degree: This describes the termination pins within the keystone jack. In a 180-degree style, the wires are typically terminated straight through without any bending or twisting within the jack itself.
Keystone jack: A keystone jack is a modular connector used in data communications, particularly in wall plates and patch panels. It allows for easy insertion and removal (if needed) of various types of connectors, such as RJ45 for Ethernet, into a standardized wall plate or patch panel.
In summary, a "CAT6 UTP unshielded 8P8C AP style 180 degree Keystone jack" is a specific type of connector designed for Category 6 Ethernet cables without shielding, featuring an eight-pin, eight-contact configuration (RJ45), with a specific style (possibly angled pin or other design feature) and a 180-degree termination. These keystone jacks are commonly used in structured cabling systems to provide reliable Ethernet connectivity.
Main Features
The main features of a "CAT6 UTP unshielded 8P8C AP style 180 degree Keystone jack" include:
Keystone Form Factor: The keystone form factor allows for easy snap-in installation into keystone wall plates, patch panels, or other standardized mounting hardware. This modularity facilitates flexibility in configuring and managing network connections.
Reliability and Performance: These jacks are engineered to provide reliable Ethernet connectivity with minimal signal loss, ensuring optimal performance for high-speed data networks.
In essence, the main feature of a "CAT6 UTP unshielded 8P8C AP style 180 degree Keystone jack" is its ability to provide high-performance Ethernet connectivity in a standard form factor that is easy to install and compatible with Category 6 cables. It combines robust construction with specific design features to meet the demands of modern network infrastructure.

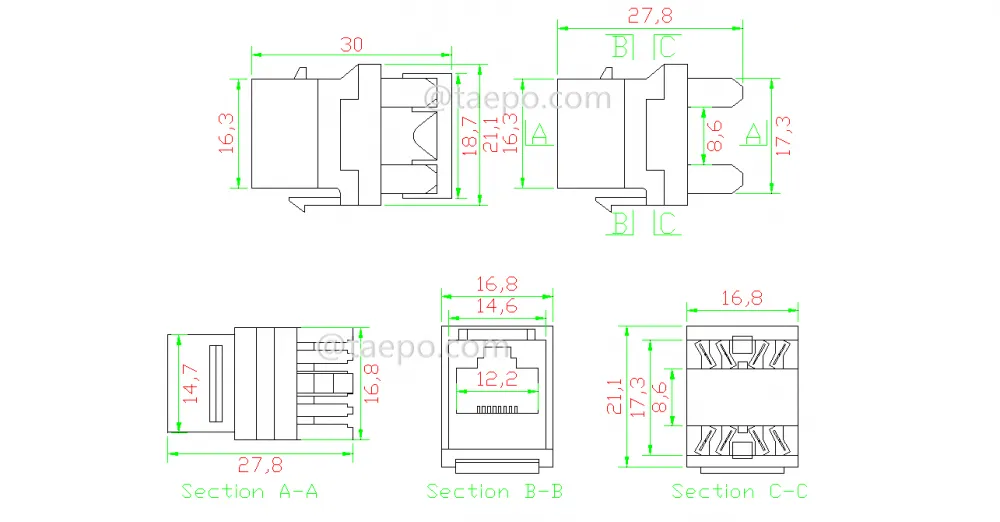

Schematic Diagrams
Packing Pictures
Order Data
| Item No | Descriptions |
| TP-5209-C5EU8 | Keystone jack, CAT5E, UTP, 8P8C, 180 degree, AP style |
| TP-5209-C6U8 | Keystone jack, CAT6, UTP, 8P8C, 180 degree, AP style |
