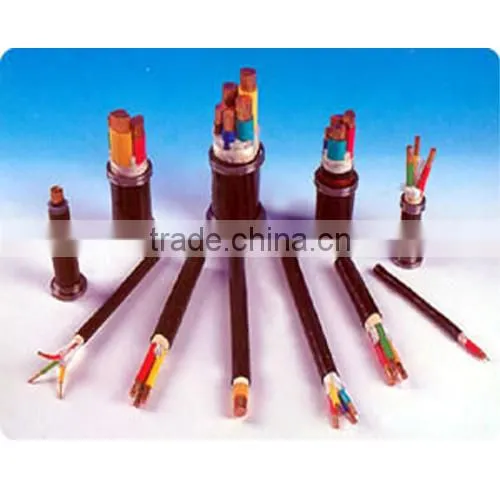

450/750V 0.6/1KV control cable made in china
- 5000 Kilometer / Kilometers per Month
- tianjin port
- T/T
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Hebei, China | Brand Name: | New baofeng | Model Number: | 450/750V 0.6/1kv control cable made in china |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Construction |
Conductor Material: | Copper | Jacket: | PVC |
Product Description
Specifications
450/750V/0.6/1KV control cable made in china1.CE,ISO,CCC,PCCC certificate
2.More than experience is 30 years
450/750V 0.6/1KV control cable made in china
1. Standard
The control cable can be produced according to the standard GB9330-1988, and the factory can also manufacture the cables in accordance with other standards.
2. Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instruments, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3. Service Conditions
(1)The long-time working temperature of conductor of PVC insulated control cable is 70°C
The long-time working temperature of conductor of XLPE insulated control cable is 90°C
(2) The temperature for laying the cables can not be lower than 0°C. Permissible bending radius(r): Unarmoured cable: R≥ 6D; (D: Outer diameter of the cable); Armoured or copper-tape screened cable: R≥ 12D; Shielded flexible cable: R≥ 6D
Control Cable
Type | Name | Section Area(mm2) | No. of Core | Application Site |
KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
4 6 | 2-14 | |||
10 | 2-10 | |||
KVVP | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 2-14 | |||
10 | 2-10 | |||
KVVP2 | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 7-61 | |||
10 | 4-10 | |||
KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
4 6 | 4-14 | |||
10 | 4-14 | |||
KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
