2016 Hot Sale Wood Veneer Dryer Price With Longer Mixing Duration

Name: 2016 Hot Sale Wood Veneer Dryer Price With Longer Mixing Duration
Brand: YONGLI
Availability: InStock

FOB Price

US$ 20,000 - 100,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Drum Drying Equipment
Place of Origin	Jiangsu, China	Brand Name	YONGLI
Model Number	YLHG1	Voltage	380/400/415
Power(W)	2.2*2	Dimension(LWH)	depend on different model
Weight	2 tons	Certification	CE & ISO9001 & SGS
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

2016 hot sale wood veneer dryer price with longer mixing duration

drum dryer

Product Description

1.Introductions of wood veneer dryer price

Three -pass dryer with longer mixing duration of hot air and material.
Available raw material: mainly for powder biomass raw material, such as sawdust or grinded wood powder.
Main applications: can be widely used after grinding process in the biomass pellete production line.

Model		YLHG1	YLHG2	YLHG3	YLHG4	YLHG5
Body	Inside diameter(mm)	1700	2450	2650	2850	3700
	Length(mm)	8000	8000	9100	9000	10000
	Rotary speed(r/min)	Can be adjusted by process
Capacity(t/h)		1	2	3	4	5
Inlet temperature( ℃ )		<500	<500	<500	<500	<500
Raw material		Sawdust
Moisture(%)		45
Outlet temperature( ℃ )		80	80	80	80	80
Power(kw)		2.2*2	3*2	4*2	4*4	5.5*4

3.Features of wood veneer dryer price

Three-pass dryer is with high drying efficiency, heat utilization ratio and less space needed. The floor space is 30% less than single drum dryer with the same capacity.
Support of roller ring and retainer wheel are integral cast steel structure, with high strength, stable operation, anti-abrasion and long service time.
Convenient feeding, feeding from middle of dryer by screw conveyor or from the top according to the different materials.
Sealed by flexble and anti-abrasion steel disc at the drum body and feeding & discharge end. It is of long service time and easy installation.

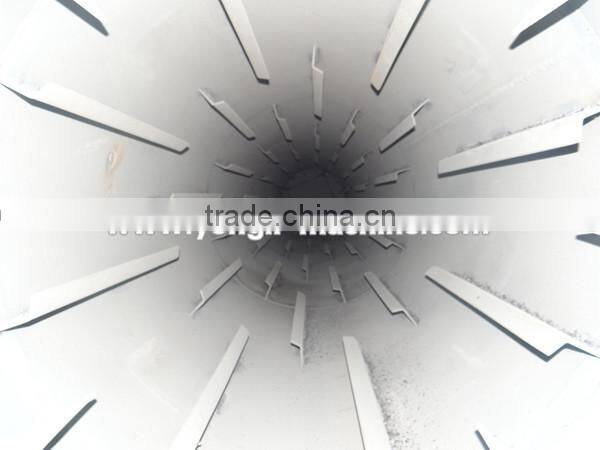

Lifting plates installed inside the drum make the material full mixed with hot air, with low residue and high drying efficiency.
Reasonable discharge structure that can seperate from losing and improve the utilization efficiency.

4.Attractive advantages of wood veneer dryer price

Non-dust workshop
Siemens motor
Professional service and unique custom-made design
National patent, No: ZL201210406389
Reasonable price

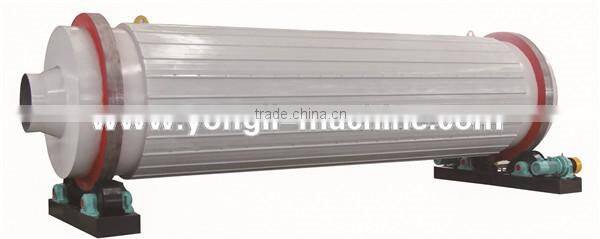

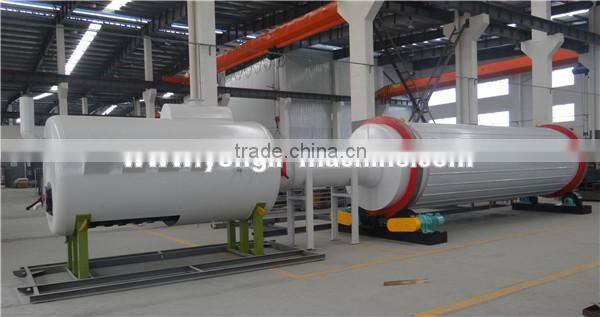

5.Pictures show: wood veneer dryer price

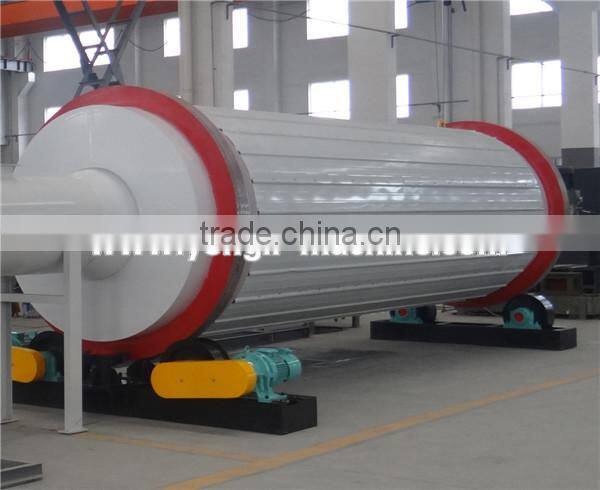

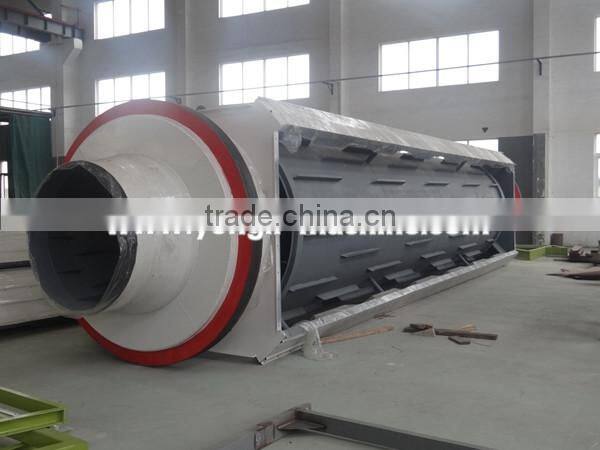

Details of product

spare parts: wood veneer dryer price

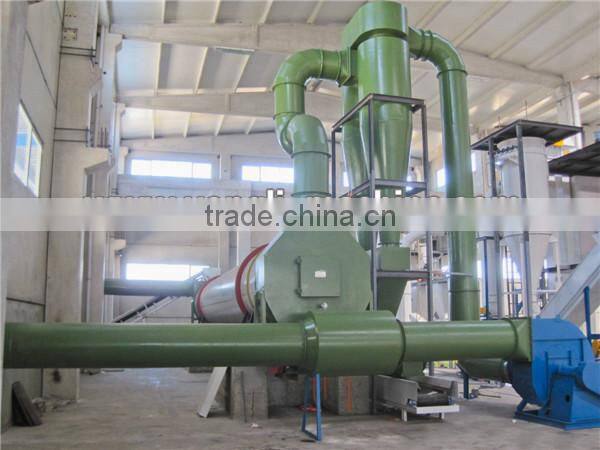

Project case

Certifications

Related Products

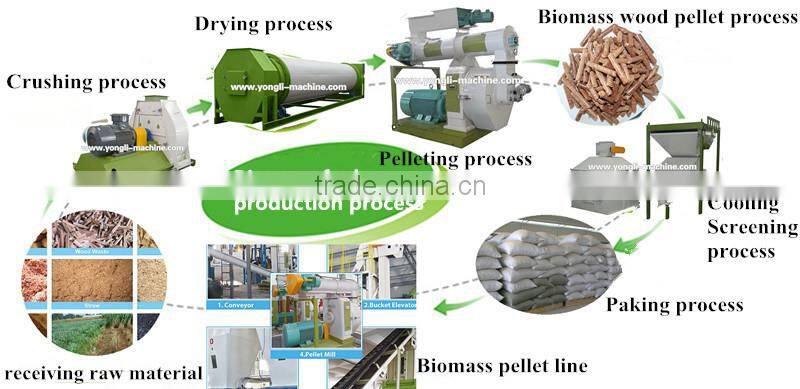

Related Production line

Peeling process, Chipping process, Drying process, Grinding process, Pelletizing process, Cooling and packaging process.

It will be different according to different raw material,mositure content and size.The whole process is highly automatically controlled.

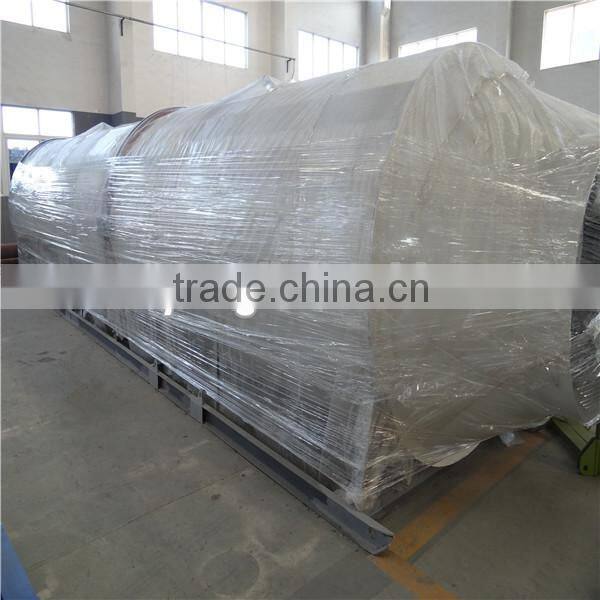

Packaging & Shipping

Packaging: Depending on customers' requirement,such as iron case or iron pallet etc.
Shipping: When the container arrived our factory, ur shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.

Company profile

About us

Business type: manufacturer, trading company

Location: Changzhou, Jiangsu, China(mainland)

Year Established: 2003

Company certifications: ISO9001, CE, SGS

Main products:

Chipping line and pelletizing line for biomass and feed, includes pellet mill, hammer mill, drum dryer, wood chipper...

Jiangsu Yongli Machinery Co., Ltd. is a qualified manufacturer which specializes in developing, producing and marketing top-class machinery equipment. Now we focus on pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, etc. and turn key projects.

The advantages of our quick installation, such as beautiful appearance, flexible operation, stable performance and low operational cost are accepted by more and more customers. We own an outstanding R&D team and a strict & scientific management system, which enable us to supply high quality & convenient turn-key projects to all of our customers.

We have successfully produced over 1,000 turn key projects to clients, which make us one of the biggest manufacturers and the most powerful factories for biomass machinery. We have already sold our machines to over 80 countries, they are: Latvia, Russia, Slovenia, France, Italy, Tunisia, New Zealand, Australia, Colombia, Brazil, Uruguay, Vietnam, Thailand, Malaysia, Singapore, Indonesia, Algeria, the UAE, Kazakhstan, etc. Some of our clients have become our indispensable agents and cooperate with us very well.

Our company view

Factory

Warehouse

Why choose us?

Advantages we have:

Experienced biomass and feed pellet line related supplier for over 12 years.
Professional sales and engineers team for your service.
High quality as all of the products have approved CE&ISO9001&SGS certifications
Use most up-to-date CNC Machine Center to ensure the quality standards.
Already supplied over 1,000 turn-key projects with great satisfaction.

Our customers

Welcome to contact us!

In order to give you the right quotation and latest catlog in time,pls tell me answer of the following questions!

Welcome to visit our factory!

We will provide you our best equipments with the reasonable price to meet your requirements.
