LC optical fiber connector Characteristics:
- Compact, pull-proof design, with RJ-45 style interface
- Fully compatible with standard LC products
- Optional anti-snag simplex collar and duplex clip
- Connector body can be used for both simplex and duplex configurations
- Average insertion loss: 0.06 dB
- Average return loss: 55 dB
- Plastic housing and boot made from UL-rated materials
LC optical fiber connector Application:
- Telecom / Datacom, LANs, CATV
- Fiber to the Home, Premises Distribution
- Gigabit Applications (Ethernet, ATM, SONET, etc.)
LC optical fiber connector Brief Introduction
LC optical fiber connector are small form factor fiber optic connector. The LC optical fiber connector resemble a small LC fiber connectors. Lucent Technologies first developed the LC connector for TelCo environment uses. Hence, LC stands for Lucent Connectors.LC fiber connectors have been standardized as FOCIS 10 (Fiber Optic Connector Intermateability Standards) in EIA/TIA-604-10. The LC optical fiber connector uses a 1.25 mm ferrule, half the dimension of the ST ferrule or a regular ceramic ferrule connector. The LC gives excellent performance and is greatly preferred for single mode transmission.
The TELEWEAVER LC Unibody is fully compatible with the original LC family of single-mode and multimode connectors, adapters and associated components, manufactured under a worldwide license from OFS Fitel. The Unibody features a compact, pull-proof design with RJ-45 style interface, and features a one-piece molded housing with internal strength member, for significantly improved 90º side-pull performance under Telcordia GR-326-CORE testing. It is manufactured using a ruggedized material that results in a latch trigger up to four times stronger than average.
The LC Unibody Series includes an optional anti-snag collar that prevents accidental tear and damage in high density networks. The collar comes in either simplex or duplex configurations, and can be used on the same connector body, eliminating the need to purchase different housing styles. The series includes a jumper connector designed for 2.0mm cordage, and a Behind the Wall (BTW) version for 900µm buffered fiber. The Unibody can be used for single-mode and multimode applications with either a PC or APC end-face. Plastic housing and boot made from UL rated materials are also available. The series is compliant with Telcordia GR-326-CORE, IEC 61754-20, and TIA/EIA 604-10 standards, and meets independent testing criteria from OFS Fitel.

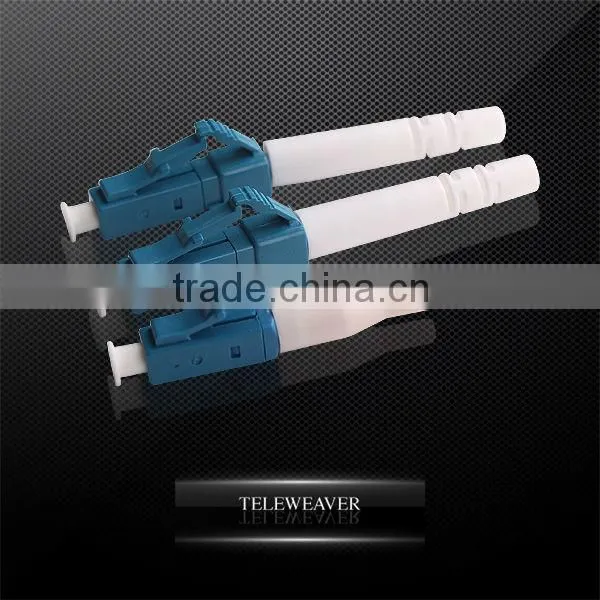

LC optical fiber connector Pictures:
-
LC optical fiber connector
LC optical fiber connector Paramters:
|
Type Parameters |
Single-mode |
Multimode |
||
Connector Type |
LC Fiber Optic Connector |
|||
Polishing Type |
PC |
UPC |
APC |
PC |
Insertion Loss (dB) |
≤0.2 |
≤0.25 |
||
Return Loss (dB) |
≥45 |
≥50 |
≥60 |
N/A |
Repeatability (dB) |
IL≤0.2 RL≤5 |
IL≤0.1 |
||
Vibration (dB) |
IL≤0.2 dB RL≤5dB |
IL≤0.2 dB |
||
Exchangeability (dB) |
IL≤0.2 dB RL≤5dB |
IL≤0.2 dB |
||
Tensile Strength |
F200N |
|||
Durability |
n=1000 |
|||
Operation Temperature (°C) |
-40°C~+80°C |
|||
Ferrule Material |
Zirconia Ceramic |
|||
Cable Diameter (mm) |
Ø0.9, Ø2.0, Ø3.0 |
|||
