ST Fiber Optic Connector Characteristics:
- Bayonet style housing for easy termination
- Epoxy and epoxy-less versions
- High precision alignment
- Low insertion and return loss and back reflection
ST Fiber Optic Connector Application:
- Optical Fiber Communications, Video, LAN, CATV Systems
- Optical Network Equipments, Optical Test Equipments
- Optical Network Equipments,optical Test Equipments
- Module Pigtails, Multi-media, Premise
- Active device termination installations
ST Fiber Optic Connector Brief Introduction
ST fiber connector is still the most popular connector, this fiber connector has a bayonet mount and a long cylindrical 2.5 mm ceramic (usually) or polymer ferrule to hold the fiber. Clearly speaking, The ST fiber connector (Straight Tip) is a fiber connector which uses a plug and socket which is locked in place with a half-twist bayonet lock. The ST connector was the first defactor standard for fiber optic cabling and ST fiber connector is one of the leading fiber connectors.
The TELEWEAVER ST connector has a bayonet-style housing and a long spring-loaded ferrule hold the fiber. They are available in both multimode or singlemode versions. Horizontally mounted simplex and duplex adapters are available with metal or plastic housing, with a choice of phosphor bronze or zirconia split sleeve. TELEWEAVER also offers the epoxy-free ST XPFit connector for quick field termination. The ST is one of the older generations of connector, but is still widely used for multimode networks, including LANs for buildings and campuses.

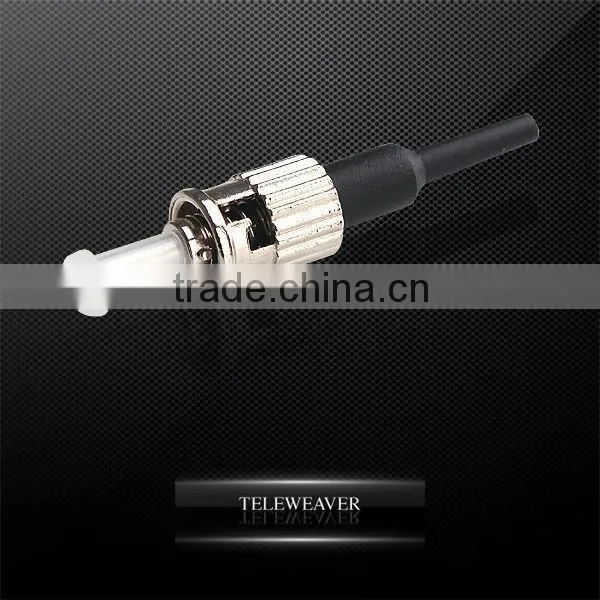

ST Fiber Optic Connector Pictures:
-

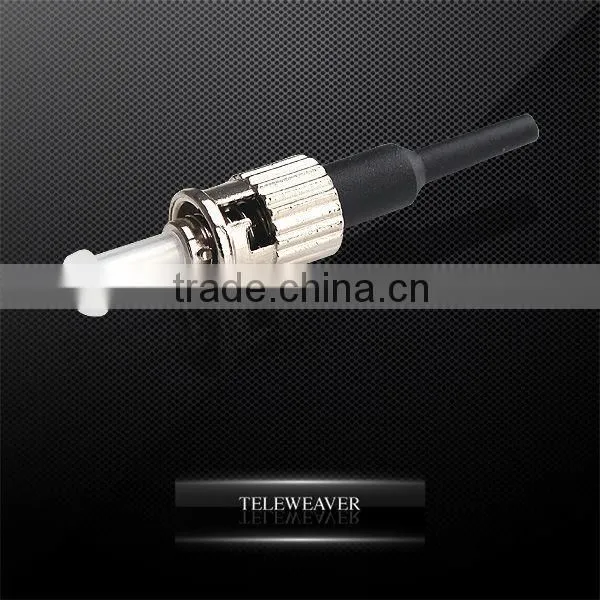

ST Fiber Optic Connector
ST Fiber Optic Connector Paramters:
|
Type Parameters |
Single-mode |
Multimode |
||
Connector Type |
ST Fiber Optic Connector |
|||
Polishing Type |
PC |
UPC |
APC |
PC |
Insertion Loss (dB) |
≤0.2 |
≤0.25 |
||
Return Loss (dB) |
≥45 |
≥50 |
≥60 |
N/A |
Repeatability (dB) |
IL≤0.2 RL≤5 |
IL≤0.1 |
||
Vibration (dB) |
IL≤0.2 dB RL≤5dB |
IL≤0.2 dB |
||
Exchangeability (dB) |
IL≤0.2 dB RL≤5dB |
IL≤0.2 dB |
||
Tensile Strength |
F200N |
|||
Durability |
n=1000 |
|||
Operation Temperature (°C) |
-40°C~+80°C |
|||
Ferrule Material |
Zirconia Ceramic |
|||
Cable Diameter (mm) |
Ø0.9, Ø2.0, Ø3.0 |
|||
