SC Fiber Optic Connector Features:
- Good durability and exchangability
- Various Connector Type Available
- High temperature stability
- Low Insertion Loss and Back Reflect
SC Fiber Optic Connector Applications:
- Optical Fiber Communications
- Video,LAN, CATV Systems
- Optical Network Equipments,optical Test Equipments
- Module Pigtails,Multi media,Premise
- Active device termination installations
SC Fiber Optic Connector Brief Introduction:
SC connector fiber is a snap-in connector fiber also with a 2.5 mm ferrule that is widely used for it's excellent performance. It was the connector standardized in TIA-568-A, but was not widely used at first because it was twice as expensive as a ST. Now it's only a bit more expensive and much more common It's a snap-in connector that latches with a simple push-pull motion.It is also available in a duplex configuration. SC connector is very popular in sc fiber patch cable and sc fiber pigtail making.
SC Fiber Optic Connector Pictures:

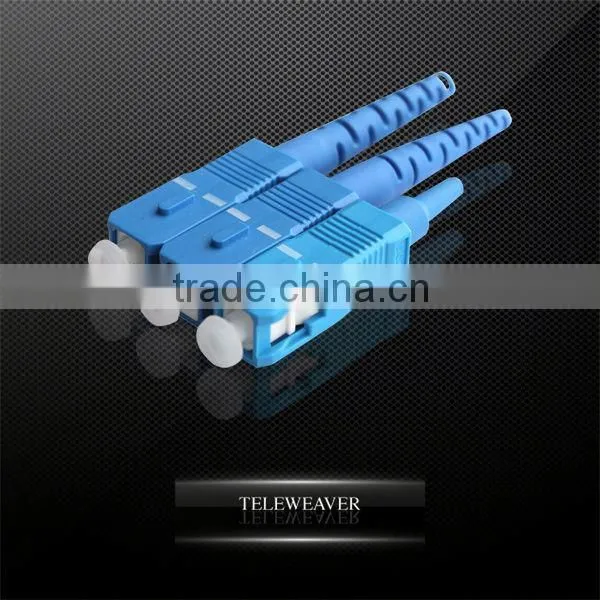

- SC Fiber Optic Connector
SC Fiber Optic Connector Paramters:
Parameter |
Unit |
LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU |
MTRJ |
E2000 |
||||||
SM |
MM |
SM |
MM |
SM |
||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
Insertion Loss (Typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
Repeatability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
Durability |
Time |
>1000 |
>1000 |
>1000 |
||||||
Operating Temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
||||||
Storage Temperature |
°C |
-45~85 |
-45~85 |
-45~85 |
||||||
Other Fiber Optic Connectors:
-
SC Fiber Optic Connector
-
FC Fiber Optic Connector
-
LC Fiber Optic Connector
-
ST Fiber Optic Connector
-
MU Fiber Optic Connector
-
E2000 Fiber Optic Connector
-
MTRJ Fiber Optic Connector
-
SMA Fiber Optic Connector
-
D4 Fiber Optic Connector
-
DIN Fiber Optic Connector
-
MPO Fiber Optic Connector
Teleweaver Contact Details:
Company Name: Teleweaver Technology Co.,LTD Add: 6F,Building C, Huixin Industrial, Guanzhou,China 510440 Tel: 86-20-6662 0285 Fax: 86-20-6683 7162 Mob: 86-138 1700 4898 Website: Skype: teleweaver
