Specifications
SMA Fiber Optic Connector:1.ROHS Compliant
2.Low IL & High RL
3.High precision alignment
4.SMA connector SM & MM
SMA Fiber Optic Connector Characteristics:
- Threaded nut connector
- One piece construction
- TIA and IEC complaint
- Simple termination
- Single crimp design
- Non-contact connector
- Hex coupling nut
SMA Fiber Optic Connector Application:
- Medical, Surgical
- Aesthetic lasers, Military
- Industrial, Spectrometers, Lasers
SMA Fiber Optic Connector Brief Introduction
Amphenol developed the SMA Fiber Optic Connectors from the "Subminiature A " hence SMA, microwave connector. The SMA Fiber Optic Connector model 905 had a machined ferrule exactly 1/8 inch in diameter that mated in a machined adapter. When the adapters are not precise enough for better fibers, A necked-down ferrule that mated with a Delrin adapter for better insertion loss performance. These fiber optic connectors are still in use on some military and industrial systems. You can give us your special requirements for the SMA hole and other non-standard parameters.
The TELEWEAVER SMA 905 connector is a non-contact connector typically used in medical, industrial, and military applications. The connector is offered standard with a 127 um ID, it can be easily customized to accept larger ID fibers sometimes used in these markets and industrial laser applications.

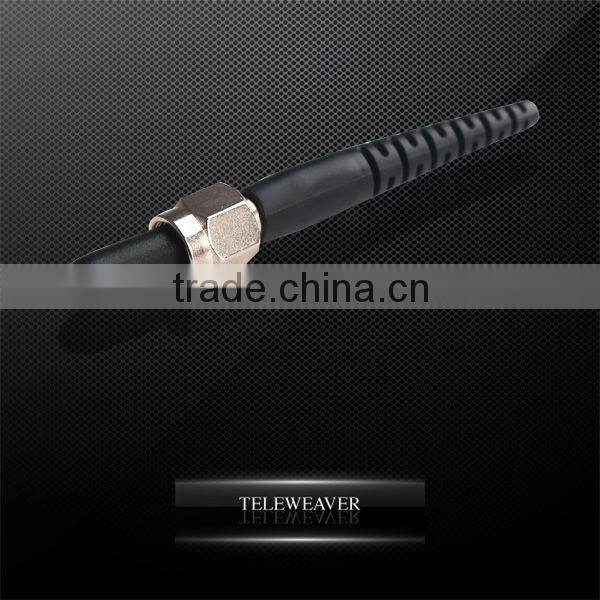

SMA Fiber Optic Connector Pictures:
-
SMA Fiber Optic Connector
SMA Fiber Optic Connector Paramters:
|
Type Parameters |
Single-mode |
Multimode |
Connector Type |
SMA Fiber Optic Connector |
|
Polishing Type |
PC |
PC |
Insertion Loss (dB) |
≤0.2 |
≤0.25 |
Return Loss (dB) |
≥45 |
N/A |
Repeatability (dB) |
IL≤0.2 RL≤5 |
IL≤0.1 |
Vibration (dB) |
IL≤0.2 dB RL≤5dB |
IL≤0.2 dB |
Exchangeability (dB) |
IL≤0.2 dB RL≤5dB |
IL≤0.2 dB |
Tensile Strength |
F200N |
|
Durability |
n=1000 |
|
Operation Temperature (°C) |
-40°C~+80°C |
|
Ferrule Material |
Metal |
|
Cable Diameter (mm) |
Ø3.0 |
|
