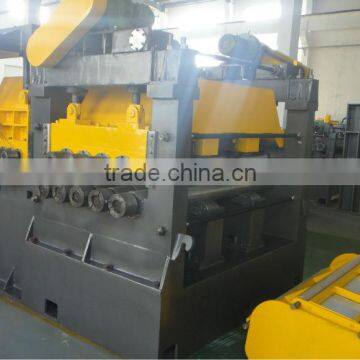

WTM-(0.5-3.0)*1600mm steel coil cutting machine

I. Main Technical Data

Thickness of hot roll coil: 0.5-3mm, δs ≤360N/mm²

Width of coil: 800-1600mm;

Coil I.D:Φ508mm-Φ610mm;

Coil E.D: ≤Φ1300mm;

Weight of coil: 15T;

Stacking length: ≤ 8000mm

Cut-to-length accuracy:

length tolerance: ±1.0mm/2000mm;

diagonal tolerance: ±1.5mm/2000mm;

Leveling precision: ≤ 2mm/m²

Material of leveling roller: 40Cr

Hardness of leveling roller surface: HRC48°-52°;

Leveling speed: ≤20m/min (adjustable);

Total power: about 60kw

II . Technical parameters of finished product

Cutting length: 8000mm

Length tolerance: ±1.0mm;

Diagonal tolerance: ±1.0mm;

Leveling precision: 2.0mm/m²;

III . Main structure

Hydraulic loading car;

Hydraulic expansion decoiler (double-head type);

Hydraulic pressing & guiding device;

Roller worktable;

Guiding table;

Main leveling machine;

Coding device;

Shearing machine;

Belt transmission table;

Pneumatic dropping frame;

Unloading trolley;

Hydraulic & pneumatic system;

Electric control system.
