Small Laser Engraving Machine for Wood
US$ 2,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Engraving Area:
500*300/600*500mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Made in China Design in Swiss Laser Engraving Machine EasternUS$ 2,000 - 3,000MOQ: 1 Set -
Mini Plastic Machine Laser Engraving Machine for Laser CutterUS$ 2,000 - 8,000MOQ: 1 Set
-
Acrylic Laser Engraving Cutting Machine 0605MU 0503MUUS$ 2,000 - 3,000MOQ: 1 Set
-
Wood Mini Laser Engraving MachineNegotiableMOQ: 1 Set
-
Textile Laser Engraving MachineUS$ 3,000 - 6,000MOQ: 1 Set
Condition
New
Laser Type
CO2
Engraving Area
500*300/600*500mm
Engraving Speed
0-60000mm/min
CNC or Not
Yes
Cooling Mode
Water Cooling
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Other
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Other
Place of Origin
Shandong, China
Brand Name
bodor
Model Number
BCL-MU
Certification
CE, Other, CE, FDA, TUV
After-sales Service Provided
Engineers available to service machinery overseas
Small laser engraving machine for wood BCL-MU
Main Features
1. Modern smart design. Put on table and work easily.

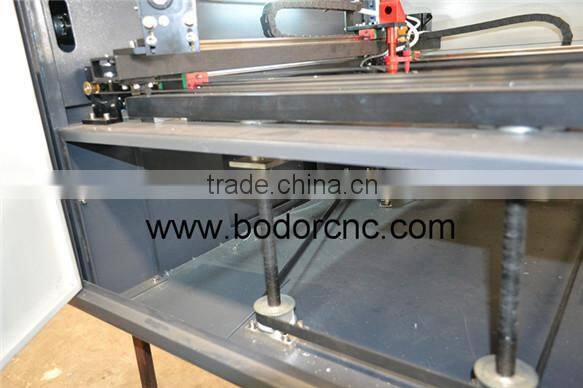

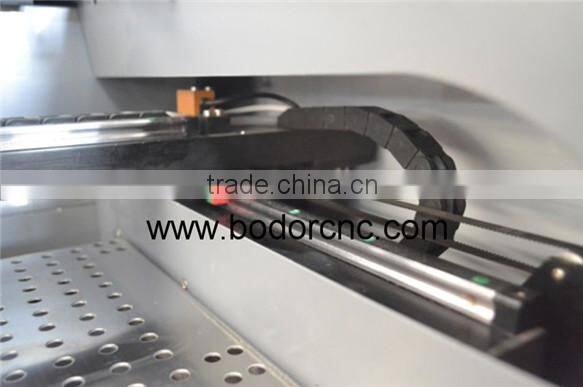

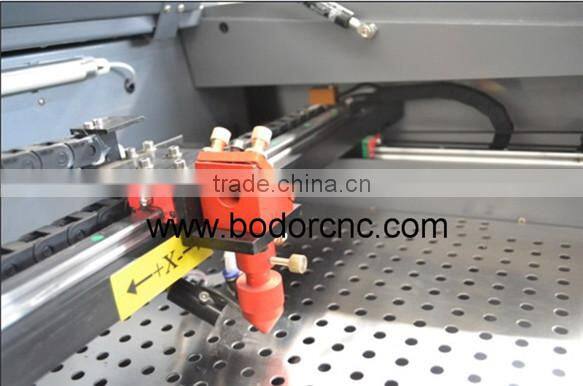

2. Stronger frame together with HIWIN square rail, high accuracy.

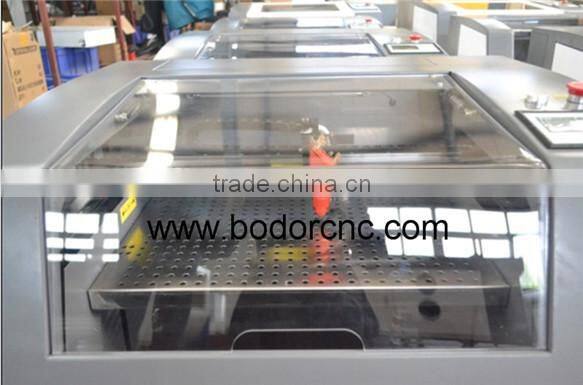

3. Transparent acrylic watching door, easy checking work process.

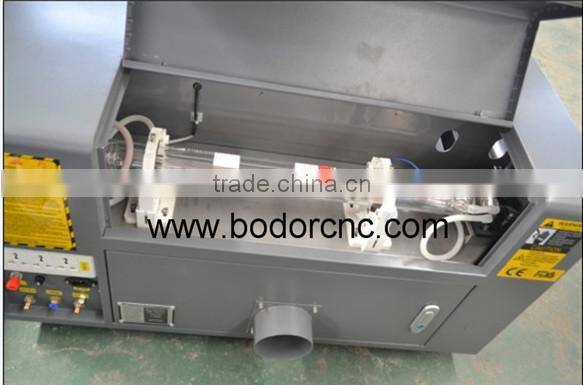

4. Independent laser tube cabinet, protect tube and easy change.
5. Stainless steel comb working table, avoid rust.
6. Red cross point offers the highest accuracy position.
7. High efficiency tube with stable laser path. 40W—90W life time reach to 4000—10000 hours.
8. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.
9. U disk offline operation makes work convenient.
2. Stronger frame together with HIWIN square rail, high accuracy.
3. Transparent acrylic watching door, easy checking work process.
4. Independent laser tube cabinet, protect tube and easy change.
5. Stainless steel comb working table, avoid rust.
6. Red cross point offers the highest accuracy position.
7. High efficiency tube with stable laser path. 40W—90W life time reach to 4000—10000 hours.
8. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.
9. U disk offline operation makes work convenient.
Technical Parameter
| Model | BCL0503MU | BCL0605MU | Option |
| Working Area | 500*300mm | 600*500mm | According to Demands |
| Laser Power | 40W/50W/60W/90W | ||
| Laser Type | CO2 Sealed Laser Tube, 10.6μm | ||
| Cooling Type | Water Cooling | ||
| Engraving Speed | 0-60000mm/min | ||
| Cutting Speed | 0-40000mm/min | ||
| Laser Output Control | (0-100% Set by Software ) | ||
| Min. Engraving Speed | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm | ||
| Highest Scanning Precision | 4000DPI | ||
| Locating Precision | ≤+0.01mm | ||
| Controlling Software | DSP Control System | ||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
| Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc | ||
| Color Separation | Yes | ||
| Drive System | High-precision 3-phase Stepper Motor | ||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
| power Supply | AC110V/220V+10%,50HZ/60HZ | ||
| Working Environment | Temperature:0-45°C,Humidity 5-95%(No Condensate Water) | ||
| Optional Spare Parts | Honeycomb Worktable, Rotary Device,Auto-focus Device | ||
Applications
Applicable industry:
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.

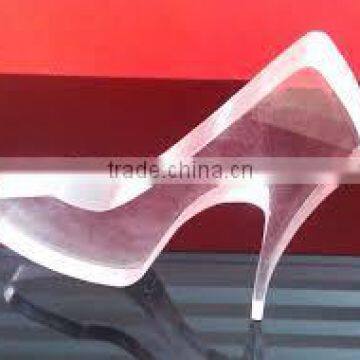

Applicable Materials:
materials such as acryl, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc.

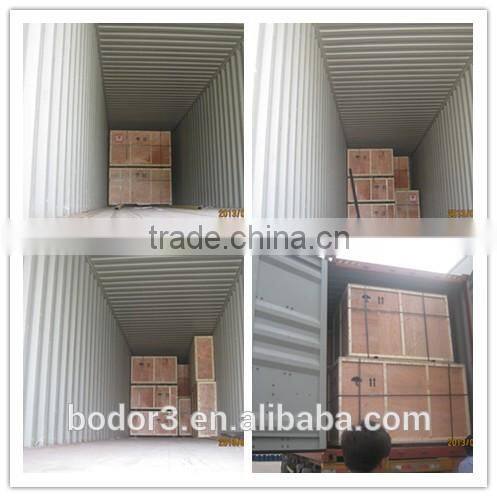

Packaging and shipping

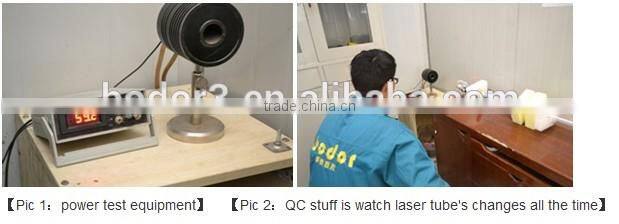

Quality control:

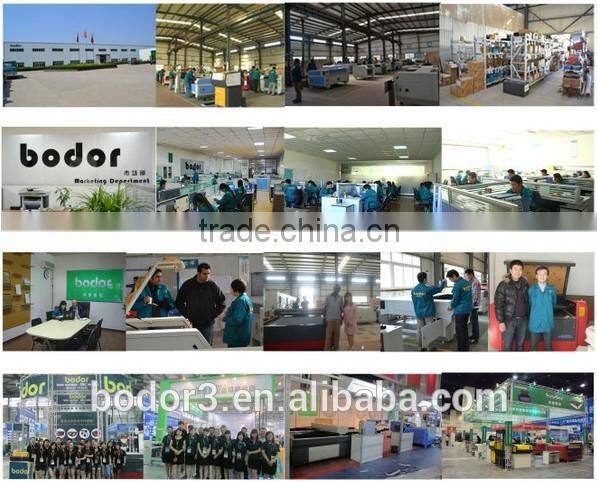

Comapny information:
Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc.
With all Bodor staff persistence and hard working,Bosor laser has developed to a large-scale international manufacturing company.More accuracy,more automatically and higher quality products with intimate after-sales service enables Bodor be the leader of laser industry.Suitable services for customers,2-year warranty products,standard scientific management make bodor earn the best reputation and word-wide trusted customers.
For 12 years,Bodor laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More than 80 countries. Bodor lasers will try our best to serve for you suitable laser solutions. Welcome you to join Bodor family,share top laser products and services together with word-wide customers.
