Help CenterTextile Laser Engraving Machine
Related Products
Specifications
textile laser engraving machine1.2 year warranty
2.auto-feeding textile,carpet, clothing garment, toys

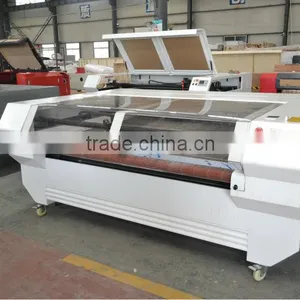

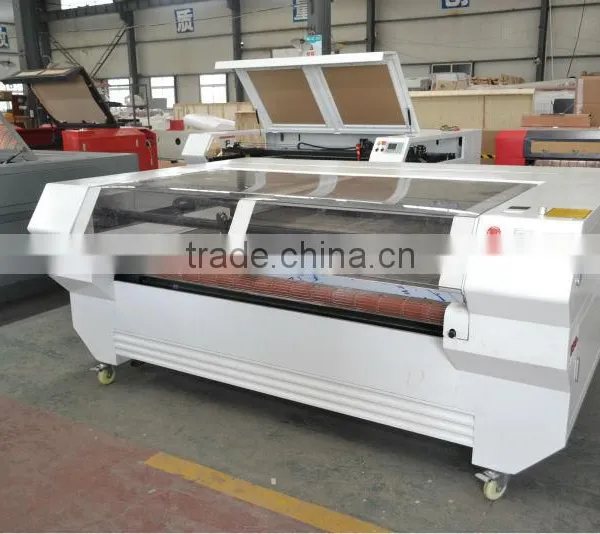

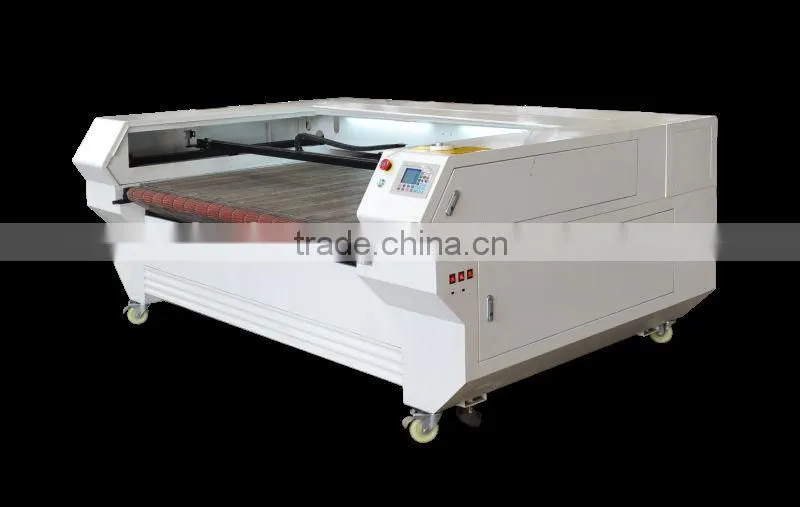

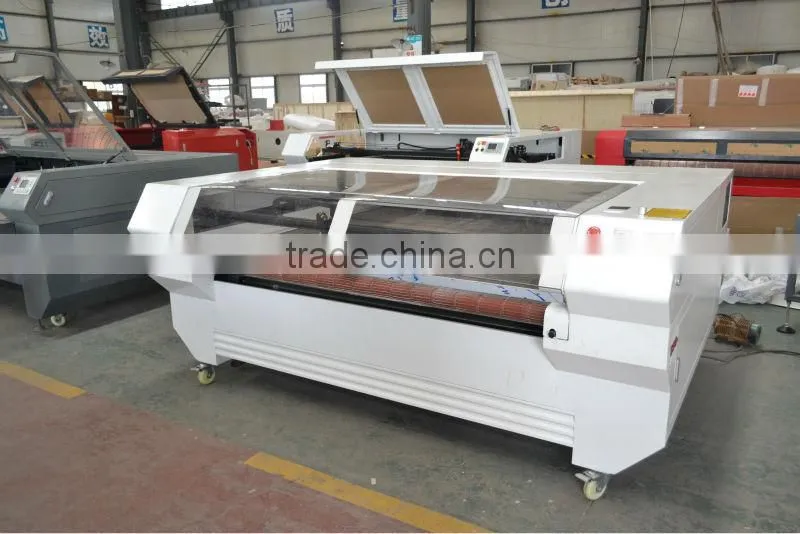

textile laser engraving machine
1. High-efficiency co2 laser tube 60w/80w/130w/150w/180w
2. Electric up and down working table 240mm
3. Stainless steel hollow working table
4. Red dot cross position system
5.Taiwan HIWIN square rail, high accuracy
6.Transparent acrylic watching door, easy checking work process
7. U flash offline operation
8. Independent laser tube cabinet, protect tube and easy change
Application Material
materials such as acrylic, crystal, plastic, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, ceramic, lamp shade, etc.
Application
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts,
electronics, electric appliances, etc.
| Model | BCL1610XH2HA | BCL1610XH2HMA | Option |
| Amountof Laser Head | Double-head | Double-head | According to Demands |
| Lase Head Adjustment | Manually | Electrically | |
| Working Area | 1600*1000mm | 1600*1000mm | |
| Laser Power | 60w/80w/100w/130w/150w | ||
| Laser Type | CO2 Sealed Laser Tube,10.6μm | ||
| Cooling Type | Water Cooling | ||
| Max.Moving Speed | 1600mm/s | ||
| Max.Working Speed | 1400mm/s | ||
| Laser Output Control | 0-100% Set by Software | ||
| Min.Character Engraved | Chinese:2.0mm×2.0mm,Englishletter:1.0mm×1.0mm | ||
| Highest Scanning Precision | 4000DPI | ||
| Locating Accuracy | ≤+0.02mm | ||
| Controlling Software | DSP Control System | ||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
| Compatible Software | CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. | ||
| Color Separation | Yes | ||
| Drive System | High-precision 3-phase Stepper Motor | ||
| Auxiliary Equipments | Exhaust Fan and Smoke Pipe | ||
| Power Supply | AC110V/220V+10%,50HZ/60HZ | ||
| Working Environment | Temperature0-45°C,Humidity5-95%(No Condensate Water) | ||

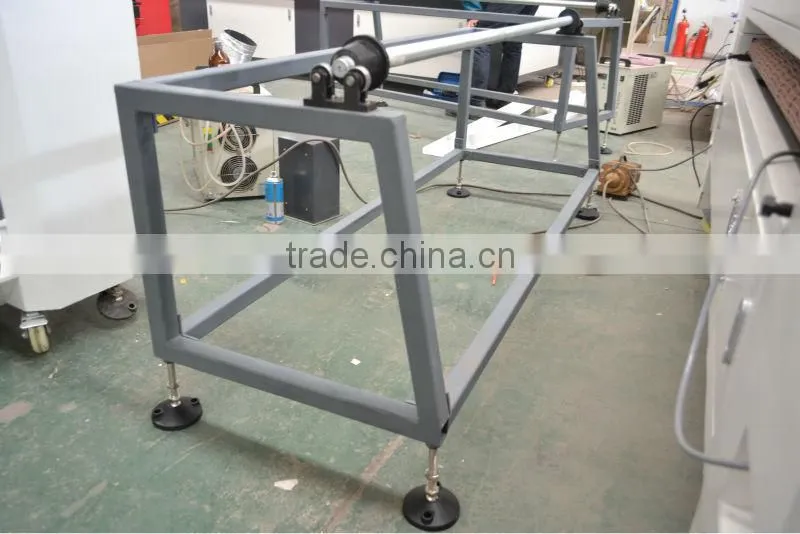

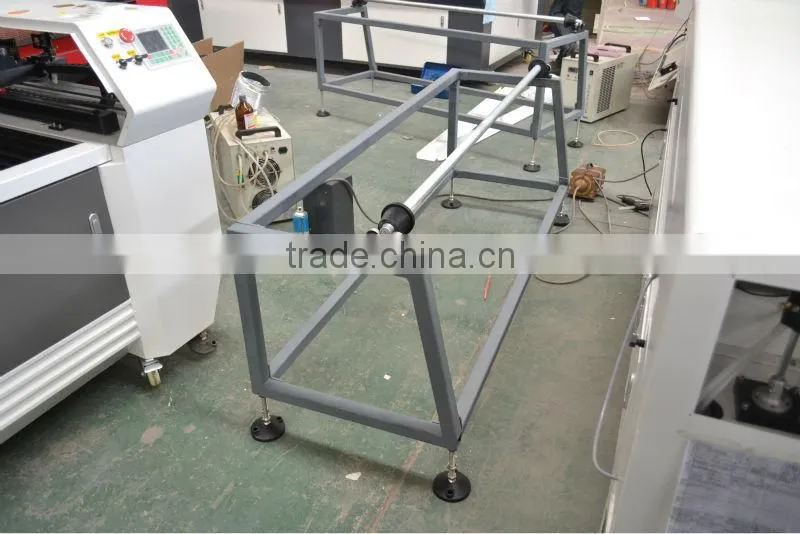

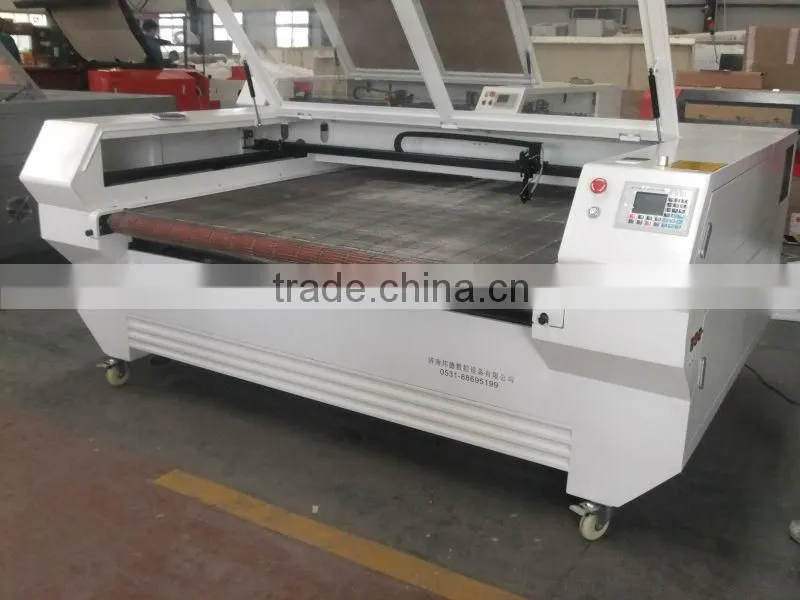

double head mouvable laser cutting machine fabric auto-feeding
blade worktable

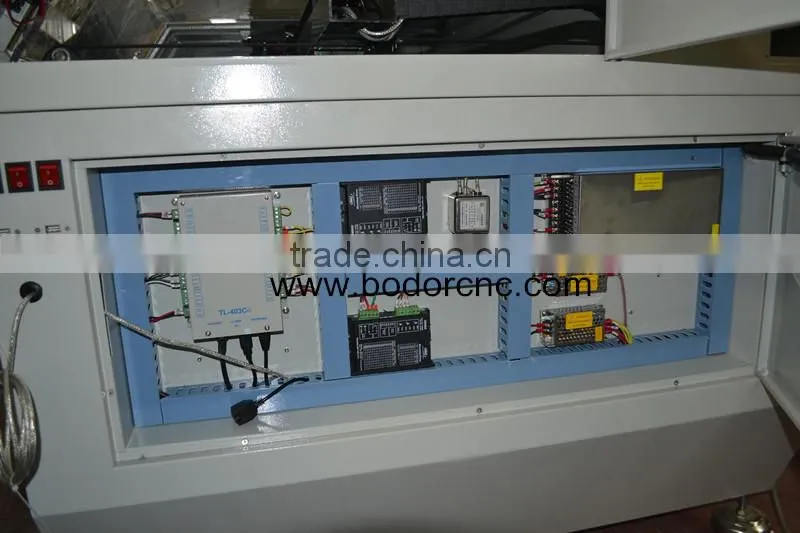

driver systerm and power supply
inside package: transparent membrane
outside package: wooden boxes for sea transport or air transport
Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.
In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc
2 year warranty
1. How to choose laser power ?
according to the length of laser tube
| laser power | length of laser tube | outside diameter of laser tube | acrylic cutting | wood cutting | plywood and MDF |
| 40w | 800mm | 50mm | 3mm | 1mm | / |
| 50w | 1000mm | 50mm | 5mm | 3mm | 1mm |
| 60w | 1250mm | 50mm | 8mm | 6mm | 3mm |
| 80w | 1600mm | 60mm | 15mm | 10mm | 6mm |
| 100w | 1650mm | 80+-2mm | 20mm | 12mm | 8mm |
|
W2:rated power90w max power100w |
1200mm | 80mm | 20mm | 12mm | 8mm |
|
W4:rated power120w max power135w |
1400mm | 80mm | 25-30mm | 16mm | 10mm |
|
W6:rated power150w max power170w |
1650mm | 80mm | 30-35mm | 22mm | 14mm |
|
W8:rated power170w max power200w |
1850mm | 90mm | 35-40mm | 24mm | 16mm |
2. What is in package?
machine with laser tube, double faced adhesive tape, path adjusting piece, focus scale, spanner, air pipe, water pipe, fan pipe...
3.What is M serial Packing size and Weight?
4.How to choose work table? Honeycomb table or stainless steel blade table?
For acrylic -we recommend stainless steel work table(blade worktable).
Reason: Acrylic is almost pure in light. Honey comb inside has 6 reflect pieces,when cutting acrylic,honey comb reflect pieces will make laser path reflect back to acrylic material surface.
For paper -we recommend honeycomb work table.
Reason:Honeycomb has flat and comb design ,When working, smoke will be absorbed totally inside to keep paper or leather in cleaning way.
Stainless Steel work table is between Honeycomb and Standard blade design.That is why we offer such workfloor as standard specification.
@What is the maximum diameter three jaw rotary device?
80mm
@How many mm is the up-down table?
160mm
@How can we do if the laser tube is longer the machine length?
RECI W2: Installing lengthened cover on the machine
