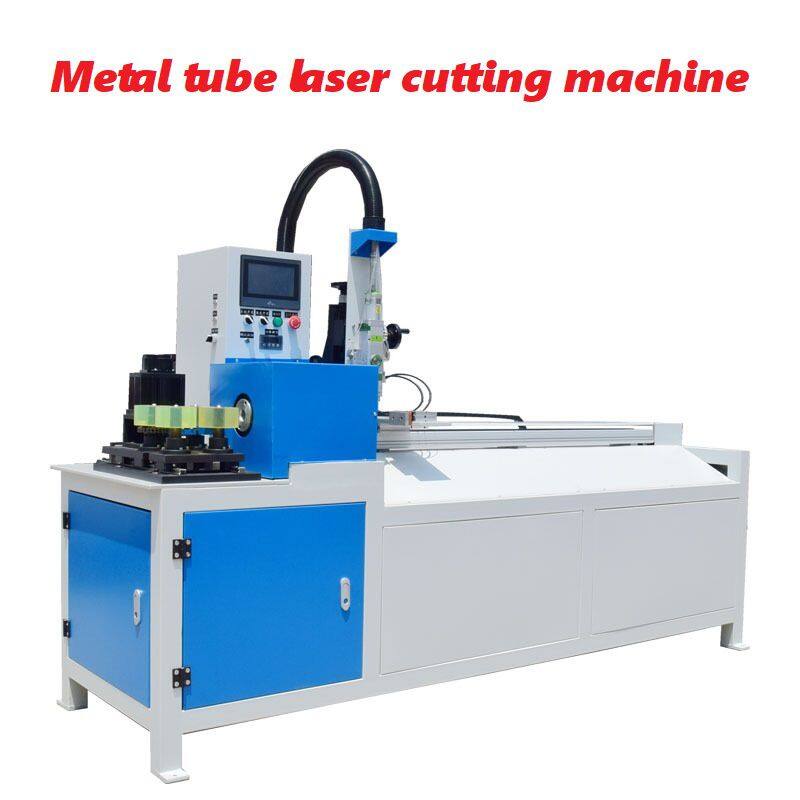

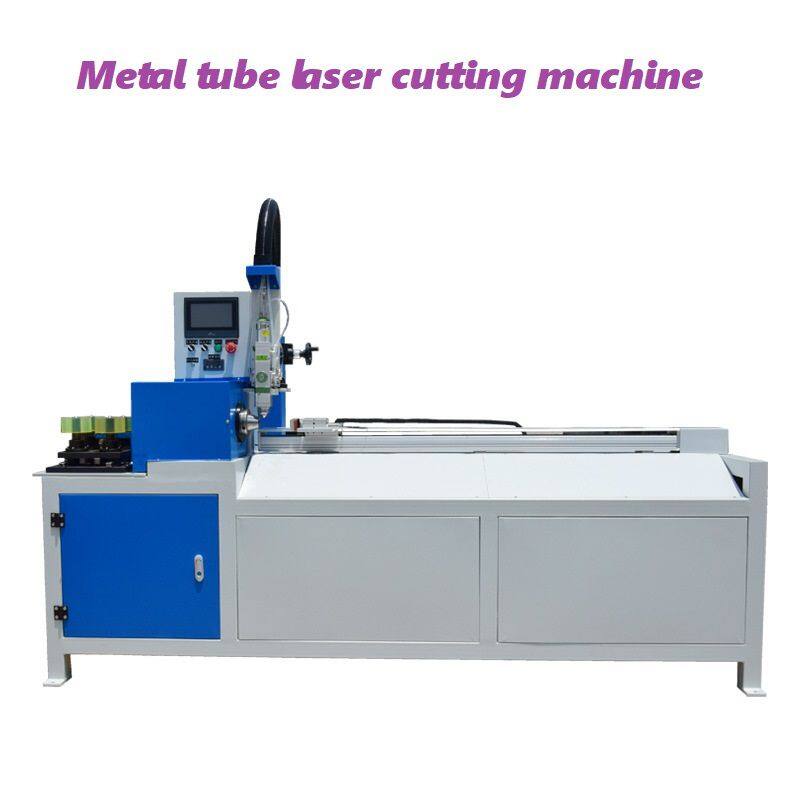

Basic Parameters:
Model: CM5000G
Laser power: 1500W
Working voltage: 220V 50HZ
Cutting length error ≤± 0.2mm (cutting length ≤ 300mm)
Cutting length error ≤± 0.25mm (300mm ≤ cutting length ≤ 500mm)
Cutting length error ≤± 0.3mm (500mm ≤ cutting length ≤ 1000mm)
Cutting gap: ≤ 0.2mm (reference wall thickness 0.6-2.0mm)
Cutting speed: ≤ 200rpm/min

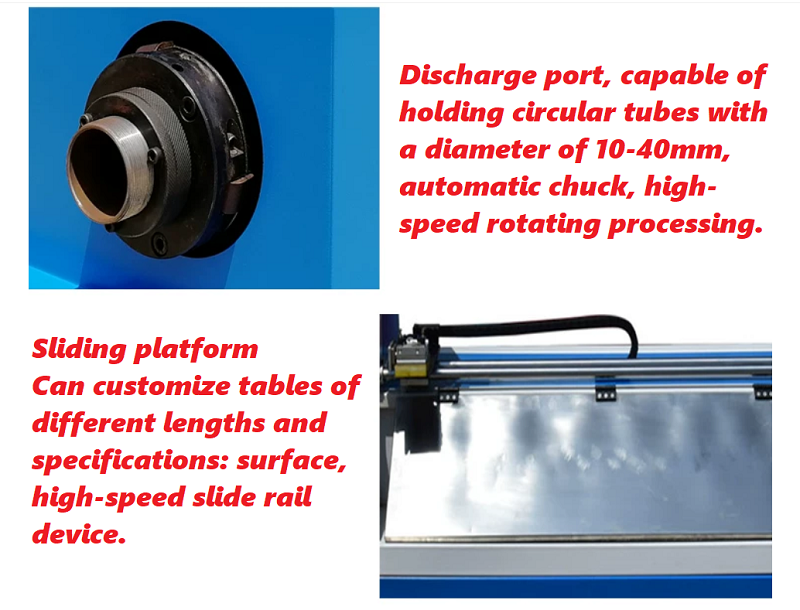

Pipe processing range: Round pipe with a diameter of 10 to 40mm
Single feeding length range: 10mm-1000mm, other lengths can be customized
Equipment gross weight: 650KG
Cutting machine dimensions: length * width * height=2400 * 920 * 1600mm
Floor area size of water cooler: 600 * 600 * 1000mm

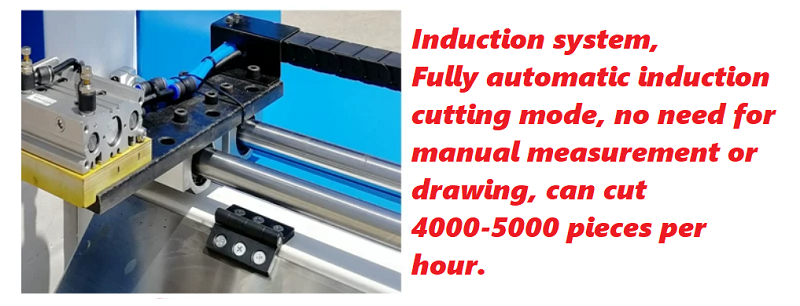

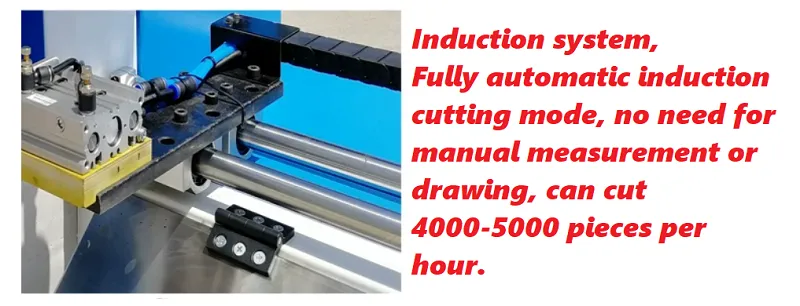

Cutting method: manual feeding, automatic feeding cutting
Processing technology: Only suitable for cutting and cutting circular pipes, cannot process square pipes, and cannot drill holes.
Cutting thickness:

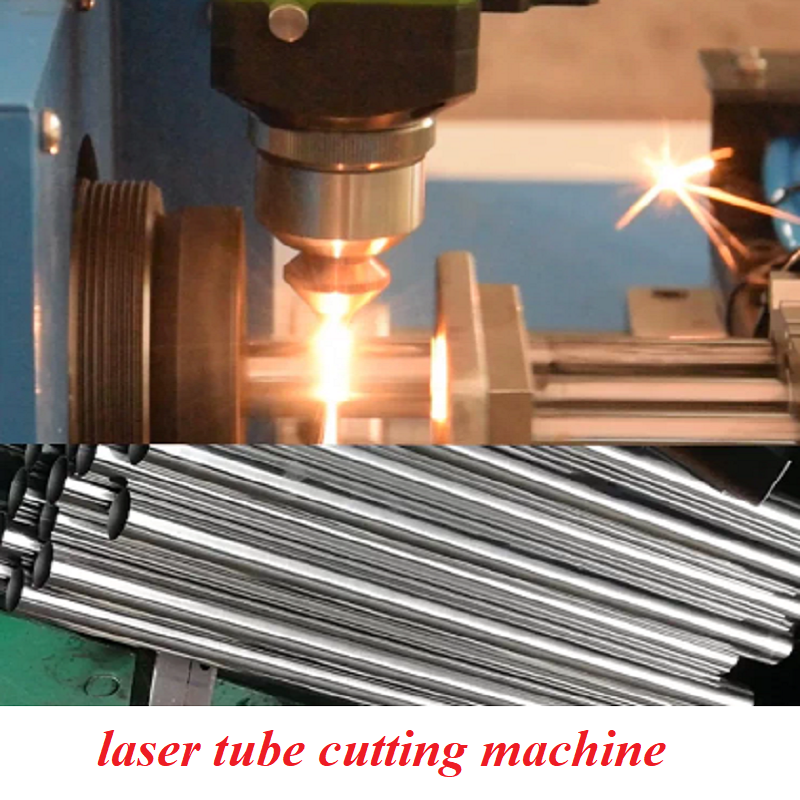

The 1500W laser power is suitable for cutting stainless steel pipes and carbon steel pipes with a quality of ≤ 2mm, with a maximum cutting thickness of 3mm. The cutting cross-section has slag hanging (air cutting is matched with a pressure of 1.6Mpa or above).
Applicable industries:
Stainless steel round tube products, stair handrails, bathroom industry, locks, door handles, handles, sewage pipes, fire hoses, car exhaust pipes, towel racks, kitchen equipment, storage racks, mop poles, drying racks, mosquito net poles and other industries

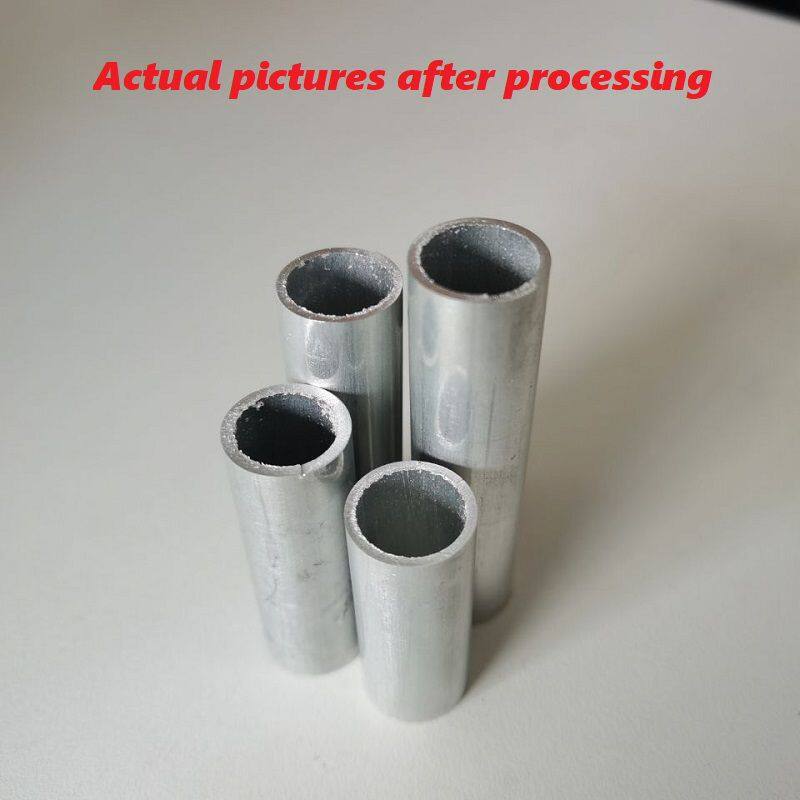

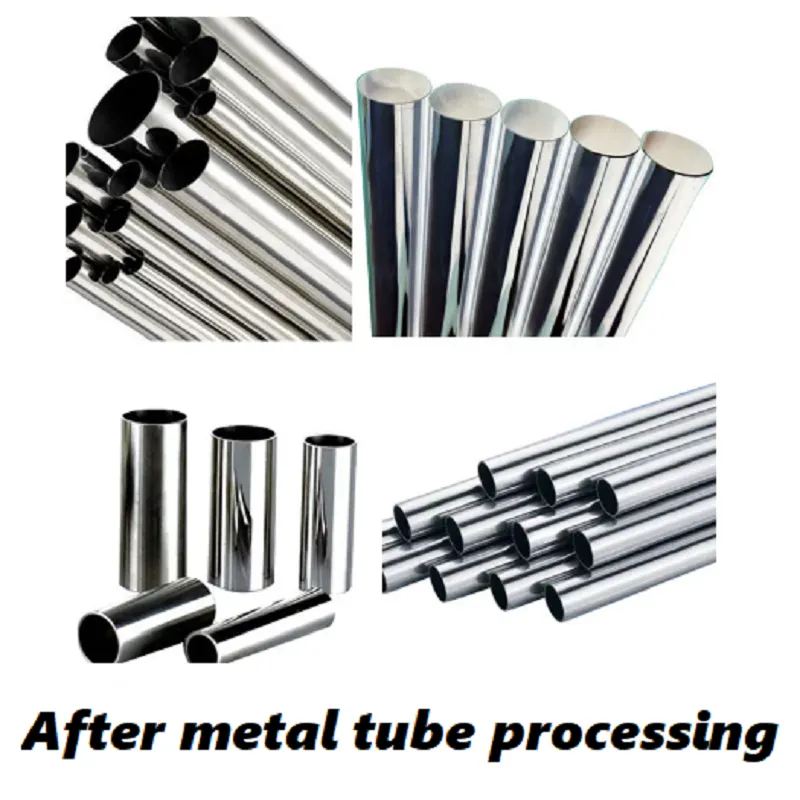

Applicable materials: carbon steel pipe, stainless steel pipe, galvanized pipe, aluminum pipe, brass pipe, not suitable for copper pipe.
Machine vulnerable parts:
Protective lenses: $8.5 per piece, usually replaced every 2 to 4 weeks (with no oil or water supply), depending on usage.
Cutting nozzle: $8.5 per piece, depending on usage.
Customer provided air compressor, gas requirements and losses: screw air compressor, power 15KW, pressure 1.6Mpa, variable frequency air compressor is more energy-efficient, saving 20% of electricity compared to power frequency.
After sales support:
The equipment comes with a one-year free warranty. Damaged parts such as cutting tips and protective lenses are not covered by the warranty and will be sent for repair by overseas customers.
After the warranty period expires, extensive software and hardware support will still be provided.
Random accessory list:
1. 1 industrial water cooling machine
2. 1 chuck clamp, other clamps to be provided by the user

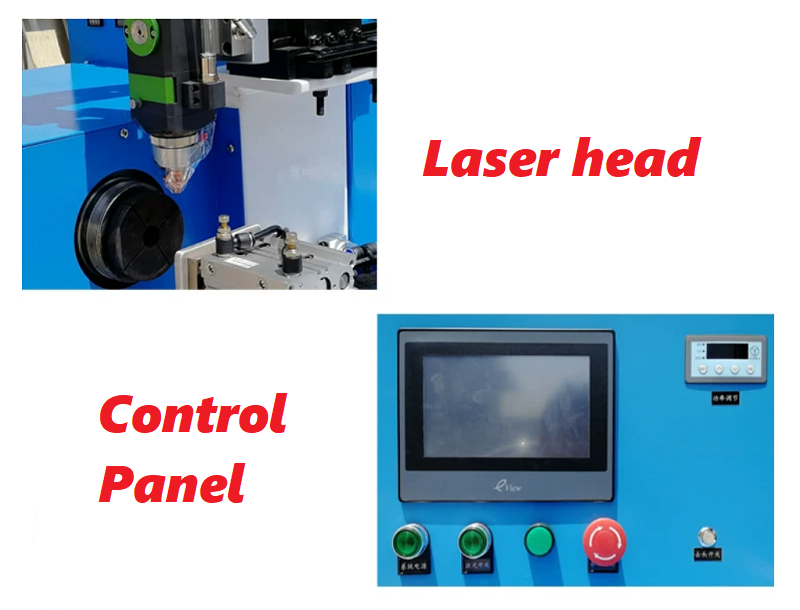

3. 1 cutting head
4. 1 pipe cutting machine body
5. 10 cutting nozzles and 10 protective lenses each
Packaging information:
Two wooden boxes.
Host wooden box: 2600 * 1120 * 1800mm, 650kg,
Water cooling machine wooden box: 600 * 600 * 1000mm, 80kg.
