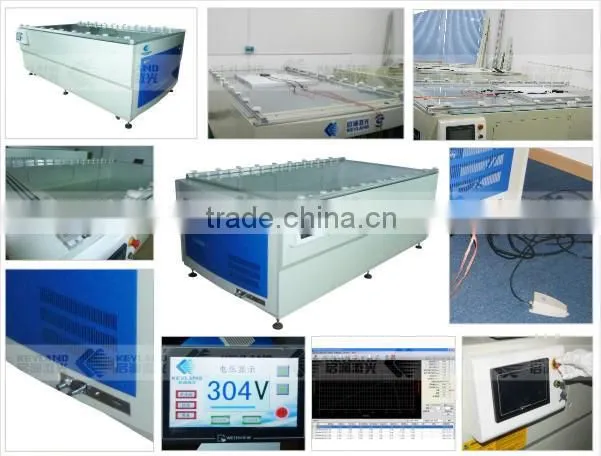

solar panel simulator
AM1.5 /5A /1000w/m2 / CE ISO / 2000*1200mm /5w~300w effective test area
function:
Mainly used in electrical performance auto test and result record of solar Mono-Si, Poly-Si or a-Si cell module.
specification:

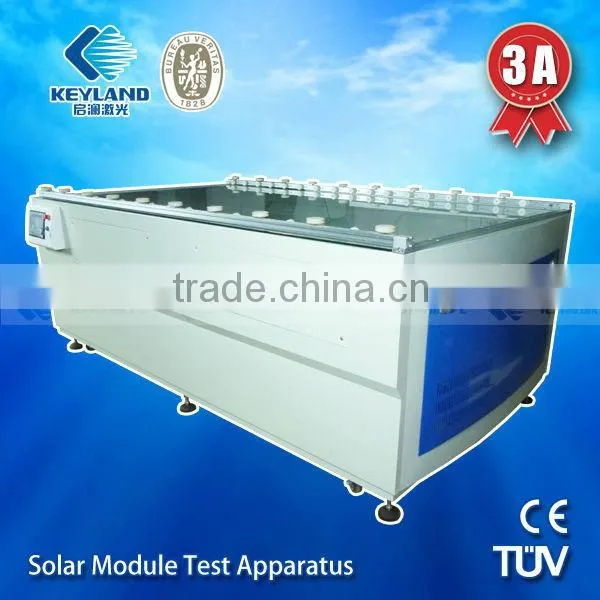

| Product Name | Solar Module Test Apparatus |
| Model | GTM-5A-2012 GTM-B-2012 |
| Lamp Spectrum | Compliance with IEC60904-9 and JISC8933 standard |
| Light Intensity | 100mW/C2(20-120mW/CM2 |
| Light intensity non-uninformity | ≤±2%[A] ≤±3% |
| Instability degree of irradiation | ≤±2%[A] ≤±2% |
| Test results consistenc | ≤±0.5%[A] ≤±1% |
| Test error of electrical properties | ≤1%[A] ≤2% |
| Single flash time | 10ms-30ms |
| Effective Test Range | 2000*1200nm /5W-300W |
| Measuring Voltage | 0-100V(Resolution 1mV) |
| Measuring current | 0-20A(Resolution 1mA) |
| Test Parameters | ISC,VOC,Pmax, Vm,Im,FF,EFF,Temp,Rs,Rsh |
| Options and Customizations |
Manual and automatical sliding tracks match the production line; special requests on customize 100ms pulse width 225-1300nm dual light source. |
features :
1.The equipment has applied for national patens;
2.A grade spectrum; A grade unevenness degree of irradiance; A grade instability degree of irradiation; A grade test error,A grade repeat test error;
3.Flash impulse continuous adjustable range 10-100ms
4.Four-line measurement; 14-bit 4-channel high-speed synchronous acquisition card, 8000 data collecting point;
5.10 parameters display;measured parameter display in tabulation and grahpical way;
6.Irradiance automatically compensating; temperature automatically compensating;
7.Voice counts off and prompts of flash time;counting prompts of flash time
8.24 consecutive hours of work, working life of imports Xenon lamp is 300,000 times of flash;
9.HMI and PLC intelligent control, touch screen control;
Actually, we are also good at designing and manufacturing TURNKEY SOLOUTION for your whole Solar cell, module production line.
Price advantages:
We are direct manufaturer,no middle man, you can get competitive solar simulator price .
Quality advantages:
More than10 years experience in solar laser industry, we are able to provide professional design machines.Free design of fixtures as customers required.
We are CE/ISO/compliant, you can get high quality product;
Service advantages:
We can ship the machinery to your door. All you need is providing us your address in the inquiry.
We are direct manufacturer ,you can get a satisfactory after sales service.
One year guarantee period for product quality.
Lifelong maintenance and spare parts supply.
Free training for machines installation and operation of the staffs.
Free samples marking of customer provided.
Standard plywood packaging
Delivery date:
5 days to 20 days after receiving payment.
Machines we supply:
Certificate:
Wendy offers faster and better services! Just click "send"now!
End customers ,distributors or agents are warmly welcome to contact us for getting more information about turnkey solution or single solar panel simulator .
