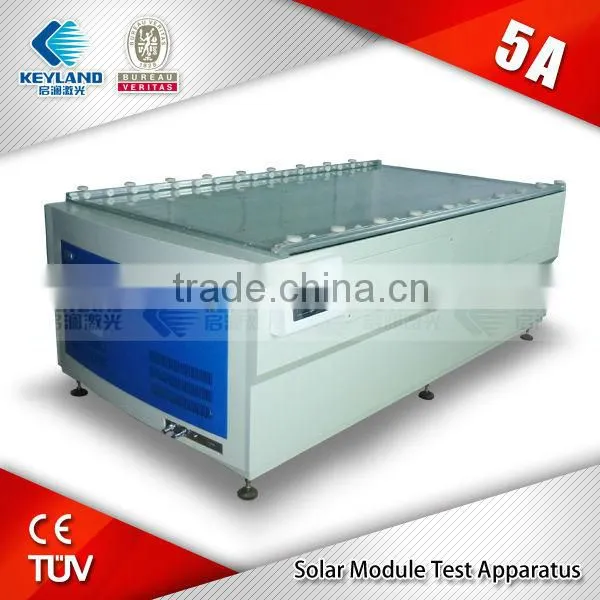

Made in China solar module testing machine
Customer questions: What is the application of the machine?
Reply: Specially apply to test and survey & record for mono-crystalline silicon, poly-crystalline silicon and kinds of solar module.
Customer questions: Can you show me the technical parameters?
| Type specifications | GTM-5A-2012 | GTC-B-2012 |
| Source parameter | ||
| Lamp spectrum | Conorm with IEC60904 and JISC8933 Standard | |
| Laser intensity | 100mw/cm²(20-120mw/cm², Continuously adjustable ) | |
| light intensity non-uniformity | ≤±2%[A] | ≤±3% |
| Test parameters | ||
| Instability degree of irradiation | ≤±2%[A] | ≤±2% |
| Test results Consistency | ≤±0.5%[A] | ≤±1% |
| Test error of electrical properities | ≤1% [A] | ≤2% |
| Single flash width | 10ms-30ms | |
| Measurement parameters | ||
| Effective test range | 2000*1200mm/5w-300w | |
| Measuring voltage | 0-100v | |
| Measuring current | 0-20A | |
| Test parameters | ISC, VOC, PMAX, VM, IM, FF, EFF, TEMP, RS, RSH | |
Customer questions: What about the package?
Reply: Customized standard wooden case
Customer qustions: what about your after-sale service?
My dear friend, you can trust our after-sale service !
1 The whole machine is guaranteed for one year, except man-made damage.
2 We can send our engineers to your place for operation training and machine maintenance.
3 We supply long time technical support.
4 You can have the vedio conversation with our engineers on the line when you need help.
After-sale service engineers abroad
Keyland laser is a manufacturer of industry laser machine and solar photovotatic equipment. We have 20 years' experience in R&D, production and sales industry laser equipment. Most of our product have passed CE and FDA, and we win the praise of domestic and overseas customers. Right now, we have many cooperation with with the domestic and overseas institutions and colleges.
Factory
CE Certificate
Alibaba Certificate
Show room
We also have other related solar cell production line equipment, do you need?
| Machine | Application |
| Solar cell test apparatus | Test single solar cell pieces |
| Fiber laser scribing machine | Solar cell pieces cutting and scribing |
| Welding station | Solar cell welding |
| Solar module EL tester | find out defects of solar cell module, defects of the welding process |
| Laminating machine | Solar cell lamination |
| Solar panel framing machine | For solar panel framing |
