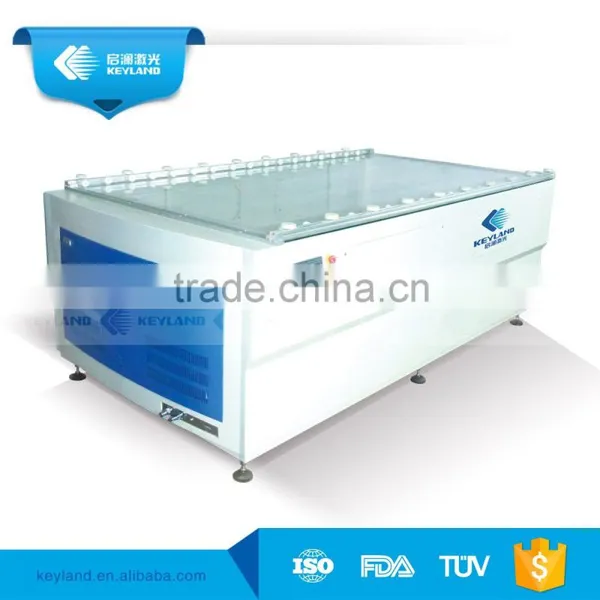

Flash Type Solar Simulator Class B for PV Panel

Flash Type Solar Simulator Class B for PV Panel thumbnail-1
Flash Type Solar Simulator Class B for PV Panel thumbnail-2
Flash Type Solar Simulator Class B for PV Panel thumbnail-3
Flash Type Solar Simulator Class B for PV Panel photo-1

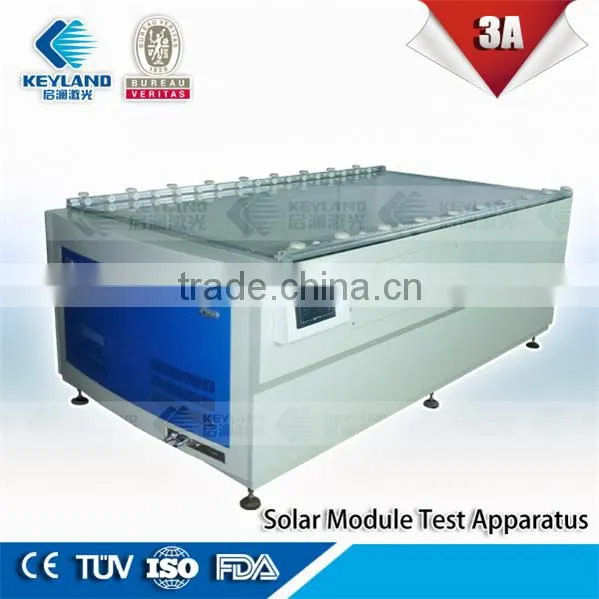

Flash Type Solar Simulator Class B for PV Panel photo-2
Flash Type Solar Simulator Class B for PV Panel photo-3
US$ 9,800 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KEYLAND
Model Number:
GTM-B
Contact Supplier Request Quote Chat Now
Jiangsu Keyland Laser Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/be appointed
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name KEYLAND
Model Number GTM-B
Power Electronic
Usage Other, Solar Panel Testing, PV Panel Testing / Measuring

Flash Type Solar Simulator Class B for PV Panel

Production Description

The appliance used for measuring the output performance conformity of a solar PV module is call flash test machine or sun simulator. During a flash test the PV module is exposed to a short (1ms to 30 ms), bright (100 mW per sq. cm) flash of light from a xenon filled arc lamp.

The output spectrum of this lamp is as close to the spectrum of the sun as possible. The output is collected by a computer and the data is compared to a exactly calibrated reference solar module.

The reference data is geared to the power output calibrated to standard solar irradiation. The results of the flash test are compared to the data specifications of the PV module type which - in abbreviated form - are printed on the label on the module's back.

Flash Type Solar Simulator Class B for PV Panel
  • Beyond Class AAA performance
  • Stable continuous working
  • 8000 data collecting points
  • Durable flash lamp
  • Voice prompt
  • Measuring data export
  • PLC system expansion
  • 4 wires measuring
  • Customizable for special panels
  • AM 1.5G standard test condition
  • Sunlight intensity 1000w/m2
Brand KEYLAND
Model GTM-AAA / GTM-B
Solar simulator Comply to IEC60904-9/JISC8933
Irradiance 100mW/cm²(20-120mW/cm² adjustable)
Ununiformity ≤±2% /  ≤±3%
Instability ≤±2%
Conformity ≤±0.5% /  ≤±1%
Error tolerance ≤1% /  ≤±2%
Pulse duration 10-30ms (100ms optional)
Irradiated area 1200x2000mm(48"x80"), 5W-300W
Testing voltage 0-100V (resolution 1mV)
Testing current 0-20A (resolution 1mA)
Testing parameters Isc, Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, Rsh
Optional accessories

1. Rails for automatic line

2. 100ms

3. Printer



Details show

Flash Type Solar Simulator Class B for PV PanelFlash Type Solar Simulator Class B for PV Panel



Software Interface

  • PLC system with touch screen
  • I.V curve
  • P.V curve
  • 10 parameters display
  • Data saving, exporting, printing
  • Tracking number of each solar panels

Flash Type Solar Simulator Class B for PV Panel

  Flash Type Solar Simulator Class B for PV Panel
Flash Type Solar Simulator Class B for PV Panel

Demo videos on Youtube

copy the link to a new tab to watch
About Keyland http://youtu.be/_WYRmRLJKuQ
Solar panel / solar module EL tester http://youtu.be/Dlddi2KaEJQ
Full auto framing machine http://youtu.be/SjD7RaaGs0Y
Solar cell laser cutting machine https://youtu.be/j8coMUMP5Qs
Solar cell testing and sorting http://youtu.be/R5b5yHnWsNA
Solar panel / solar module IV testing http://youtu.be/MuYI3yO-46Y
Inline EL + IV test http://youtu.be/FyLiqsK0zCI
Automatic solar panel testing http://youtu.be/KYLIq0_MR3o



Application

KEYLAND's AM105G Solar Simulator PV Panel Tester can test either crystalline or thin film modules and can be integrated into your fully automated module production line, or operated in manual mode.

In automatic mode, a programmed process sequence provides consistent module testing and offers optional automated loading and unloading of modules.

In manual mode, the controls can be operated as desired both in workshop and lab.

AM 1.5 Xenon Lamp Sun Simulator Solar Panel Tester mainly be used for measuring electric parameters of solar panels:

  • Isc: Short-circuit Current
  • Voc: Open-circuit Voltage
  • Pm: Maximum Power
  • Ipm: Maximum Power Current
  • Vpm: Maximum Power point Voltage
  • EFF: Battery Efficiency
  • FF: Filling Factor
  • Rs: Series Resistor
  • Rsh: Shunt Resistor
  • Temp: Temperature

Flash Type Solar Simulator Class B for PV Panel Flash Type Solar Simulator Class B for PV Panel

Flash Type Solar Simulator Class B for PV Panel



Shipping
  1. Door to door via DHL
  2. Sea freight
Payment
  1. PayPal
  2. Credit Card
  3. Wire Transfer (T/T)
  4. Alibaba Trade Assurance
Certification
Flash Type Solar Simulator Class B for PV Panel
Packing
After inspection the Sun Simulator AM1.5G are covered with film and then carefully packed in cartons.

Flash Type Solar Simulator Class B for PV Panel

Services
  • Remote support(online chat, email, video, remote control)
  • On-site installation, training & maintenance
  • 12 months warranty
  • Lifetime maintenance
Flash Type Solar Simulator Class B for PV Panel
