2016 New Model

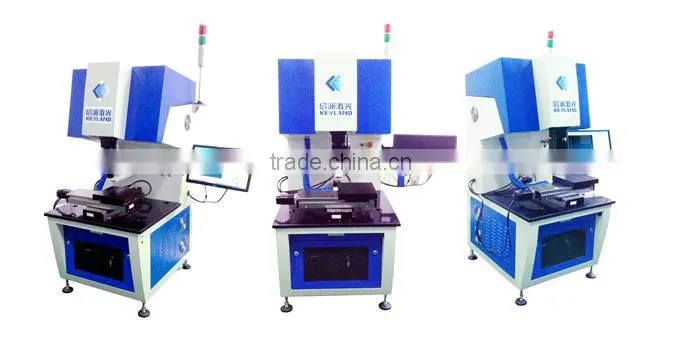

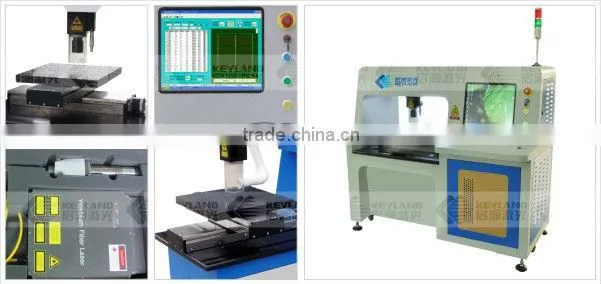

Keyland 20w Air Cooling Small Size Fiber Laser Scribing-Cell Machine without Maintenance
Laser power: 10W 20W Fiber Laser
Fiber Laser Scribing-Cell Machine is suitable for cutting,scribing of solar PV industry,just like mono crystalline silicon,poly crystalline silicon solar cell,amorphous ribbon silicon and silicon wafers.
Details of Fiber Laser Scribing-Cell Machine :
Model |
GSC-10F |GSC-20F |
Laser wavelength |
1064nm |
Laser power |
10W |20W |
Scribing/cutting width |
30μm |
Scribing /cutting speed |
0-300mm/s |
Scribing/cutting accuracy |
±10μm |
Working area |
350x350mm |
Temperature control precision |
0.5°C |
Working power |
380V(220V)/50Hz/3kvA or 110V/60Hz |
Working table |
negative pressure absorbing and dust elimination |
Cooling method |
forced air cooling |

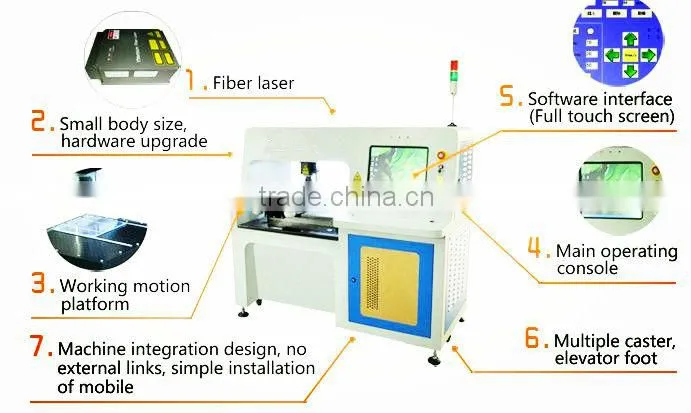

Our Fiber Laser Scribing-Cell Machine 's Characters:
1. Imports of fiber lasers, to adapt to the environment more strong, and the better beam quality(mode TEM00) ,kerf finer,more smooth edge
2. Small size Compact design for easy moving and handling,in line with moder business management 6s

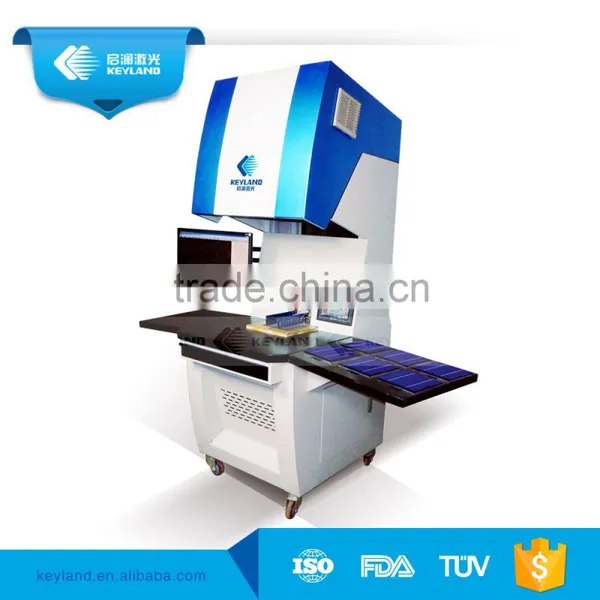

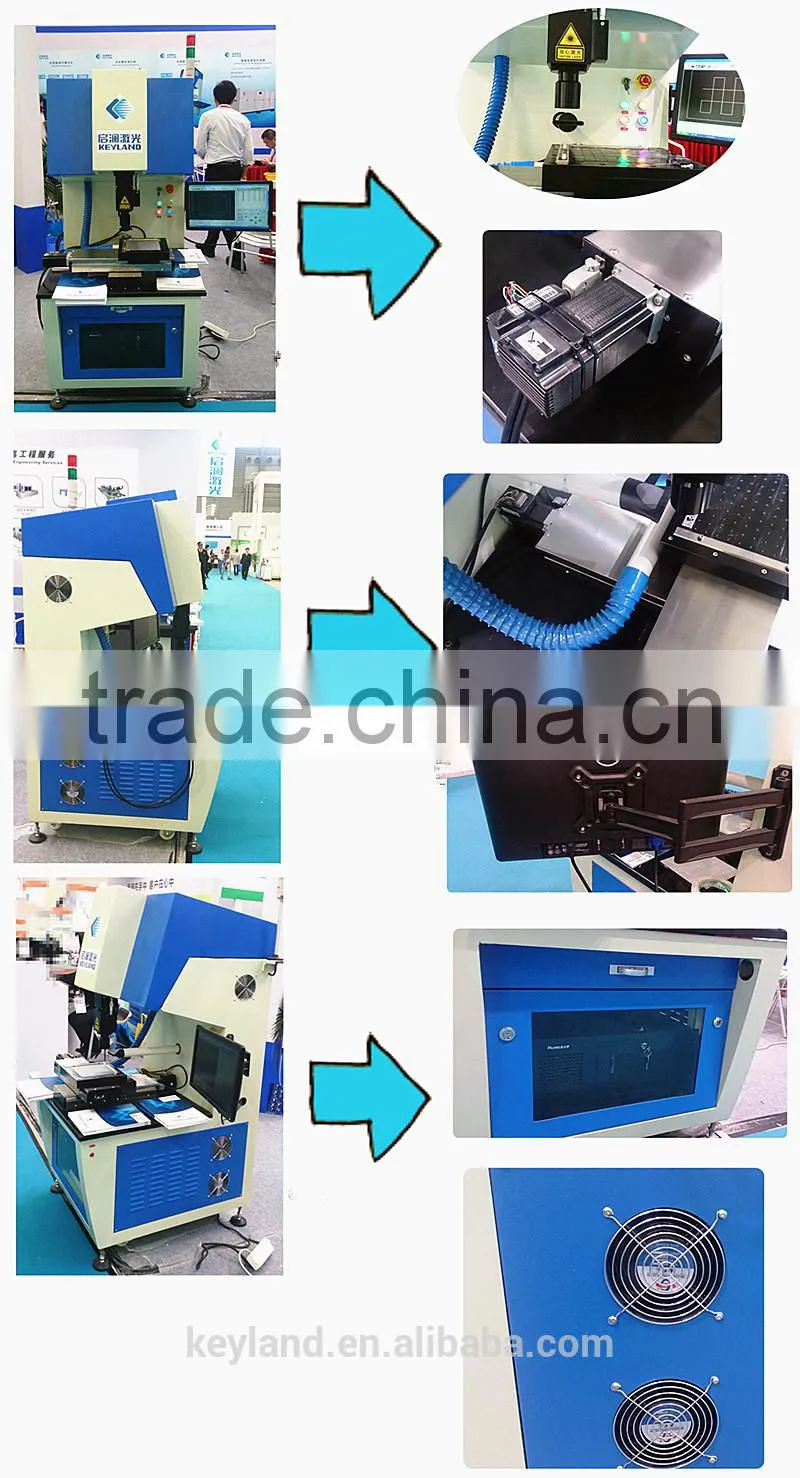

2015 New Model:

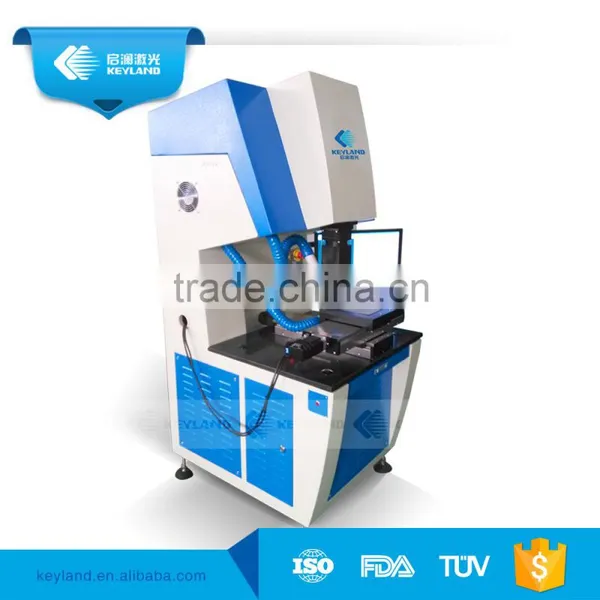

2014 Old Version
2.High efficiency electro-optical conversion.
3.High precision and Air cooling
4.Stable and continuous processing but lower operation cost
5.Easy&convenient operation
6.Maintenance-free (no damageable parts&consumable parts be replaced)
7.Touch screen control,servo motor for option
8.Automatic absoption and without foot pedal
9.Imported Core parts

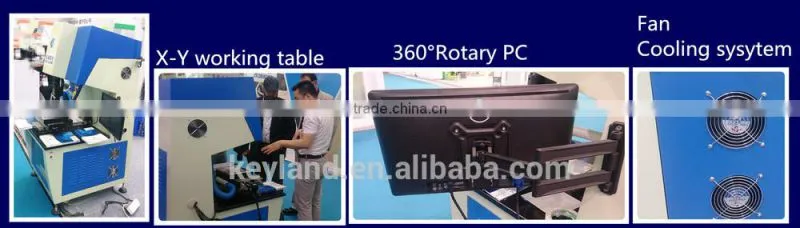

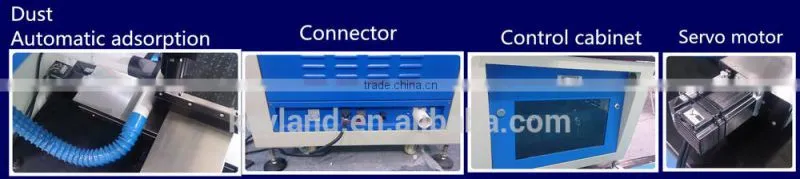

Details of Fiber Laser Scribing-Cell Machine :

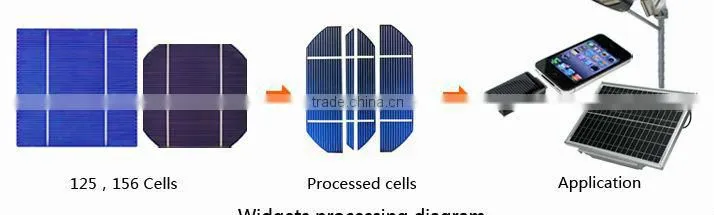

Scribing Cutting solar cell/wafer sample :
Broken cell is used for Solar lamp,Sun hat,Sun toy,solar air conditioning and etc.
Application of Fiber Laser Scribing-Cell Machine :
Our Package and shipping way
We manufacture
|
Fiber Laser Scribing-Cell Machine end-user /agent/dealer/distributor wanted Hope our competitive price, good quality,comprehensive service will help you expand market sucessful |
