Specifications
1.smaller size,longer life2.maintenance free 100000 hours,
3.no wearing parts
4.forced air cooling
5.touch screen

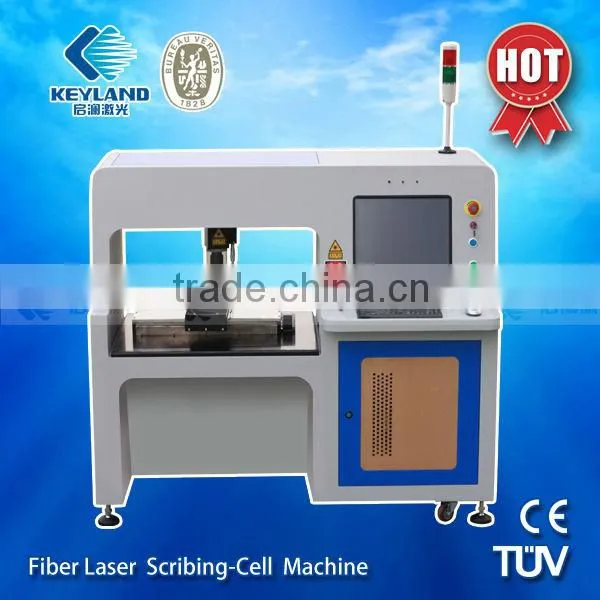

Fiber Solar laser scribing cell machine
Model:GSC-10F/GSC-20F
Application
The scribing processing(cutting,scribing) of solar PV industry,like monocrystalline silicon, poly crystilline silicon solar cells and silicon wafers.
Demo video of the GSC-20F on YouTube:
/watch?v=uB4mNCB3DU0
Technology characters
1.Fiber Laser and strong suitability for the environment
2.High efficiency electro-optical conversion.
3.High precision and Air cooling
4.Stable and continuous processing but lower operation cost
5.Easy&convenient operation
6.Maintenance-free for 50000hours(no damageable parts&consumable parts be replaced)
7.Better quality beam(Base mode TEM00) & thinner cutting gap and smoother edge
8.Software updated to 5.0
9.Touch screen control,servo motor for option
10.Automatic absoption and without foot pedal
11.Imported Core parts
Main technical parameters
Model |
GSC-10F |
GSC-20F |
Laser wave length |
1064nm |
|
Laser power |
10w |
20W |
scribing width |
30µm |
|
scribing speed |
120mm/s ~260mm/s |
|
scrining accuracy |
+ 10µm |
|
working area |
350X350mm |
|
working power |
220V/50Hz/1kVA |
|
working table |
negative pressure adsobing and dust elimination |
|
cooling method |
forced air cooling |
|
maintenance free time |
50,000hours |
|
Fiber Laser scribing machine structure:
Samples show
Solar Panel Production Line Equipment
Our Exhibition:
After-sale service:
- One year guarantee period for product quality. (man made damaged is negotiable).
- Lifelong maintenance and spare parts supply.
- Free design of fixtures as customers required.
- Free training for machines installation and operation of the staffs.
-
Free samples marking of customer provided.

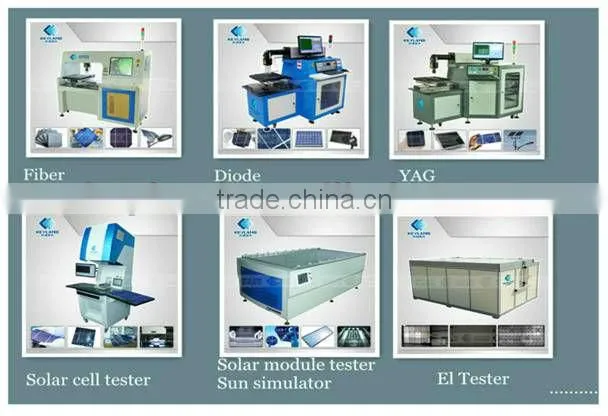

We supply:
Silicon wafer module packaging quipment series
YAG laser solar cell scribing machine
Diode pump laser solar cell scribing machine
Fiber laser solar cell scribing machine
Solar panel test equipment
EL Defect Detector
Laser marking machine series
Diode side pump laser marking machine
Diode end pump laser marking machine
Fiber Laser marking machine
CO2 Laser marking machine
Green laser marking machine
UV laser marking machine
Laser cutting machine series
YAG Metal laser cutting machine
Fiber Metal laser cutting machine
CO2 Non metal laser cutting machine
We are manufacture,so we can make sure the price and quality!
welcome to contact me, I will give you the optimal answer !
