High Speed Silicon Wafer Laser Scribing Machine With Fiber Laser
US$ 9,500 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Laser Type:
Fiber Laser
Applicable Material:
Other, silicon wafer, solar cell
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Cost 50Watt Diode Laser Solar Cell Laser Cutting MachineUS$ 9,500 - 10,000MOQ: 1 Set -
Water Cooling Servo Motor Solar Cell Laser Cutting MachineUS$ 9,500 - 10,000MOQ: 1 Set
-
Low Consumable 50watt Diode Solar Cell Laser CutterUS$ 9,500 - 10,000MOQ: 1 Set
-
Keyland Diode Laser Scribing Machine for Solar CellsUS$ 5,000 - 13,000MOQ: 1 Set
-
Tiny Cutting Kerf Silicon Wafer Laser Cutting MachineUS$ 9,500 - 10,000MOQ: 1 Set
Laser Type
Fiber Laser
Applicable Material
Other, silicon wafer, solar cell
CNC or Not
Yes
Control Software
KEYLAND Lasercut
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Cooling Mode
Water Cooling
Place of Origin
Jiangsu, China
Brand Name
KEYLAND
Model Number
GSC
Certification
CCC, CE, GS, ISO, SGS, UL
After-sales Service Provided
Engineers available to service machinery overseas
High Speed Silicon Wafer Laser Scribing Machine with Fiber Laser
Features

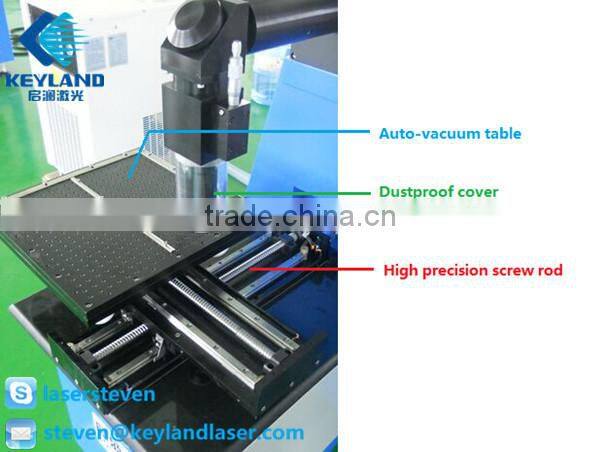

- Auto vacuum worktable.
- Lower cost compared to fiber laser.
- High precision motion system: Panasonic servo motor + screw rod.

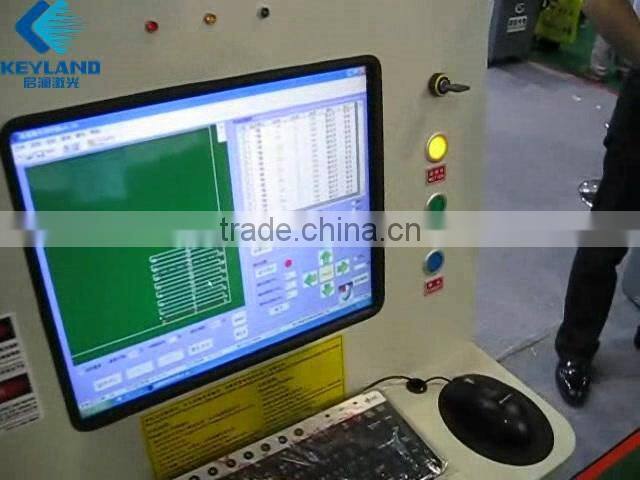

- Powerful software easy to operate with cutting path preview.
- Foot-switch control
Specs
| Model | GSC-10F | GSC-20F |
| Laser source | Fiber | |
| Output power | 10W | 20W |
| Wave length | 1064nm | |
| Scribing line width | 30μm | |
| Max scribing speed | 300mm/s | |
| reposition accuracy | ±10um | |
| Laser pulse frequency | 20kHz-100kHz adjustable | |
| The laser pulse width | 25ns | |
| Work table | Auto vacuum 350x350mm / 14"x14" | |
| Power supply | 220V, 50Hz, 1kVA | |
| Cooling way | Air cooling | |

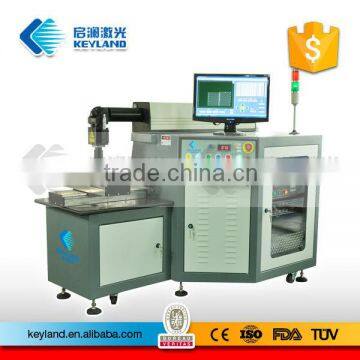

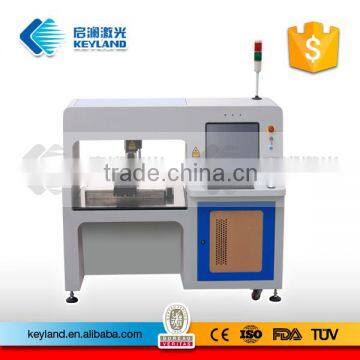

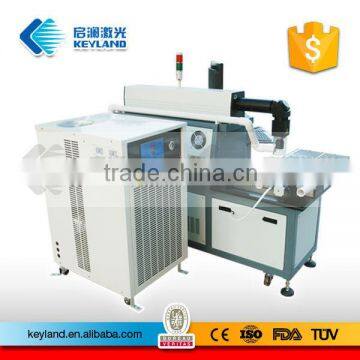

Machine Photos

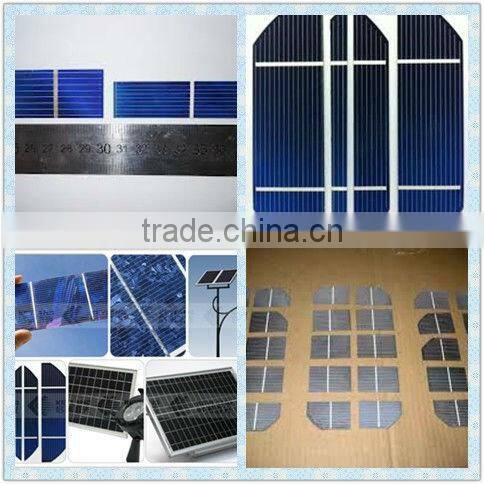

Work sample
DEMO VIDEOS
(copy the link to a new tab to watch)
| Solar cell scribing | http://youtu.be/j8coMUMP5Qs |
Company View
Why Buy From Us?
Doing business with KEYLAND is SAFE and BENEFICIAL.
- Alibaba Trade Assurance
- Onsite Checked by BV
- Golden Suppliers for Years
- CE, ISO, FDA approved products
- Warranty Up To 2 Years
- Full Operator Training & Support
How to Contact Us?
More details about our Silicon Wafer Laser Scribing Machine please contact us.
