Keyland 20W IPG/ Raycus Fiber Laser Wafer Cutting Machine

Keyland 20W Fiber Laser Scribing Cutting Slicing Solar Wafer Cells Machine

Optical fiber laser scriber / scribing machine , Solar cell laser cutter / cutting machine , Silicone wafer slicer , PV / Solar cell laser scribing machine , fiber laser scriber

Solar Laser Wafer Slicing Machine is suitable for cutting , scribing of solar PV industry,

Just like mono crystalline silicon, poly crystalline silicon solar cell,amorphous ribbon silicon and silicon wafers.

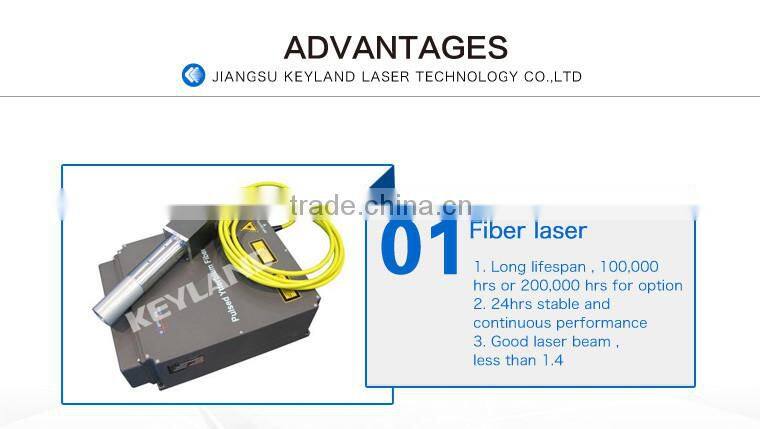

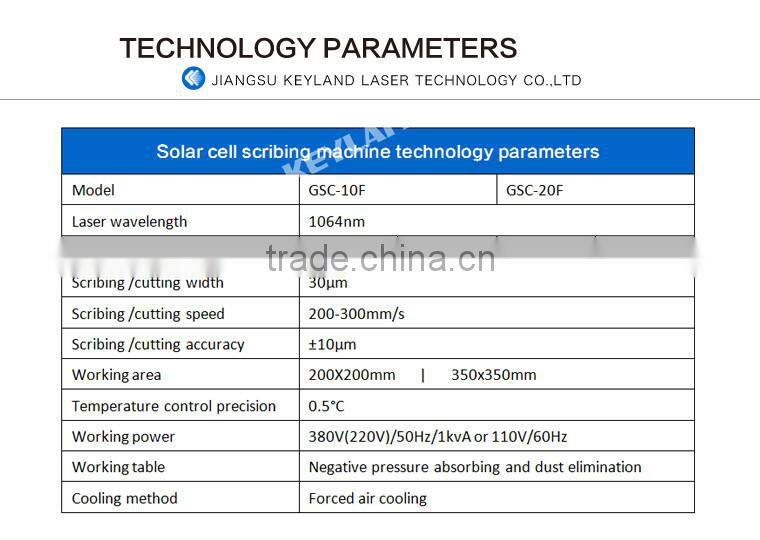

Laser power: 10W 20W Fiber Laser  (Germany IPG/China Raycus/USA SPI Fiber Laser )

Laser scribing scope : 200x200mm , 350x350mm

Scribing speed : 200mms - 300mms

Broken cell is used for Solar lamp,Sun hat,Sun toy,solar air conditioning and etc.

Our Laser Solar Cell Scribing Machine's Characters:

1. Small size Compact design for easy moving and handling,in line with moder business management 6s

2. High efficiency electro-optical conversion.

3. High precision and Air cooling

4. Stable and continuous processing but lower operation cost

5. Easy&convenient operation

6. Maintenance-free (no damageable parts&consumable parts be replaced)

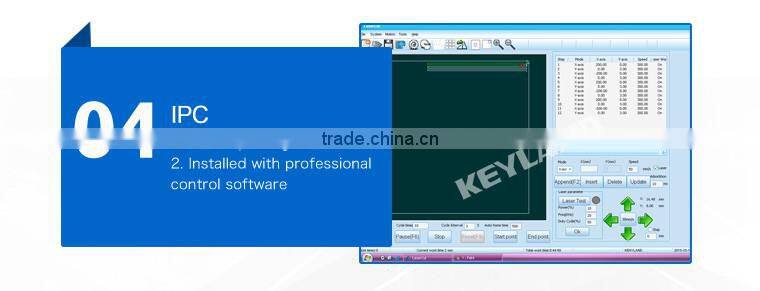

7. Touch screen control,servo motor for option

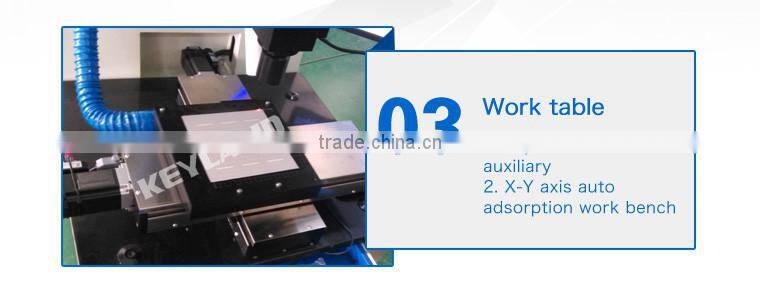

8. Automatic absoption and without foot pedal

9. Imported Core parts

--Operation of Solar Laser Wafer Slicing Machine by keyland laser
http://youtu.be/ijHVcpq0deA

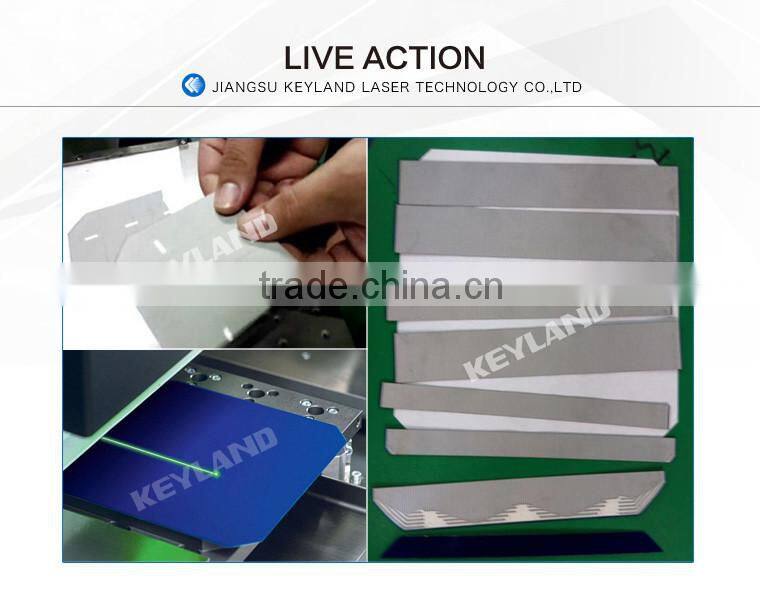

--Solar Laser Wafer Slicing Machine Processing
http://youtu.be/pAb8eW0Qby0

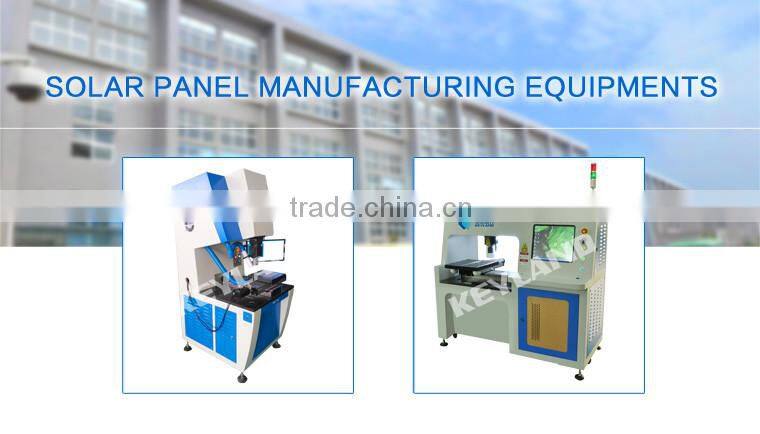

Keyland also manufacture solar panel making line equipments:

• Solar Cell Laser Scribing Machine ,  Solar Laser Wafer Slicing Machine
• Solar Cell Tester
• Solar Simulator for solar panel tester
• Solar El Defector
• Solar Framing machine
• Solar Laminator
• Solar  HIPOT tester

Your sampls can be sent to us for testing cutting by our solar Laser machine .

Then cutting performance will make you sure whether it is right  machine for your choose.

More detials will be talked , please leave a massage or contact us as follow :
