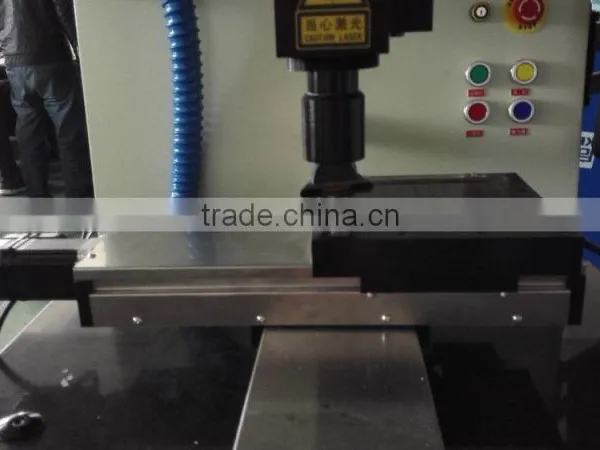

20W Fiber Laser For Solar Wafer Cutting Machine In PV Productin line (Free Installation)
Free Engineer Installation & Free Solar Service & Free Shipping Cost
Over 10 Years Solar Equipment Experience
Laser Solar Cell Cutting and Scribing Machine Using For Photovoltaic Filed, Like Mono-crystalline Silicon, Poly-Crystalline Sillicon, Amorphous Crystalline Sillicon, Solar Cell / Wafer.
Laser Cell Cutting & Scribing Machine Technical Date
Machine Model:
| Type Specification: | GSC-10F | GSC-20F |
Optical Parameter:
| Laser Wave Length | 1064 | |
| Laser Power | 10W | 20W |
Operating Parameter:
| Width Scribing | 30um |
| Scribing Speed | ≤300mm/s |
| Scribing Accuracy | ±10um |
Other Parameter:
| Working Area: | 200*200mm |
| Working Power: | 110V/220V ±10%/50Hz/60Hz/1kVA |
| Working Table: | Automatic Absorption and Vacuum |
| Cooling Way: | Forced Air Cooling |
Laser Solar Cell Cutting Machine Configuration:
--- Raycus Fiber Laser Resource
--- Hiwin Brand Guide Rail
--- Panasonic Brand Servo Moter
--- Dell Compurter
Fuctions And Features:
--- Notaional Patent Model, Imported Brand of Keyp Components
--- Fiber Laser, Stronger Environment Adaptability
--- Better Quality of Laser Beam (Base Mode TM00),Finer Scribing Seam, Smooth Edge For Cutting Scribing.
--- More Efficiency, Low Cost Of Operation, Samll & Compact Unit (Air Cooling)
---Narrow Laser Pulse Width, High Density of Energy, Faster Scribing Speed.
--- Easy to Operate, Automatic Adsorption Of solar Cell Without Foot Pedal
--- Maintenance Free to Longer Time, No Wearing Parts To be Replaced.
--- New Version 5.0 English Scribing Software, Centralized Control of Parameters, Modify & Save Parameters through software.
Our Solar Cell Cutting Machine Advantage:
--- Fristly, Compare with Other Supplier, Our Cutting Area is 200*200mm, Put one Piece solar Cell, More Qucik and Accurate, One Worker For One Machine.
--- Second, Our Light path is Vertical, Others is Right Angle, Our Veritical Laser Path more easy to Adjust.
--- Third, No Pedal anymore, Our own Software can control the Machine Automatic.
--- Fourth,our Solar Cell cutting machine can cutting Line, Circular, Chamfer,
--- Five,Lower Noise, have Emergency stop Bottom, have inner device for shaking.
--- Six, Computer can 360 º Rotate, Maintenance-Free, Small Power Consumption and Small Size.
1> The whold Machine Offer 12 Month Warranty With Free Cost.
2> 24 Online Service and 48 Hours Response the Question
3> Engineer Door to Door Service
4> Whole Life service for the machine, And offer spare parts.
