Specifications
LED sapphires laser scribing1.one button operation
2.automatic positioning system of CCD
3.low maintenance,perating cost

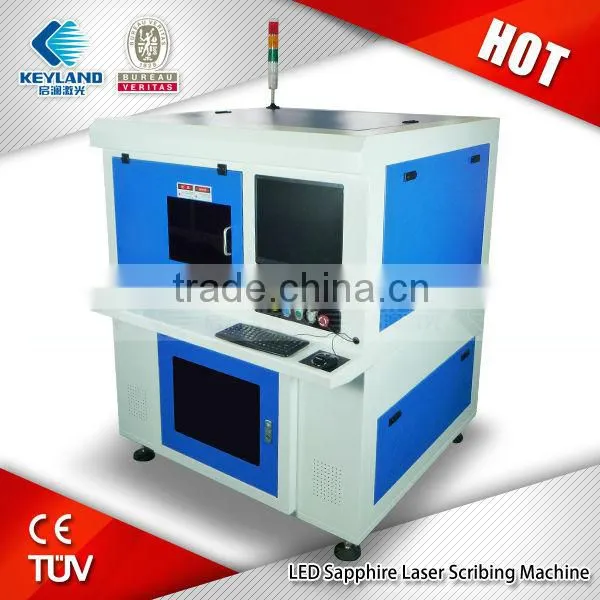

2014 CHAIN Keyland LED Sapphire Laser Scribing Machine/ laser scribing/ scribing tool/scribing in
The main technology parameters :
| Product Name | LED Sapphire Laser Scribing Machine |
| Processing type | UV cut |
| Laser Wavelength | 355nm |
| Type of Laser | semiconductor soild-state lasers |
| Repeatability of the X-Y-axis | ±0.5um |
| X-Y-axis positioning accuracy | ±0.1um |
| Z -axis positioning accuracy | 15arc-sec |
| The X-Y-axis | 200mm |
| Z-axis | 20mm |
| Cut to size | 2", 4" |
| Cutting depth | 20-30um±2um |
| Cutting Speed | 80-130mm/s |
| Cutting line width | 8um |
| Ambient Humidity | 20-25°C ±2°C |
| Absolute Humidity | 20%-60%(Non-condensing) |
| Compressed air | 0.5-0.8Mpa |
| Power | 220V15A/50-60Hz |
| Dimensions | 200* 1100* 1600mm |
| Machine Weight | 1000kg |
| Degree of automation | Fully atuomatic |
| Control system | PC control |
Applications :
Mainly used in the LED sapphire substrate wafer cutting
Technology characters :
1.One-button operaton,fully automatic operation of the dicing process;
2.High-precision linear motion platform, the marble pedestal bearing table,the focal length automatically adjusts the body; 3.Automatic positioning system of the CCD image recognition can be back cut tangent;
4.Anti-coarsening of the visual system;
5.Software to automatically identify the template,angle correction,automatic contour to find the contour correction
6.High reliability, low maintenance and operating c
7.The dicing process, the software automatically correct bar code reading, production statistics and other features.

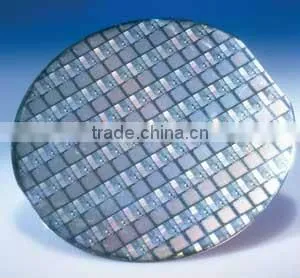

Samples show

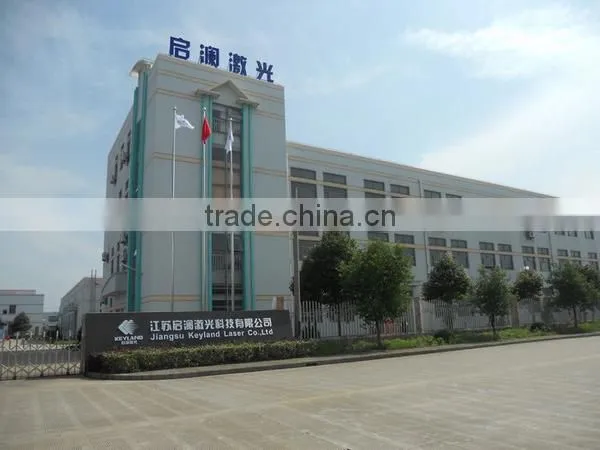

Company Introduction:
Research and Development

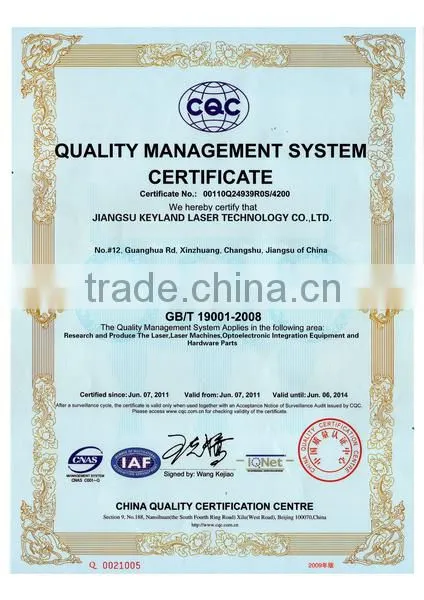

Certifications:
