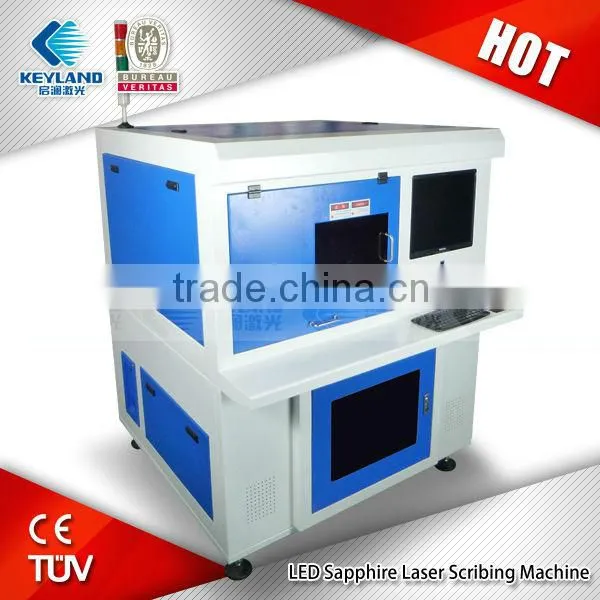

LED Sapphire Laser Scribing Machine (UV Cut)
US$ 10,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Laser Type:
Other, LED Sapphire Laser Scribing Machine
Applicable Material:
Metal, Plywood
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LED Sapphire UV Laser Cutting Machine For SaleUS$ 10,000 - 150,000MOQ: 1 Set -
LED Sapphire UV Laser Scribing Machine For SaleUS$ 10,000 - 150,000MOQ: 1 Set
-
Keyland UV Laser Cutting Sapphire Substrates for LED PriceUS$ 1 - 250,000MOQ: 1 Set
-
Keyland Laser Sapphire Cutting Machine for SaleUS$ 1,500 - 100,000MOQ: 1 Set
-
Keyland Sapphire Mobile Phone Screen Laser Cutting MachineUS$ 1,500 - 100,000MOQ: 1 Set
Laser Type
Other, LED Sapphire Laser Scribing Machine
Applicable Material
Metal, Plywood
CNC or Not
Yes
Control Software
PC
Graphic Format Supported
AI, BMP, DXF, PLT
Cooling Mode
Other, Full Automatic
Place of Origin
Jiangsu, China
Brand Name
Keyland
Model Number
LED Sapphire Laser Scribing Machine
Certification
CE, ISO, Other, CE, ISO, TUV
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
LED Wafer High Precision UV Laser Scribing Machine1 Fully automatic operation
2 One button work
3.high reliability
LED Sapphire Laser Scribing Machine
The Main Technology Parameters
| Product Name | LED Sapphire Laser Scribing Machine | |||
| Processing type | UV cut | |||
| Laser Wavelength | 355nm | |||
| Type of Laser | semiconductor soild-state lasers | |||
| Repeatability of the X-Y-axis | ≤±0.5um | |||
| X-Y-axis positioning accuracy | ≤±0.1um | |||
| Z-axis positioning accuracy | 15arc-sec | |||
| The X-Y-axis | 200mm | |||
| Z-axis | 20mm | |||
| Cut to size | 2", 4" | |||
| Cutting depth | 20-30um±2um | |||
| Cutting Speed | 80-130mm/s | |||
| Cutting line width | 8um | |||
| Ambient Humidity | 20-25°C ±2°C | |||
| Absolute Humidity | 20%-60%(Non-condensing) | |||
| Compressed air | 0.5-0.8Mpa | |||
| Power | 220V15A/50-60Hz | |||
| Dimensions | 200* 1100* 1600mm | |||
| Machine Weight | 1000kg | |||
| Degree of automation | Fully atuomatic | |||
| Control system | PC control | |||
Applications :
Mainly used in the LED sapphire substrate wafer cutting
Technology characters :
1.One-button operaton,fully automatic operation of the dicing process;
2.High-precision linear motion platform, the marble pedestal bearing table,the focal length automatically adjusts the body; 3.Automatic positioning system of the CCD image recognition can be back cut tangent;
4.Anti-coarsening of the visual system;
5.Software to automatically identify the template,angle correction,automatic contour to find the contour correction
6.High reliability, low maintenance and operating costs;
7.The dicing process, the software automatically correct bar code reading, production statistics and other features.

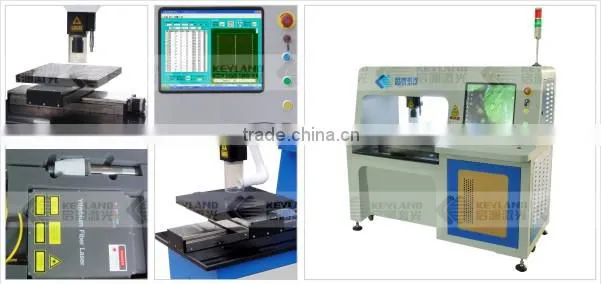

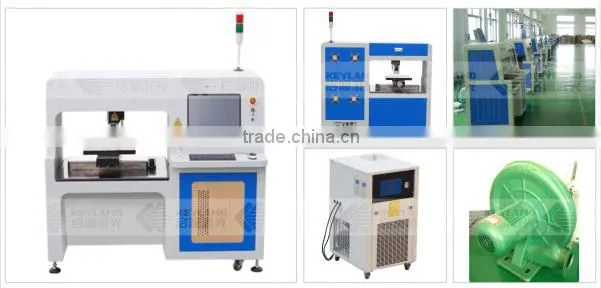

Sample Show:
