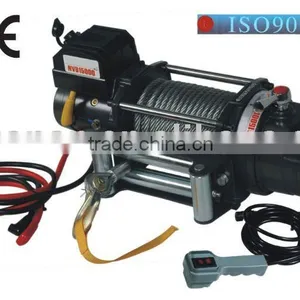

Truck Winch--CE Approved

Name: Truck Winch--CE Approved
Brand: XueShen
SKU: 119218443
Availability: InStock

US$ 430 - 460 MOQ: 30 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

XueShen

Model Number:

NVD15000

Jinhua Huanan Machinery Mfg. Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

NingBo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name XueShen

Model Number NVD15000

Power Source Electric

Application Auto

Capacity 15000 LBS

Specifications

ISO9000 certificated company.
CE certificated product.
Off road truck winch 15000LBS.

Rated line pull:15000lbs(6810kgs)single line
Motor(Series wound): DC 12V:Input 7.2hp/5.4kW, Output 3.4hp/2.5kW
DC 24V:Input 8.2hp/6.0kW, Output 4.0hp/3.0kW
Gear train:5 stage gear-driven
Gear ratio:520:1
Clutch:Sliding ring gear
Braking action:Automatic in the ratchet wheel
Fairlead:4-way roller fairlead
Wire rope:29/64"×92′(11.5mm×28m)
Drum size:3.46"×8.82"(88mm×224mm)
Dimensions:25.35"×8.46"×11.34"(644mm×215mm×288mm)
Bolt pattern:10"×4.5"(254mm×114.3mm)/10"×6.5"(254mm×165.1mm)
Net Weight:154lbs(70kgs)
12V DC Line speed and motor current (first layer)
Line pull(Lbs/Kgs)	Line speed(FPM/MPM)	Motor current(Amps)
0/0	10.8/3.3	70
4000/1816	8.8/2.7	150
8000/3632	5.9/1.8	230
12000/5448	4.6/1.4	290
15000/6810	4.2/1.3	330

24V DC Line speed and motor current (first layer)
Line pull(Lbs/Kgs)	Line speed(FPM/MPM)	Motor current(Amps)
0/0	9.8/3.0	50
4000/1816	7.9/2.4	90
8000/3632	5.9/1.8	135
12000/5448	5.6/1.7	165
15000/6810	4.9/1.5	195

Line pull and cable capacity
Layer of cable	Rated line pull per layer(Lbs/Kgs)	Cable capacity per layer(Ft/M)
	Rated line pull per layer(Lbs/Kgs)	Cable capacity per layer(Ft/M)
1	15000/6810	19.7/6.0
2	12183/5531	42.6/13
3	10257/4657	78.7/24
4	8857/4021	92/28
