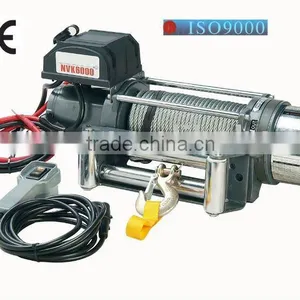

ATV winch-electric winch
- 1000 Piece / Pieces per Month
- NingBo
- T/T
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | XueShen | Model Number: | NVK6000 |
| Power Source: | Electric | Application: | Auto | Capacity: | 6000 LBS |
Packaging Details
styrofoam and standard exported carton.
Product Description
Specifications
ISO9000 certificated company.CE certificate
Off road SUV/ATV winch 6000LBS.
| Rated line pull:6000lbs(2724kgs)single line | ||
| Motor(permanent magnet): DC 12V:Input 4.9hp/3.6kW, Output 1.7hp/1.3kW | ||
| DC 24V:Input 6.2hp/4.6kW, Output 2.4hp/1.8kW | ||
| Gear train:3 stage planetary | ||
| Gear ratio:294:1(12V) 210:1(24V) | ||
| Clutch:Sliding ring gear | ||
| Braking action:Automatic in the drum | ||
| Fairlead:4-way roller fairlead | ||
| Wire rope:9/32"×105'(7.2mm×32m) | ||
| Drum size:2.48"×9"(63mm×228mm) | ||
| Dimensions:21.2"×7.1"×9.8"(538mm×180mm×250mm) | ||
| Bolt pattern:10"×4.5"(254mm×114.3mm) | ||
| Net Weight:58.8lbs(26.68kgs) | ||
| 12V DC Line speed and motor current (first layer) | ||
| Line pull(Lbs/Kgs) | Line speed(FPM/MPM) | Motor current(Amps) |
| 0/0 | 18/5.5 | 80 |
| 2000/908 | 10.5/3.2 | 180 |
| 4000/1816 | 8.2/2.5 | 240 |
| 6000/2724 | 4.9/1.5 | 300 |
| 24V DC Line speed and motor current (first layer) | ||
| Line pull(Lbs/Kgs) | Line speed(FPM/MPM) | Motor current(Amps) |
| 0/0 | 21/6.4 | 50 |
| 2000/908 | 12.1/3.7 | 115 |
| 4000/1816 | 9.6/3.0 | 150 |
| 6000/2724 | 5.9/1.8 | 190 |
| Line pull and cable capacity | ||
| Layer of cable | Rated line pull per layer(Lbs/Kgs) | Cable capacity per layer(Ft/M) |
| 1 | 6000/2724 | 21.3/6.5 |
| 2 | 5000/2270 | 47.5/14.5 |
| 3 | 4200/1907 | 77/23.5 |
Company Profile
Jinhua Huanan Machinery Mfg. Co., Ltd. & Jinhua Huanan Auto Part Co., Ltd. are two large-sized companies and we are specialized in manufacturing snow chains, agricultural implements and other car accessories since 1992. We are located in the Economy Develop Zone of Jinhua City which covers an area of 30,000 square meters and have more than 200 employees.
We have strong production ability of more than 50,000 pairs per month. Our main products include passenger chains, truck chains, tractor chains, ATV chains, stud chains, cable chains and forest machine chains. Most of our products sell well in Europe, the USA and Asia with a good reputation. Our company has passed the evaluation of ISO9000 quality management system and obtained TUV/GS certificate since 1999.
Most of our clients are cooperated for more than 10 years and we assure them the quality and delivery. We will consider every client as our best partner and serve you better.
