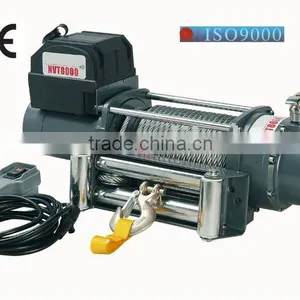

Help CenterSUV Winch--CE Approved
US$ 230 - 260
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
XueShen
Model Number:
NVT8000
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
XueShen
Model Number
NVT8000
Power Source
Electric
Application
Auto
Capacity
8000 LBS
Specifications
ISO9000 certificated company.CE certificated product.
Off road SUV/ATV winch 8000LBS.
| Rated line pull:8000lbs(3632kgs)single line | ||
| Motor(Series wound): DC 12V with 2.3hp/1.7kW output | ||
| Gear train:3 stage gear-driven | ||
| Gear ratio:196.6:1 | ||
| Clutch:Sliding ring gear | ||
| Braking action:Automatic in the ratchet wheel | ||
| Fairlead:4-way roller fairlead | ||
| Wire rope:5/16"×92′(8.1mm×29m) | ||
| Drum size:22.5"×8.8"(63mm×224mm) | ||
| Dimensions:22"×7.1"×10.2"(558mm×158mm×260mm) | ||
| Bolt pattern:10"×4.5"(254mm×114.3mm) | ||
| Net Weight:89.21bs(40.5kgs) | ||
| Line speed and motor current (first layer) | ||
| Line pull(Lbs/Kgs) | Line speed(FPM/MPM) | Motor current(Amps) |
| 0/0 | 14.1/4.3 | 90 |
| 2000/908 | 12.2/3.5 | 160 |
| 4000/1816 | 9.8/3.0 | 220 |
| 6000/2724 | 8.2/2.5 | 280 |
| 8000/3632 | 4.9/1.5 | 350 |
| Line pull and cable capacity | ||
| Layer of cable | Rated line pull per layer(Lbs/Kgs) | Cable capacity per layer(Ft/M) |
| 1 | 8000/3632 | 20.3/6.2 |
| 2 | 6515/2958 | 44.2/13.5 |
| 3 | 5496/2495 | 71.6/21.8 |
| 4 | 4752/2157 | 92/29 |
