China Yutong Tow Truck Wrecker/ Recovery Truck Vehicle for Sale

China Yutong Tow Truck Wrecker/ Recovery Truck Vehicle for Sale photo-1
China Yutong Tow Truck Wrecker/ Recovery Truck Vehicle for Sale photo-2
China Yutong Tow Truck Wrecker/ Recovery Truck Vehicle for Sale photo-3
China Yutong Tow Truck Wrecker/ Recovery Truck Vehicle for Sale photo-4
China Yutong Tow Truck Wrecker/ Recovery Truck Vehicle for Sale photo-5

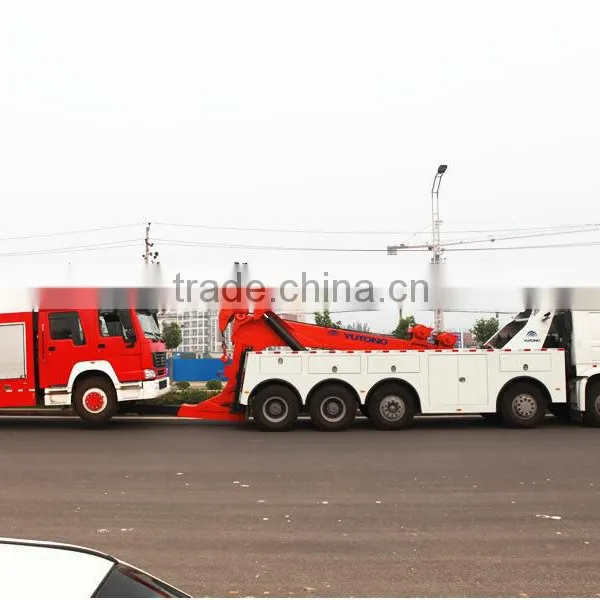

China Yutong Tow Truck Wrecker/ Recovery Truck Vehicle for Sale photo-6
US$ 60,000 - 150,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Fuel Type:
Diesel
Emission Standard:
Euro 4
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Tianjin port Lianyungang port Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Fuel Type Diesel
Emission Standard Euro 4
Condition New
Transmission Type Automatic
Dimensions (L x W x H) (mm) 8810*2500*3290
Place of Origin Henan, China
Brand Name YUTONG
Model Number YTZ5197TQZ40EN
Product Description

Product Profile

Yutong Tow Truck has a basic series from 19t to 50t, including models of split type, integrated type and flatbed type etc.. The products are of advanced technology, reliable quality and focusing on humanized design, which can meet the requirements of different types of rescue operation safely and efficiently and without any damage.
Since lunching, Yutong tow trucks have been highly appraised by the majority of users and successfully entered the international market, realizing trucks exporting in batches.

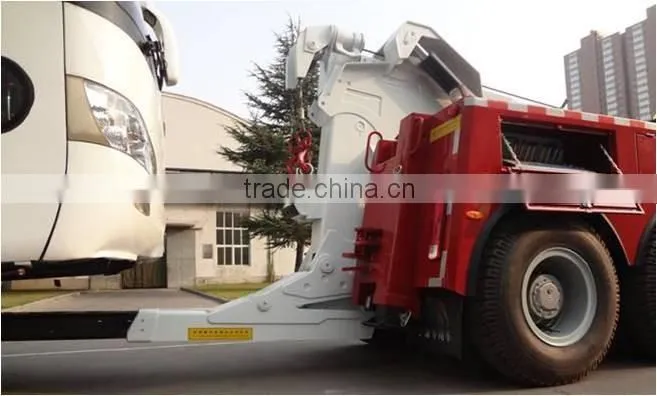

 Meanwhile, through cooperation, Yutong Bus Co., Ltd developed a tow truck (city bus rescue vehicle) for bus rescue which is equipped with extended support arms and L-shaped tyre holding tools. So far it's the best solution for bus rescue.
 Main configurations of YTZ5197TQZ40EN
Engine model
WD615.95C
Rated speed of engine (rpm)
1900
Chassis model
ZZ1167N5618W
Maximum torque (N.m)
1490(1200~1500rpm)
Rated power of engine (kw/hp)
249/340
Clutch
Single-sheet dry type, pull-type diaphragm clutch φ430
Transmission
HW15710
Departure angle (°)
Approach angle (°)
16
Minimum ground clearance (m)
≥260
Maximum turning diameter (m)
≤23
Maximum gradeability (%)
≥20
Maximum vehicle speed (km/h)
90
Kerb mass of entire vehicle (Kg)
14500

Main Features

1) Superior performance and reliable quality: YTZ5197TQZ40EN road-block removal truck adopts integrated type structure. According to CAE analysis, its working devices have reasonable and matching design and reliable operating performance. Chassis, manufactured by China National Heavy Duty Truck Group Co., Ltd (a famous brand in China), has strong bearing capacity and especially its adaptability is a more competitive advantage as the road-block removal truck has a outstanding feature that is load transfer.

2) High safety:Adopting dual-circuit braking system and auxiliary engine braking system, the vehicle has strong road adaptability. All of the hydraulic systems of working devices adopt both domestic and foreign brands. Both of luffing cylinder and support arm swing cylinder are equipped with safe and reliable balancing valves, greatly improving the safety performance of the working devices.

3) Reliability and durability:All moving parts of working devices are equipped with self-lubricating bearings. Especially, the crossarm position of the support arm, which bears larger force and acts frequently, is equipped with enhanced self-lubricating bearing besides retaining the lubricating oil channel. This greatly improves the service life, but also reduces the maintenance frequency.

4) Humanized design:The thin-type extended support arms of this vehicle, which are equipped mainly for the public traffic vehicles, adopt high-strength steel design, greatly enhancing the strength performance and effectively solving the problem of low chassis of public traffic vehicles.

Certifications
Detailed Images

Machine Parts

Name: tow truck-upper part

1.Adopts hoisting integrated structure type, enabling stronger work capacity

2.The first in the industry to adopt waterproof hydraulic tank (standard), which improves the service life of hydraulic oil
3.the driving arm is extended, enabling stronger under-hoisting capacity


Main Features

Name: tow truck-accessories
1.Standard: L-shaped tyre holding tool, bundling belt, tough towing bar, strobe light, work lamp, toolbox lamp


2.Optional: Long-row warning light, supporting fork, safety chain, wired remote control device and other configurations required by users

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Professional technical support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Nude, with waxing before shipment by roro/bulk ship ,  in container or according to your requirements
